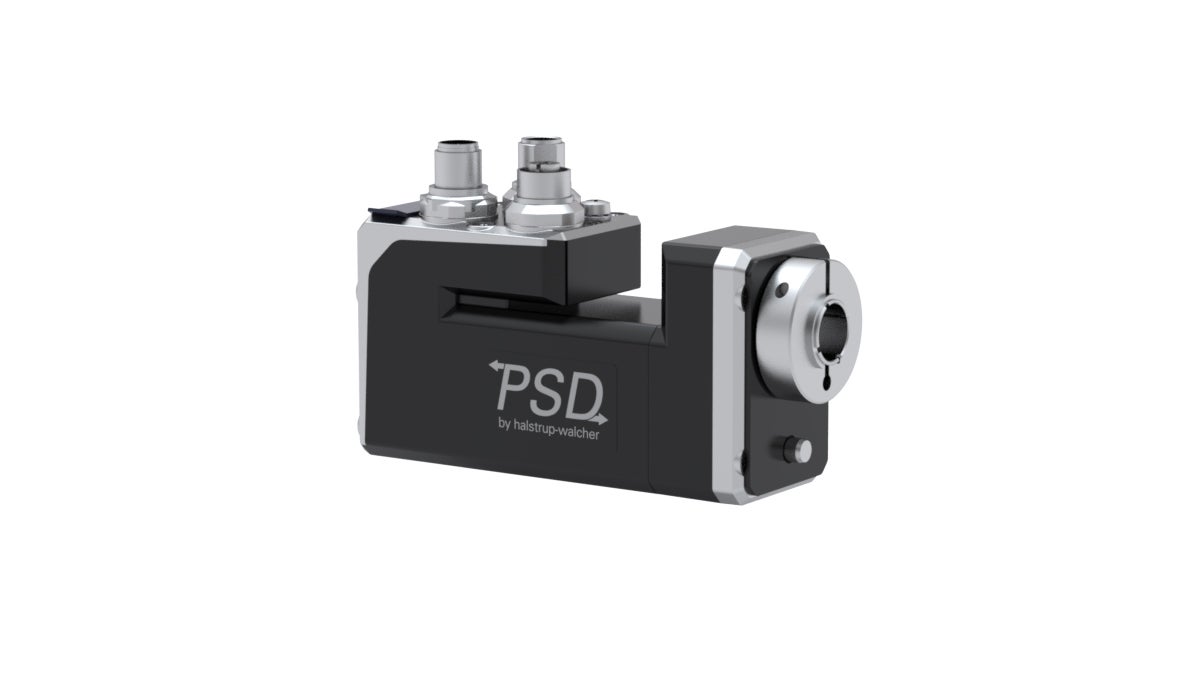

PSD 40 - Shaft 8 mm hollow
• Software features: spindle compensation drive, increased breakaway performance, synchronized run
• Software modules for IO-Link: changeover of parameter set, target speed in process data and modulo function
• Protection of internal electronics against manual operation
• Space-saving, compact design
• Optional rotatable actuator housing
• Galvanically separated supply voltages between control and motor and bus
• Precise position feedback thanks to an absolute measurement system without battery
• Optional gearbox for more torque
• Address may be set using the bus or an address switch (not for IO-Link)
• Status LEDs visible from the outside

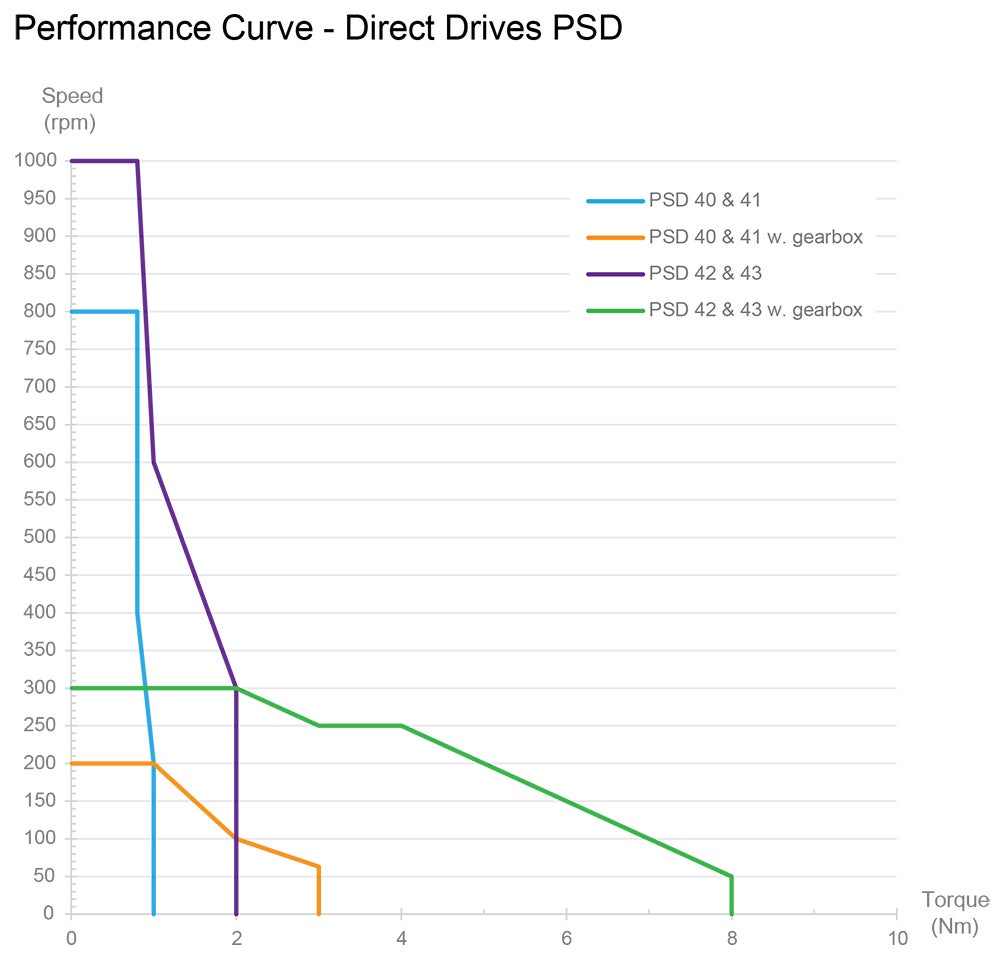

Self-holding torque below at approx. 60 mA supply current and 0.5 A phase current, currentless 0 Nm.
Dimensions in mm.
See link Manual(s) for documentation and software.
Contact us for CAD-files.
Read more
• Software modules for IO-Link: changeover of parameter set, target speed in process data and modulo function
• Protection of internal electronics against manual operation
• Space-saving, compact design
• Optional rotatable actuator housing
• Galvanically separated supply voltages between control and motor and bus
• Precise position feedback thanks to an absolute measurement system without battery
• Optional gearbox for more torque
• Address may be set using the bus or an address switch (not for IO-Link)
• Status LEDs visible from the outside
Self-holding torque below at approx. 60 mA supply current and 0.5 A phase current, currentless 0 Nm.
Dimensions in mm.
See link Manual(s) for documentation and software.
Contact us for CAD-files.
Product Information
Type: Horizontal
Nominal Torque (Nm): 0.8; 3
Nominal Speed (rpm): 50; 200
Nominal Voltage (V DC): 24 (± 10 %)
Nominal Current (A): 2.0
Output Shaft (mm): 8
Output Shaft Type: Hollow
Rotation Shaft / Housing: Direct or 0°; 90°; 180°; 270°
BUS Communication: Can Open (CA); IO-Link (IO); ProfiNet (PN); EtherCat (EC); Ethernet IP (EI)
Electrical connection: 0: Standard
Protection Class: IP50; IP65
Motor: Stepper motor
Supply Voltage: 24 V DC ± 10 % galvanically separated between motor and control
Measurement System: Absolute without battery
Accuracy: "±0.7 ° for versions with gearbox; ± 1.8 ° for versions without gearbox"
Intermittence: Start-up duration up to 50%
Manual Adjustment: No
Brake: No
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Nominal Torque (Nm) | Nominal Speed (rpm) | Nominal Current (A) | Self-holding Torque (Nm) | Max. Speed (rpm) | Positioning Range (rot.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 0.8 | 200 | 2.0 | 0.4 | 500 | 4026 | ||||
|
|
|
2 | 3 | 50 | 2.0 | 1.5 | 200 | 986 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-

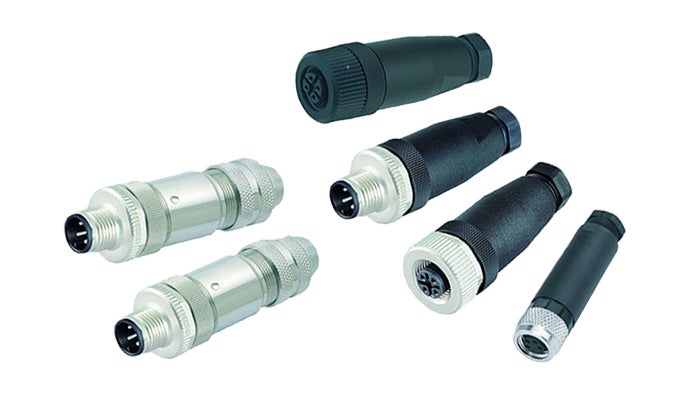

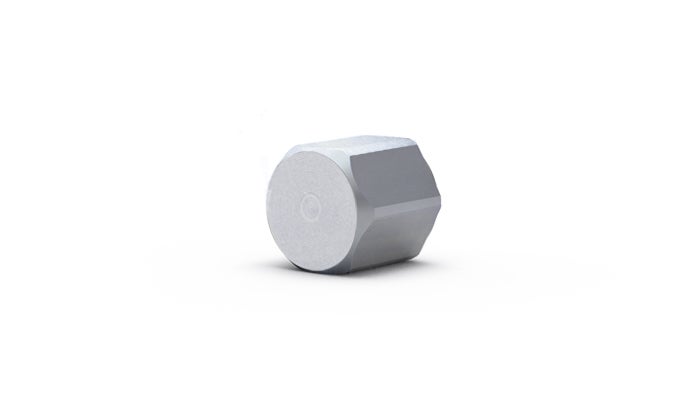

Screw cap
To cover the unused BUS connection -

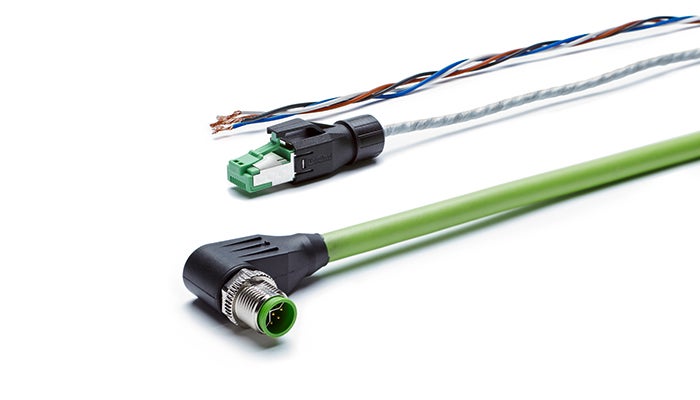

Hybrid cable, angled
With plug for version Y-coded, angled -

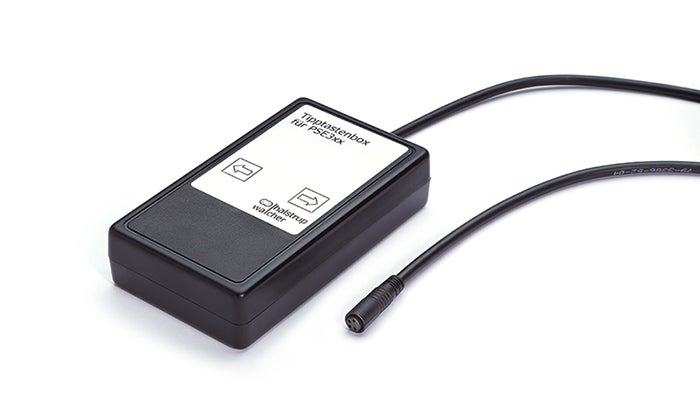

Jog key box
For PSE and PSS systems -

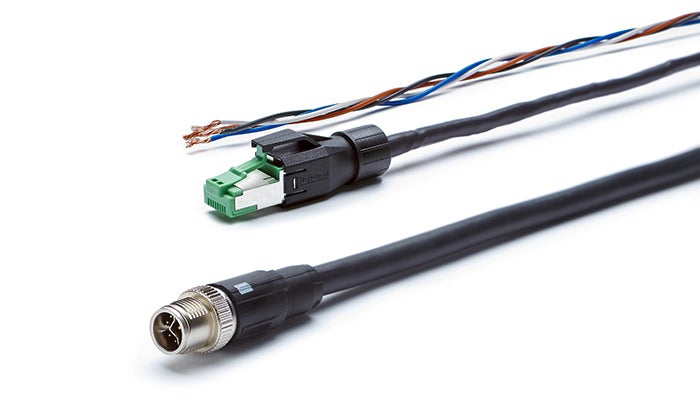

Hybrid cable, straight
With plug for version Y-coded, straight
