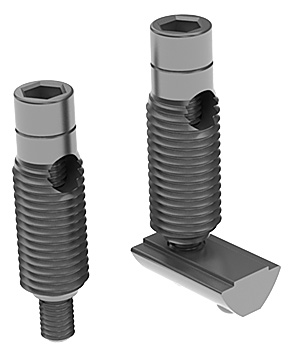

Automatic Connectors
The set of automatic connectors mount quickly and easily because there is no need for modifying the
profiles. Universal force-fit link for all profiles from the same series plus the option of moving them afterwards because the connectors are fitted in a single profile only. There is no restriction on installing them in existing constructions later.
Note: We recommend that you install them in pairs – this is also what the stress data refers to.
Read more
profiles. Universal force-fit link for all profiles from the same series plus the option of moving them afterwards because the connectors are fitted in a single profile only. There is no restriction on installing them in existing constructions later.
Note: We recommend that you install them in pairs – this is also what the stress data refers to.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Material | M (Nm) | F (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Automatic connector including slot nut with guide step | 20 - Slot 5 | Galvanised steel | 12.5 | 350 | ||||
|
|
|
2 | Automatic connector including slot nut with guide step | 20 - Slot 5 | Stainless steel | 20 | 250 | ||||
|
|
|
1 | Automatic connector including slot nut with guide step | 30 - Slot 6 | Galvanised steel | 40 | 600 | ||||
|
|
|
2 | Automatic connector including slot nut with guide step | 30 - Slot 6 | Stainless steel | 30 | 400 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
