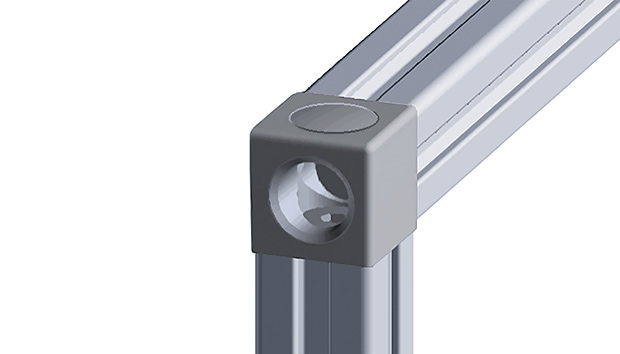

Cube Connector

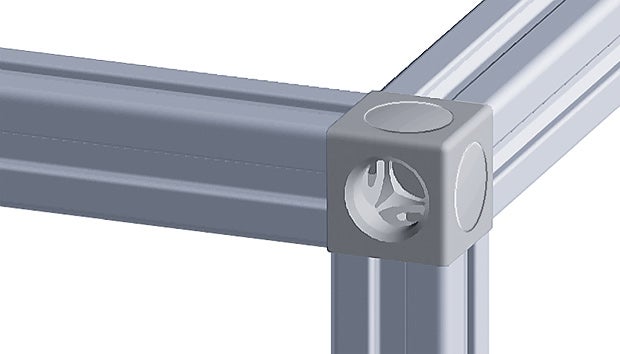

Links up to three aluminium profiles at a right angle, use the caps to cover the holes.
Cube connector material: Die-cast aluminium
Cap material: Plastic (PE)
Mounting material WV20: M5 × 14 pan head screw (ISO7380)
Mounting material WV40: M8 × 25 countersunk screw (DIN7991)
Note: The caps in the sets are not ESD-ready.
Read more
Cube connector material: Die-cast aluminium
Cap material: Plastic (PE)
Mounting material WV20: M5 × 14 pan head screw (ISO7380)
Mounting material WV40: M8 × 25 countersunk screw (DIN7991)
Note: The caps in the sets are not ESD-ready.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | ESD | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|

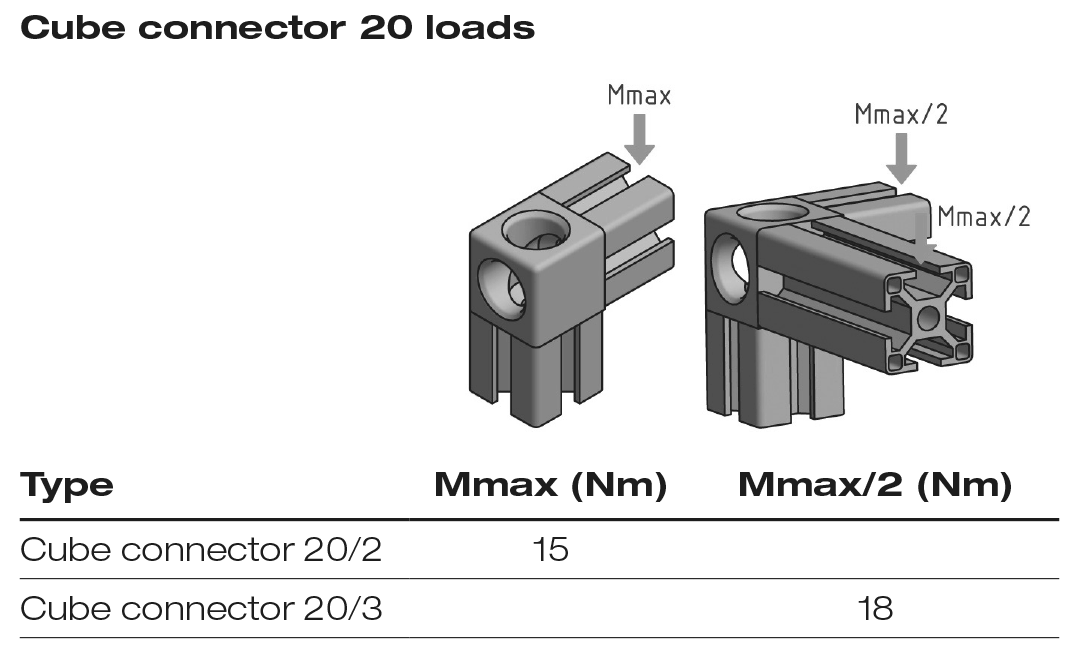

2 | Cube connector 20/2, uncoated aluminium, 2 black PE caps and mounting kit included | 20 - Slot 5 | Yes | ||||
|
|
|
2 | Cube connector 20/2, silver coated aluminium, 2 silver PE caps and mounting kit included | 20 - Slot 5 | - | ||||
|
|
|
2 | Cube connector 20/3, uncoated aluminium, 3 black PE caps and mounting kit included | 20 - Slot 5 | Yes | ||||
|
|
|
2 | Cube connector 20/3, silver coated aluminium, 3 silver PE caps and mounting kit included | 20 - Slot 5 | - | ||||
|
|
|
2 | Black cap for cube connector 20 | 20 - Slot 5 | - | ||||
|
|
|
2 | Silver cap for cube connector 20 | 20 - Slot 5 | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
