Automatic Butt Connector

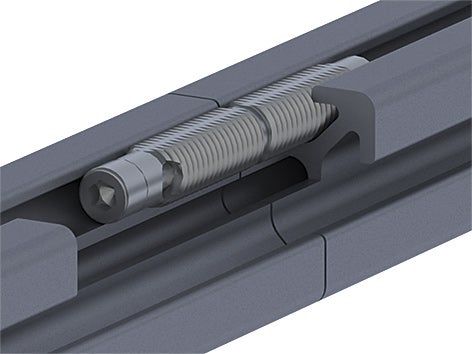

Use the automatic butt connector to quickly and easily link the face ends of two profiles from the same series without having to machine the profiles beforehand. Best practice is to use the automatic butt connectors in pairs. You may need several pairs, depending on the size and load on the profiles. Package includes the screw and cutting bush. Note: The load values refer to connectors installed in pairs
Read more
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue

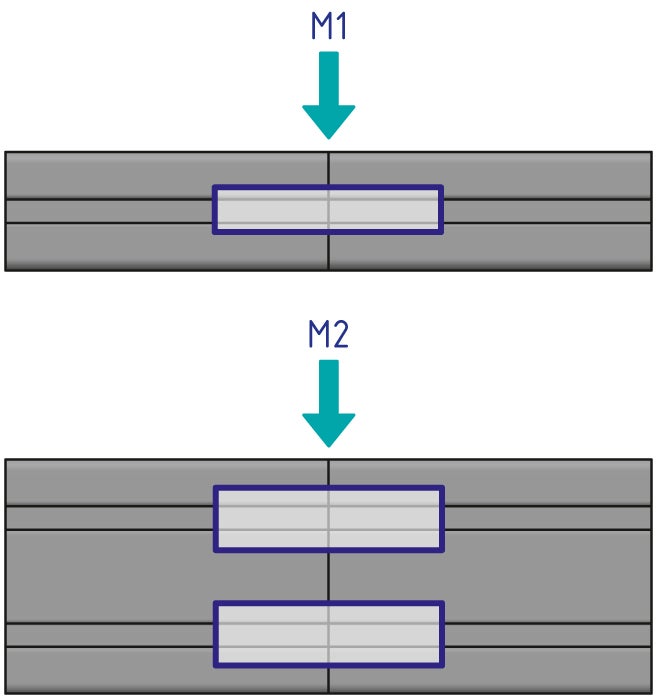

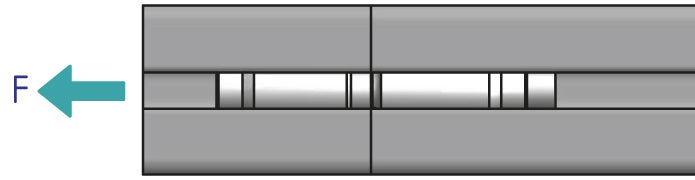

| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | M (Nm) | F (N) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Set of automatic butt connectors | 20 - Slot 5 | 22 | 1500 | ||||
|
|
|
2 | Set of automatic butt connectors | 30 - Slot 6 | 45 | 1800 | ||||
|
|
|
2 | Set of automatic butt connectors | 30 - Slot 6 | 45 | 1800 | ||||
|
|
|
1 | Set of automatic butt connectors | 40 - Slot 8 | 140 (40x40L) / 170 (40x40) | 4500 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
