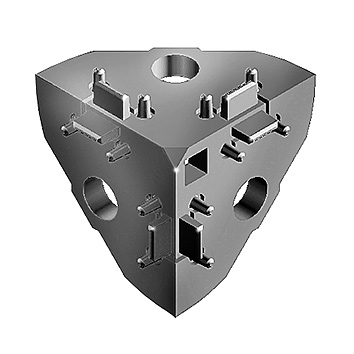

Corner Angle 30

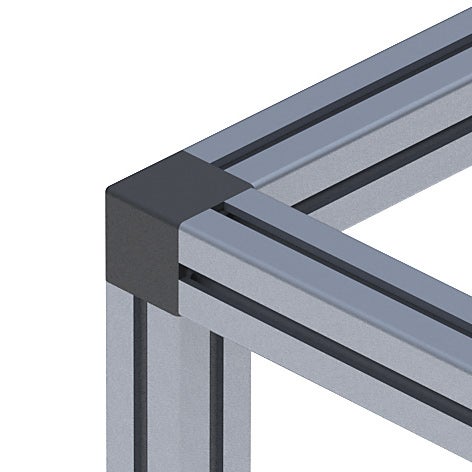

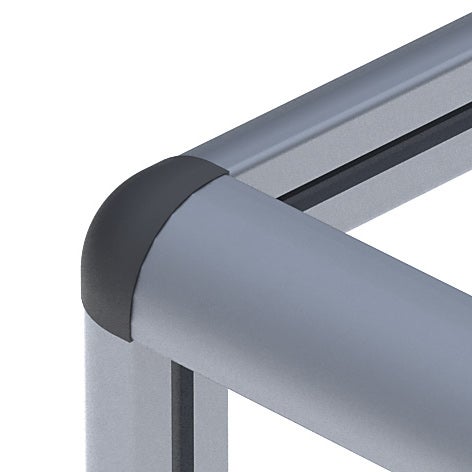

Right-angled links between up to three square or semi-circular profiles of the same cross section.Square or round caps for protection against injury and dirt.
Material: Corner angle: Uncoated die-cast zinc

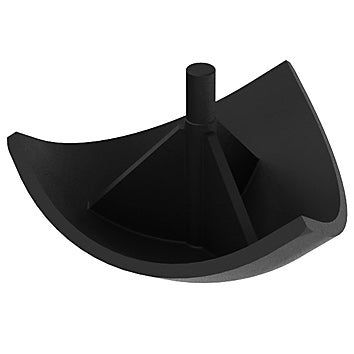

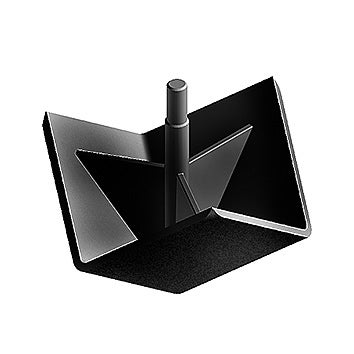

Caps: plastic (PA).
Note: The caps in the sets are not ESD-ready.
Read more
Material: Corner angle: Uncoated die-cast zinc
Caps: plastic (PA).
Note: The caps in the sets are not ESD-ready.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue

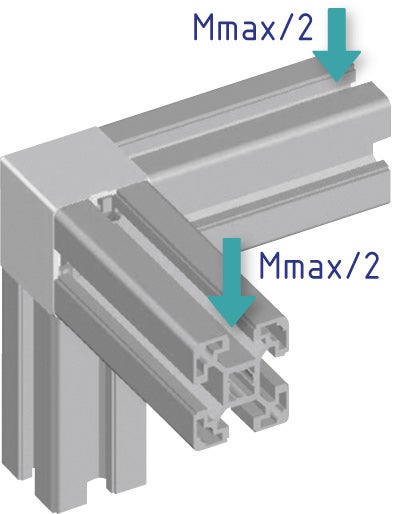

| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | F (Nm) | ESD | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) | 30 - Slot 6 | 40 | Yes | ||||
|
|
|
2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) and square black cap | 30 - Slot 6 | 40 | Yes | ||||
|
|
|
2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) and square grey cap (RAL7004) | 30 - Slot 6 | 40 | Yes | ||||
|
|
|
2 | Corner angle 30 including 3 M6 × 16 screws (ISO 7380) and round black cap | 30 - Slot 6 | 40 | Yes | ||||
|
|
|
2 | Round black cap | 30 - Slot 6 | - | - | ||||
|
|
|
2 | Square black cap | 30 - Slot 6 | - | - | ||||
|
|
|
2 | Square grey cap (RAL7004) | 30 - Slot 6 | - | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
