Steel Angle
Links two aluminium profiles at a right angle.
Note: To install the ESD-ready angles, use a notched slot nut in order to make a conductive link.
Mounting material On-site construction:
Angle 20: M5 × 8 countersunk screw (DIN7991), M5 slot 5 slot nut
Angle 30: M6 × 10 countersunk screw (DIN7991), M6 slot 6 slot nut
Read more
Note: To install the ESD-ready angles, use a notched slot nut in order to make a conductive link.
Mounting material On-site construction:
Angle 20: M5 × 8 countersunk screw (DIN7991), M5 slot 5 slot nut
Angle 30: M6 × 10 countersunk screw (DIN7991), M6 slot 6 slot nut
Product Information
System: 30 - Slot 6; 20 - Slot 5
Type: Angles Brackets and Corners; Fasteners
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue

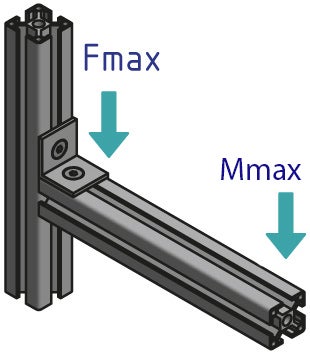

| Designation | Select all | CAD | Compare | Get quote | Lead Time * | System | Material | ESD | Fmax (N) | Mmax (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 20 - Slot 5 | Black powder coated steel | - | 600 | 15 | ||||
|
|
|
2 | 30 - Slot 6 | Steel, blue galvanised | Yes | 1000 | 25 | ||||
|
|
|
1 | 30 - Slot 6 | Black powder coated steel | - | 1000 | 25 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
