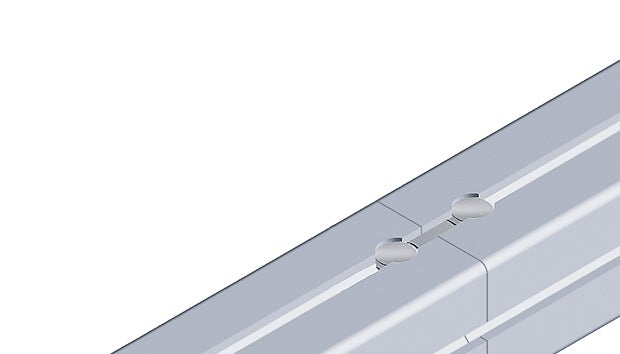

Universal Butt Connector
Links the face ends of two aluminium profile from the same series. Supplied with mounting kit.
Material Connector: Galvanised die-cast zinc
Read more
Material Connector: Galvanised die-cast zinc
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue

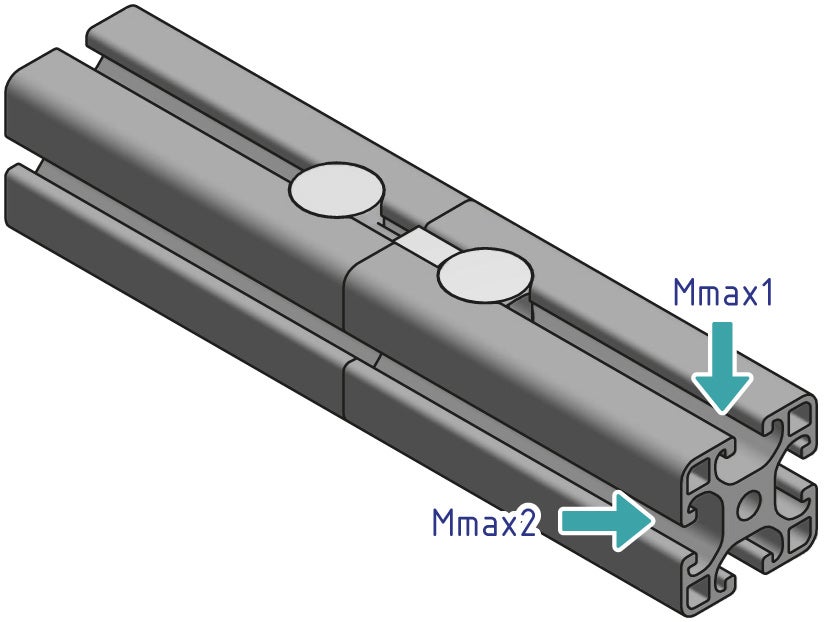

| Designation | Select all | Compare | Get quote | Lead Time * | Description | System | A | D | H | Fmax (N) | Mmax (Nm) | Mmax1 (Nm) | Mmax2 (Nm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Universal connector set (2 universal connectors, 1 M4 × 20 screw (DIN912), 1 M4 nut (DIN934)) | 20 - Slot 5 | 32 | 11.8 | 8.5 | - | - | 20 | 20 | ||
|
|
|
2 | Universal connector set (2 universal connectors, 1 M6 × 35 screw (ISO7380), 1 M6 nut (DIN934)) | 30 - Slot 6 | 46 | 15.7 | 12.5 | 50 | 50 | 50 | 50 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
