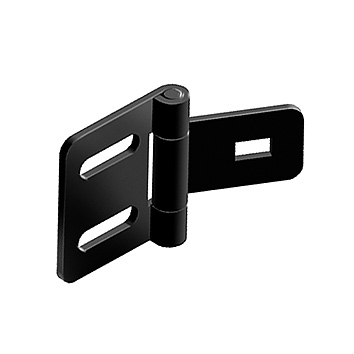

Light-Duty Metal Hinge – No Unhinging
For surface elements and aluminium profiles.

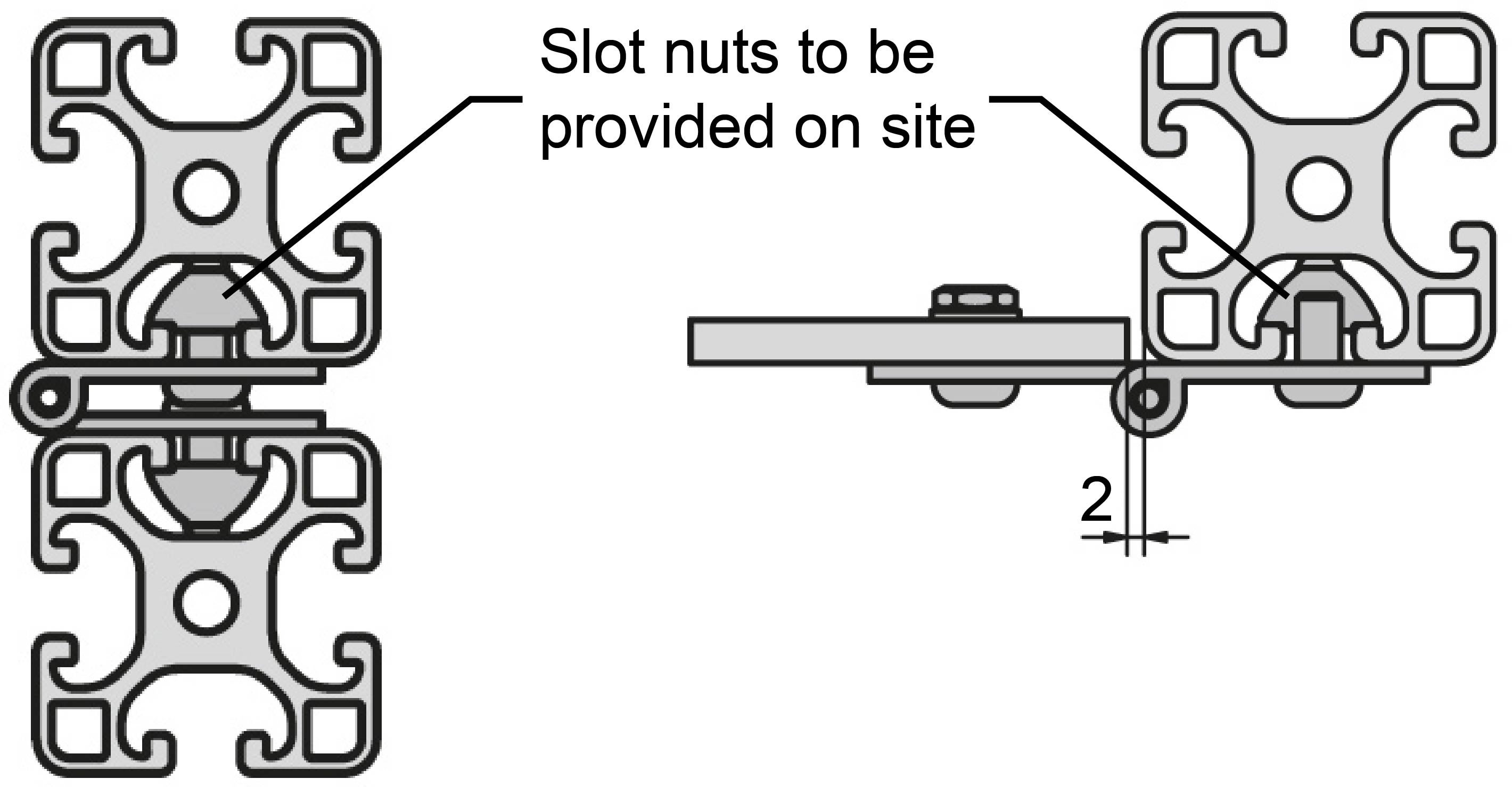

Optional adjustment by the oblong holes make this hinge fit for slot rows 5–8.

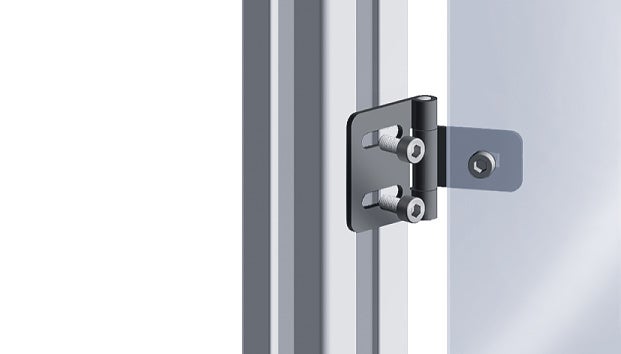

Once mounted, the surface element pivots by 180°.
Mounting material included:
3 M5 × 8 screws (ISO 7380),
1 M5 × 16 screw (DIN 903),
1 M5 nut (DIN 934),
1 5.3 washer (DIN 125) - black galvanised (RoHS-compliant)
Read more
Optional adjustment by the oblong holes make this hinge fit for slot rows 5–8.
Once mounted, the surface element pivots by 180°.
Mounting material included:
3 M5 × 8 screws (ISO 7380),
1 M5 × 16 screw (DIN 903),
1 M5 nut (DIN 934),
1 5.3 washer (DIN 125) - black galvanised (RoHS-compliant)
Product Information
System: 30 - Slot 6; 20 - Slot 5
Type: Hinges
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Material | FAmax (N) | FRmax (N) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Black powder coated steel | 250 | 75 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
