Adjustable Feet Kit, Trapezoid Base 60 and 80 with anti-slip/vibration plate

STOCK ITEM ASSEMBLY KIT
Swiveling feet for levelling out uneven floors. Pivoting range of ball-and-socket joint: ± 20.
No mounting holes.
Ball joint Ø15.

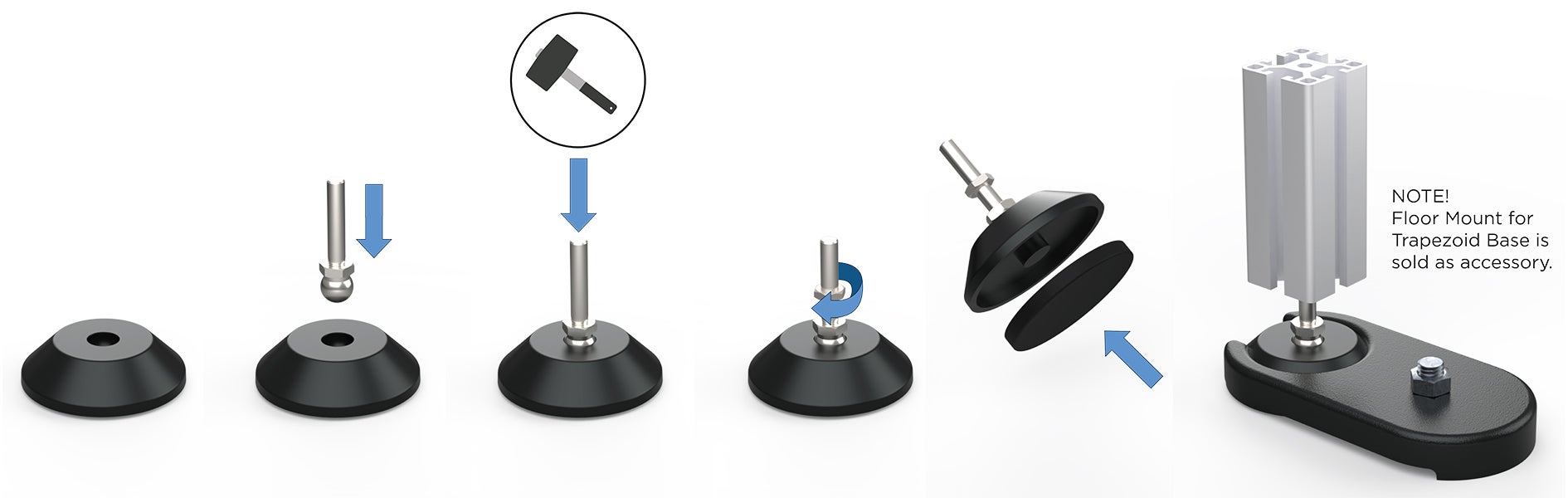

Delivered as a kit, not assembled.

Material:
• Base: Die-cast zinc (black powder coat).
• Threaded rod: Steel,surface zinc plated.
• Anti-slip plate: Thermoplastic elastomer ≈ 70 shore A. Oil and water resistant (up to 60 °C).
Read more

Product Information

System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
Type: Feet
Designation Select all CAD Compare Get quote Lead Time * A D H L M Base d Weight (g) Max. Load (kg) SW (mm)
Get quote 1 29.5 59 68.9 40 M8 Die-cast zinc with a black powder coat 50 149 350 14
Get quote 1 29.5 59 109.1 80 M8 Die-cast zinc with a black powder coat 50 162 350 14
Get quote 1 29.5 59 73.9 45 M10 Die-cast zinc with a black powder coat 50 158 470 14
Get quote 1 29.5 59 73.9 45 M12 Die-cast zinc with a black powder coat 50 168 770 14
Get quote 1 29.5 59 153.9 125 M12 Die-cast zinc with a black powder coat 50 225 770 14
Get quote 1 29.5 59 94.9 66 M16 Die-cast zinc with a black powder coat 50 225 1450 17
Get quote 1 29.5 59 153.9 125 M16 Die-cast zinc with a black powder coat 50 303 1450 17
Get quote 1 29.5 76 71.1 40 M8 Die-cast zinc with a black powder coat 68 261 350 14
Get quote 1 29.5 76 110.9 80 M8 Die-cast zinc with a black powder coat 68 274 350 14
Get quote 1 29.5 76 73.9 45 M10 Die-cast zinc with a black powder coat 68 270 470 14
Get quote 1 29.5 76 73.9 45 M12 Die-cast zinc with a black powder coat 68 280 770 14
Get quote 1 29.5 76 155.9 125 M12 Die-cast zinc with a black powder coat 68 337 770 14
Get quote 1 29.5 76 96.9 66 M16 Die-cast zinc with a black powder coat 68 337 1450 17
Get quote 1 29.5 76 155.9 125 M16 Die-cast zinc with a black powder coat 68 415 1450 17

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
