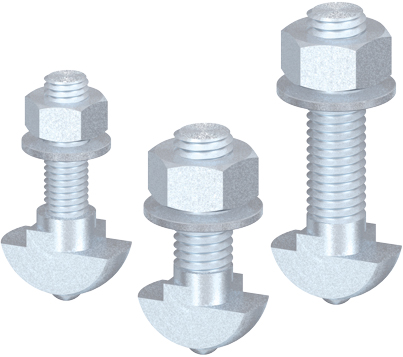

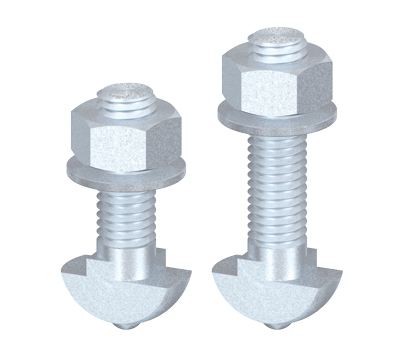

Attachment Screws
Application:

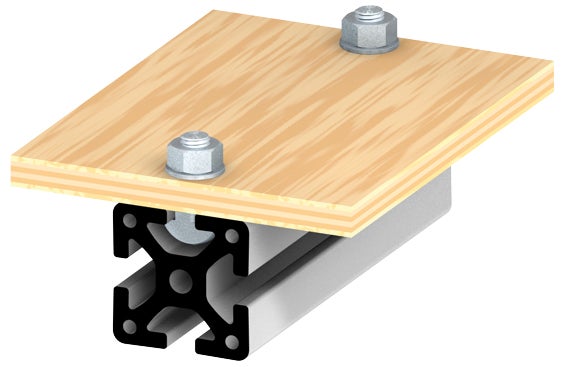

Attaching accessories and sheet material to profiles. The twist-in attachment screw, with an anti-twist feature, can be fixed in the profile groove at any point and is held in position by a spring-loaded ball.
Supply:
1 x hexagon nut M6 (M8), DIN 934, Zn
1 x washer M6 (M8), DIN 125
1 x attachment screw M6 (M8) x L
Read more
Attaching accessories and sheet material to profiles. The twist-in attachment screw, with an anti-twist feature, can be fixed in the profile groove at any point and is held in position by a spring-loaded ball.
Supply:
1 x hexagon nut M6 (M8), DIN 934, Zn
1 x washer M6 (M8), DIN 125
1 x attachment screw M6 (M8) x L
Product Information
Material: Steel, zinc-plated
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Description | System | Weight (g) |
|---|---|---|---|---|---|---|---|
|
|
|
2 | Attachment Screw M6 / L 25 | 40 - Slot 8 | 12 | ||
|
|
|
2 | Attachment Screw M6 / L 30 | 40 - Slot 8 | 12 | ||
|
|
|
2 | Attachment Screw M6 / L 40 | 40 - Slot 8 | 15 | ||
|
|
|
2 | Attachment Screw M8 / L 30 | 40 - Slot 8 | 20 | ||
|
|
|
2 | Attachment Screw M8 / L 32 | 40 - Slot 8 | 20 | ||
|
|
|
2 | Attachment Screw M8 / L 40 | 40 - Slot 8 | 22 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
