Universal Butt Fastening Set 8

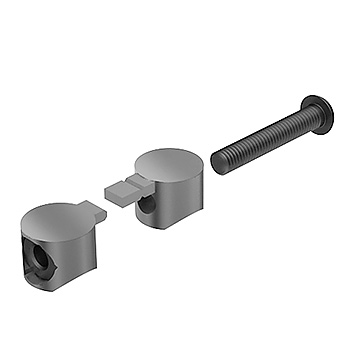

Links the face ends of two aluminium profile from the same series. Supplied with mounting kit. Set consists of 2 universal connectors, 1 M8 × 45 fillister head screw (ISO7380), 1 M8 nut (DIN934).
Read more
Product Information
Material: Galvanised die-cast zinc
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | System | A | D | H | Mmax1 (Nm) | Mmax2 (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 40 - Slot 8 | 60 | 19.7 | 16 | 150 | 150 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
