Fixing Set For Portal Plates
Used to screw portal plate to the floor

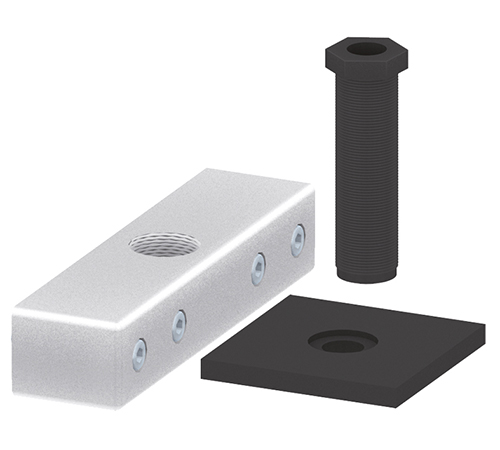

Foot Block, Jacking Screws
Application:
Heavy duty fastening of machine frameworks.
Acc.:
SZ1732V: 2x floor anchor M 12 x 115
Two fixing sets SZ1732V are required for portal plates with four jacking screws.
Read more
Heavy duty fastening of machine frameworks.
Acc.:
SZ1732V: 2x floor anchor M 12 x 115
Two fixing sets SZ1732V are required for portal plates with four jacking screws.
Product Information
Material: Foot block: aluminium, natural anodized. Jacking screw & Pressure plate: steel, black.
System: 40 - Slot 8
Type: Floor Fixing Elements
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Foot Block M 32 x 1.5 | 40 - Slot 8 | 956 | ||||
|
|
|
2 | Pressure Plate 100 x 100 x 10 | 40 - Slot 8 | 742 | ||||
|
|
|
2 | Jacking Screw M 32 x 1.5 60 SW 36 | 40 - Slot 8 | 226 | ||||
|
|
|
2 | Jacking Screw M 32 x 1.5 100 SW 36 | 40 - Slot 8 | 363 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
