Fixing Set For Portal Plates
Used to screw portal plate to the floor

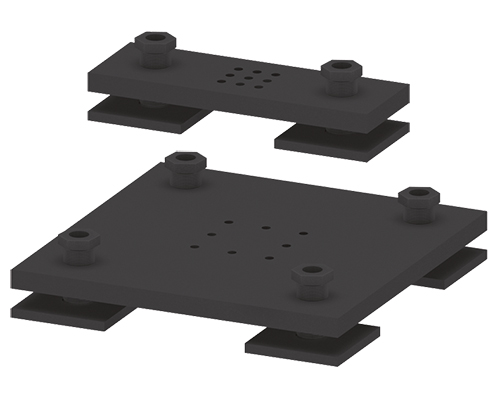

Portal Plates
Application:
Portal plates are used to fix large machine frames or portal robots to the floor.
Supply:
2x / 4x jacking screw M 32 x 1.5 x 60
1x pressure plate 100 x 100 x 10 per jacking screw
Acc.:
SZ1732V: 2x heavy duty dowel M 12 x 115
Two fixing sets SZ1732V are required for portal plates with four jacking screws.
Longer floor anchors with a length of 100 mm (SS3100S) are also available.
Read more
Portal plates are used to fix large machine frames or portal robots to the floor.
Supply:
2x / 4x jacking screw M 32 x 1.5 x 60
1x pressure plate 100 x 100 x 10 per jacking screw
Acc.:
SZ1732V: 2x heavy duty dowel M 12 x 115
Two fixing sets SZ1732V are required for portal plates with four jacking screws.
Longer floor anchors with a length of 100 mm (SS3100S) are also available.
Product Information
Material: Steel, zinc-plated black
System: 40 - Slot 8
Type: Portal plates
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Portal Plate 100 x 300 / 80 x 80 | 40 - Slot 8 | 9.6 | ||||
|
|
|
2 | Portal Plate 300 x 300 / 80 x 80 | 40 - Slot 8 | 13.6 | ||||
|
|
|
2 | Portal Plate 350 x 350 / 120 x 120 | 40 - Slot 8 | 17.6 | ||||
|
|
|
2 | Portal Plate 350 x 300 / 80 x 120 | 40 - Slot 8 | 15.9 | ||||
|
|
|
2 | Portal Plate 400 x 300 / 80 x 160 | 40 - Slot 8 | 18.3 | ||||
|
|
|
2 | Portal Plate 450 x 300 / 80 x 200 | 40 - Slot 8 | 20.6 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
