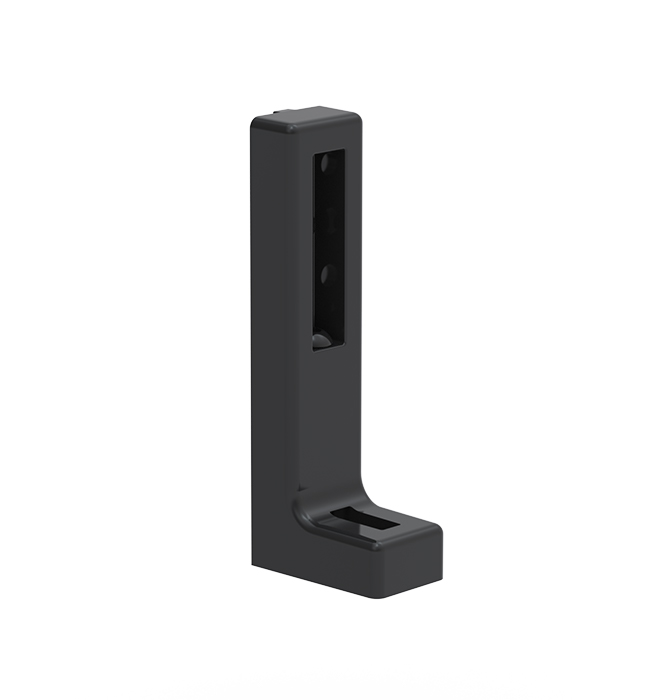

L-Based Foot Adjustable 8
To fix aluminum profiles to the floor vertically adjustable; with adjustment screw and threaded plate. Lifting height 72 mm.
Assembly set includes 1 T-slot nut - Nut 8 - M8, 1 screw ISO 7380 - M8 × 16.
Read more
Assembly set includes 1 T-slot nut - Nut 8 - M8, 1 screw ISO 7380 - M8 × 16.
Product Information
Material: Zinc die-cast. Assembly set in steel.
System: 40 - Slot 8
Type: Feet
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | L-Based Foot Adjustable 8 | 40 - Slot 8 | 535 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
