Door Lock PROe
Everything in hand. Door lock PROe with safety function. Secures safety doors and flaps up to Cat. 4/Ple.
Fashionable, systematic design. Perfect choice for aluminium profiles.

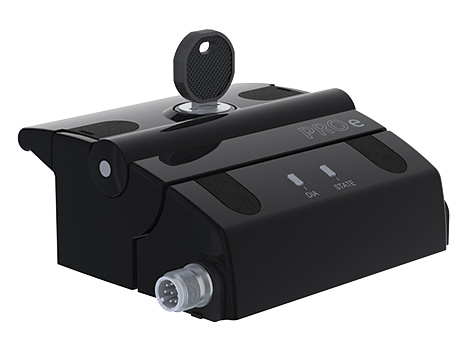

PROe is a multifunctional door handle which secures and monitors guards such as doors and flaps of machines and systems. It consists of a handle and a locking module fitted with the tried and tested transponder-coded CES safety equipment supplied by EUCHNER. Using the transponder technology ensures a top safety level in conformity with EN ISO 13849-1 (Cat.4/PLe) and demands that everything is absolutely manipulation-proof.
The on-board CES AR data processor supports up to 20 PROe units connected in series. PROe features two obviously placed LEDs for status indication and fast diagnosis. Its compact and symmetrical design makes mounting on profiles easy and supports the use on doors hinged either on the left or right. The industry-
standard metal housing has a stable door stop and is perfectly fit for use in rugged environments. An M12
connector ensures convenience of hooking up. Turn it by 180° to accommodate for differently routed cables. A lock protects PROe against being opened unintentionally. Easy and flexible installation without
mechanical effort.
Easily and reliably locks doors and flaps; secured against disassembly when closed.
Eight-pin M12 connector for doors hinged on the left or right; connector outlet at the top or bottom;
24 V system voltage;
UL-certified; tested to B6;
Safety category 4; PLe
Material: Die-cast aluminium
Surface: Black powder coated
Mount: By M6 cheese head or fillister head screw at the front
Read more
Fashionable, systematic design. Perfect choice for aluminium profiles.
PROe is a multifunctional door handle which secures and monitors guards such as doors and flaps of machines and systems. It consists of a handle and a locking module fitted with the tried and tested transponder-coded CES safety equipment supplied by EUCHNER. Using the transponder technology ensures a top safety level in conformity with EN ISO 13849-1 (Cat.4/PLe) and demands that everything is absolutely manipulation-proof.
The on-board CES AR data processor supports up to 20 PROe units connected in series. PROe features two obviously placed LEDs for status indication and fast diagnosis. Its compact and symmetrical design makes mounting on profiles easy and supports the use on doors hinged either on the left or right. The industry-
standard metal housing has a stable door stop and is perfectly fit for use in rugged environments. An M12
connector ensures convenience of hooking up. Turn it by 180° to accommodate for differently routed cables. A lock protects PROe against being opened unintentionally. Easy and flexible installation without
mechanical effort.
Easily and reliably locks doors and flaps; secured against disassembly when closed.
Eight-pin M12 connector for doors hinged on the left or right; connector outlet at the top or bottom;
24 V system voltage;
UL-certified; tested to B6;
Safety category 4; PLe
Material: Die-cast aluminium
Surface: Black powder coated
Mount: By M6 cheese head or fillister head screw at the front
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Weight (g) | Lock | Design | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Door lock PROe unicode | 380 | Alike | - | ||||
|
|
|
2 | Short-circuit plug | - | - | M12, 4-pin, male | ||||
|
|
|
2 | M12 Y junction with connecting lead | - | - | "M12, 1 × 8-pin; 2 × 5-pin" | ||||
|
|
|
2 | Y junction | - | - | "M12, 1 × 8-pin; 2 × 5-pin" | ||||
|
|
|
2 | PVC connecting lead; 8-pin; open-ended cable | - | - | "M12; 5 m" | ||||
|
|
|
2 | PVC connecting lead; 8-pin; open-ended cable | - | - | "M12; 10 m" | ||||
|
|
|
2 | PVC connecting lead; 8-pin; open-ended cable | - | - | "M12; 20 m" |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
