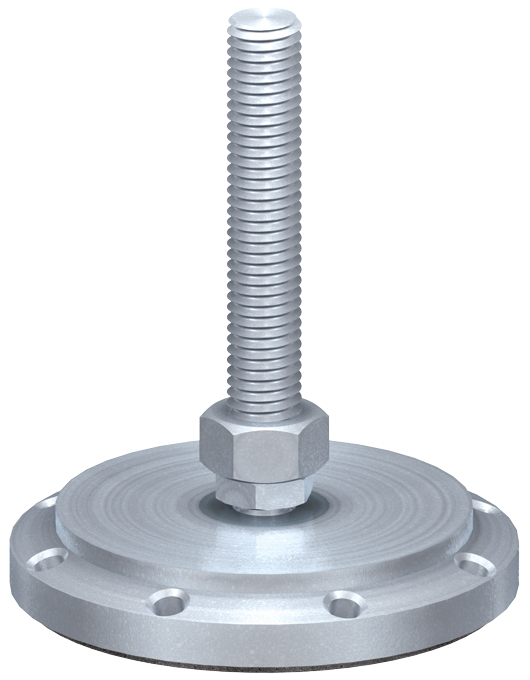

Adjustable Foot Ø 136 Steel with anti-vibration pad and fixing holes

Application:
Height adjustable foot for leveling machines and structures. Any tipping is compensated by a ball and striker pad.

Two fixing sets are required for adjustable feet Ø 136.
Read more

Product Information

Material: Pad: SVDB steel, zinc-plated; with anti-vibr. pad / fixing holes. Striker pad: Steel, zinc-plated. Spindle & Hexagon nut: Steel, zinc-plated
Max. Load (kg): 2000
System: 40 - Slot 8
Type: Feet
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Description System Hmin (mm) Weight (kg)
Get quote 2 Adj. Foot Ø 136​ M16 SVDB / L 95 St 40 - Slot 8 48 2.04
Get quote 2 Adj. Foot Ø 136​ M16 SVDB / L 166 St 40 - Slot 8 48 2.15
Get quote 2 Adj. Foot Ø 136​ M20 SVDB / L 95 St 40 - Slot 8 54 2.14
Get quote 2 Adj. Foot Ø 136​ M20 SVDB / L 166 St 40 - Slot 8 54 2.27

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
