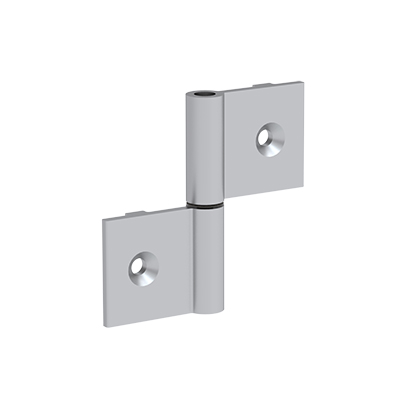

Hinge 8 Al
For panels and aluminum profiles; left or right side assembly.
Fastening from the front, using M6 countersunk screws.

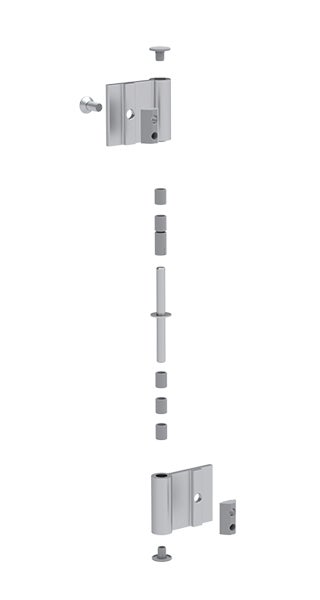

Assembly set includes 2 countersunk screws DIN 7991 - M6 × 14, 2 self-aligning T-Slot nuts M6 - slot 8.
Read more
Fastening from the front, using M6 countersunk screws.
Assembly set includes 2 countersunk screws DIN 7991 - M6 × 14, 2 self-aligning T-Slot nuts M6 - slot 8.
Product Information
Material: Wings, aluminum. Axle, stainless steel. Cover cap, plastic PA, glass fiber reinforced.
System: 40 - Slot 8
Type: Hinges
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue

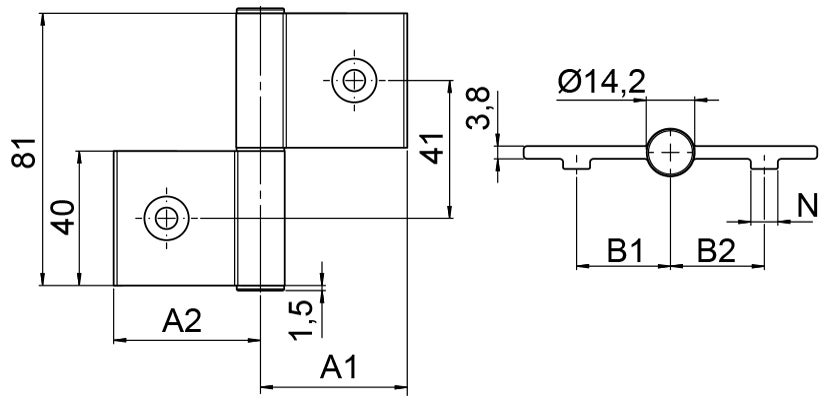

| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Colour | Weight (g) | B1 | B2 | A1 | A2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Hinge 8 Al PP4 | 40 - Slot 8 | Cover cap white aluminum ≈RAL 9006 | 106 | 27.5 | 27.5 | 43 | 43 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
