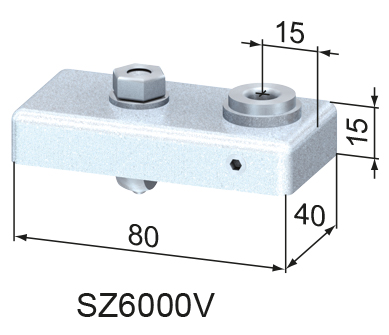

Drill Jig

Application:
Used for positioning the hole for the central fastener housing.
Read more

Product Information

Material: Steel, zinc-plated. Drill bush hardened and ground.
System: 40 - Slot 8
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Description Drill hole Weight (g)
Get quote 2 Drill Jig 40 Ø12 382

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
