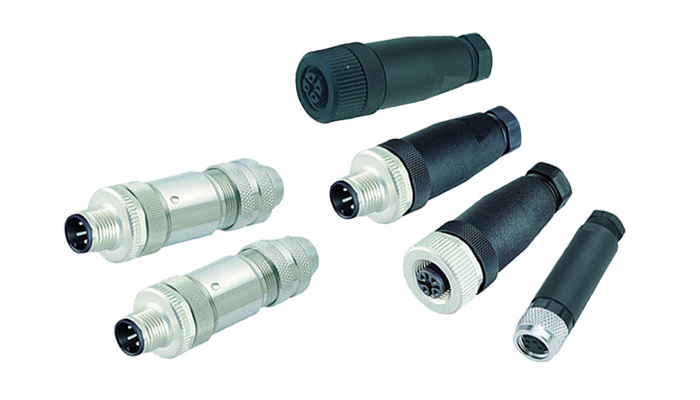

Connectors
The connectors can be used for all positioning systems. The connectors ensure that the PSE (IP 54) and PSS (IP 65) comply with the IP protection classes.
Please contact us for connectors for the PSW (IP 68).
Read more
Please contact us for connectors for the PSW (IP 68).
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
Designation | Select all | Compare | Get quote | Lead Time * | Description | BUS Communication | Remark |
---|---|---|---|---|---|---|---|
|
|

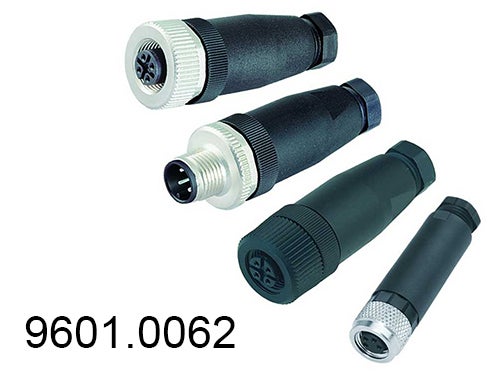

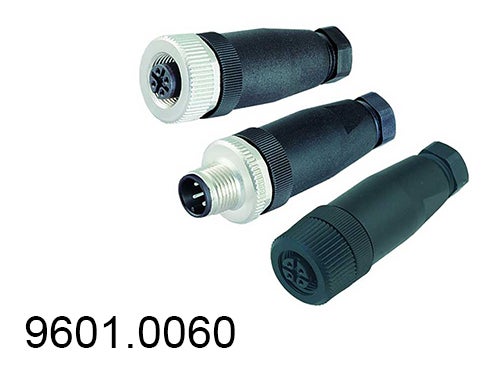

2 | Connector Set 0: Power supply + databus connector (2x) | Can Open (CA); Profi Bus (DP); Modbus (MB) | - | ||
|
|

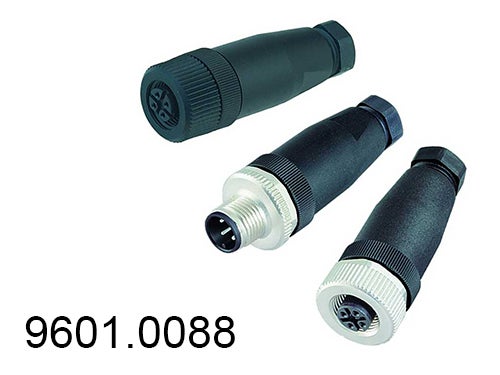

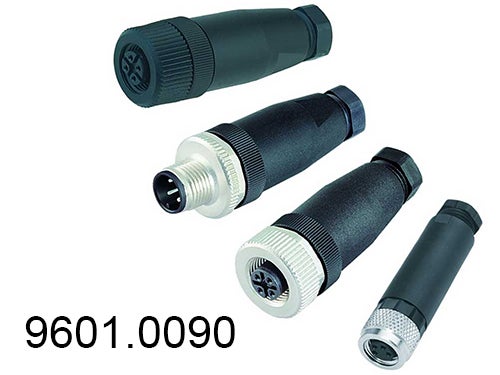

2 | Connector Set T: Power supply + databus connector (2x) + jog key connector | Can Open (CA); Profi Bus (DP); Modbus (MB) | Not for PSS / PSW | ||
|
|
2 | Connector Set 0: Power supply + databus connector (2x) | Device Net (DN) | - | ||
|
|
2 | Connector Set T: Power supply + databus connector (2x) + jog key connector | Device Net (DN) | Not for PSS / PSW | ||
|
|

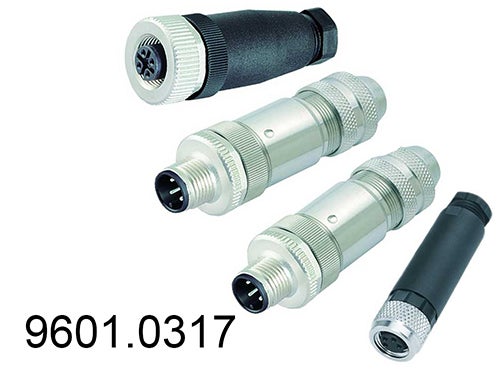

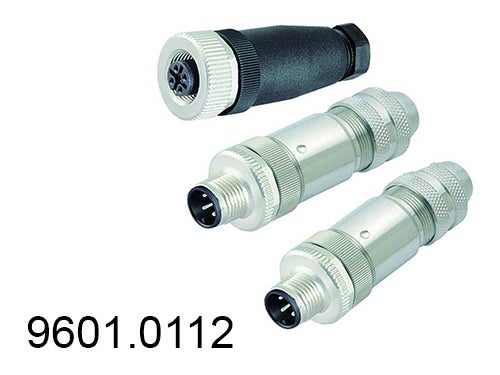

2 | Connector Set 0: Power supply + databus connector (2x) | Sercos (SE); EtherCat (EC); ProfiNet (PN); Ethernet IP (EI); PowerLink (PL) | - | ||
|
|
2 | Connector Set T: Power supply + databus connector (2x) + jog key connector | Sercos (SE); EtherCat (EC); ProfiNet (PN); Ethernet IP (EI); PowerLink (PL) | Not for PSS / PSW | ||
|
|

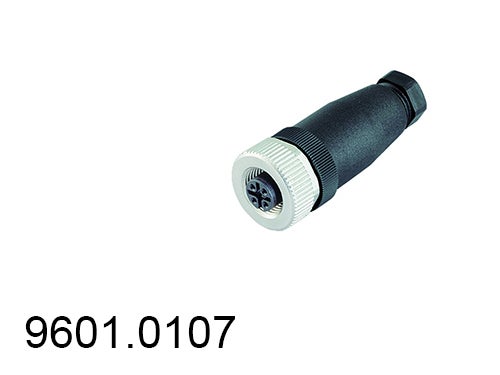

2 | Connector Set 0: Power supply + databus connector (2x) | IO-Link (IO) | - |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
