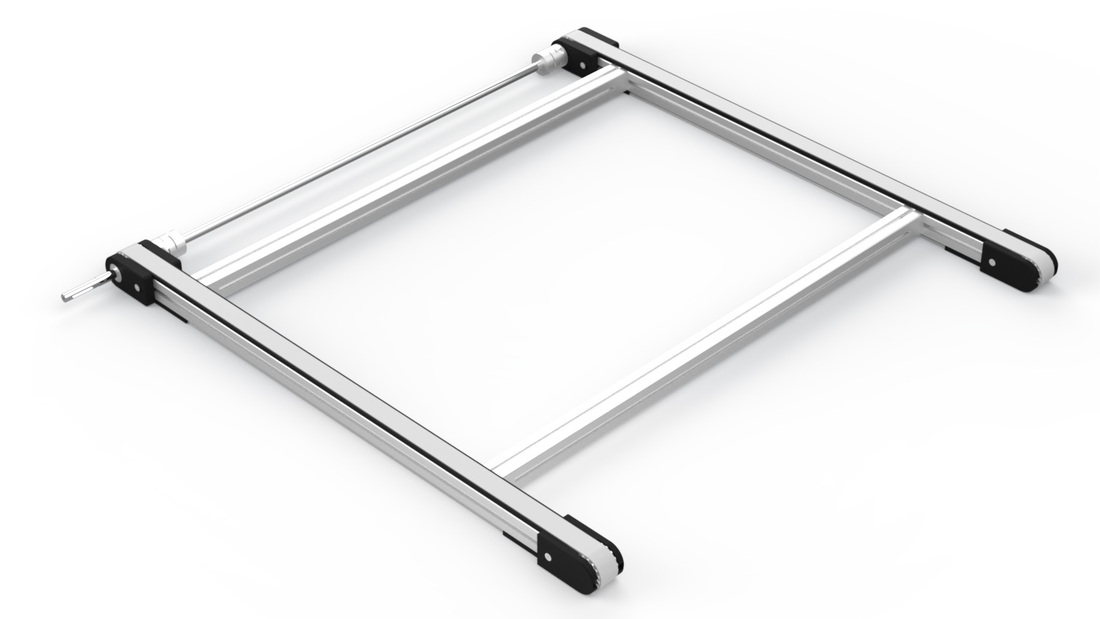

TB40 Double Timing Belt Conveyor

NEW CONFIGURE CAD
Two synchronised timing belt conveyors in width with end drive. Options such as cleats, false teeth or coated belt. Stand 100% compatible with conveyor available as an option. Inclination or declination of +/- 10° is possible. For dimensions outside our standard range, please contact Rollco.
Note: Please see load/speed diagram for current values.
Use our CAD configurator to design your timing belt conveyor according to your preferences and get a visual view, download data sheet and CAD files.

TB40 and TB80 have been extensively tested over its full performance range of speeds, loads, and lengths, together with our standard drive units.
Declaration of installation of partly completed machinery according to Directive 2006/42/EC Annex II 1B.
Dimensions in mm.
Read more

Product Information

No. of parallell units: 2
Incline/decline: +/- 10°
System load: Up to 150 kg
Load Capacity (kg): Up to 150
Load Capacity/m (kg): 25
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Profile Width (PW) Profile Height Belt Width (BW) Total Length (L) CC No. of parallell units A B M
2 40 40 32 max 6000 max 1500 2 200-400 190-300 160-1000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
