Rollers CPN-CPA
Prismatic roller for T- and U-rail

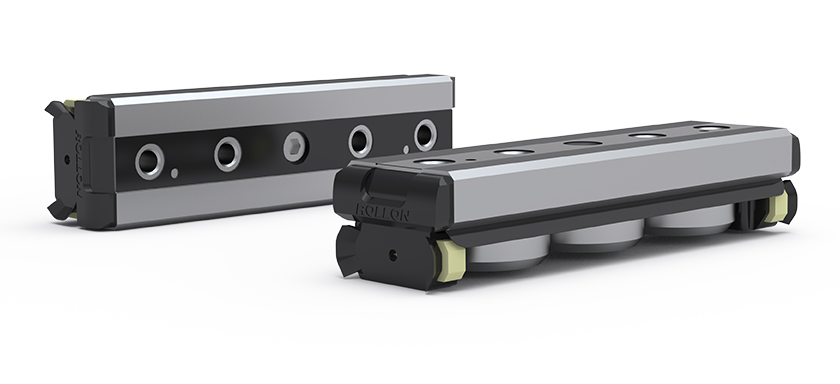

Slider NSW/NSA
Robust zinc plated steel slider with ball bearings, self-centering heads with wipers, longitudinal seals to protect the internal components and a top sealing strip to prevent accidental tampering of the fixed rollers. The slider body is accurately finished with matte longitudinal edge chamfer and a shining ground flat surface. It is available for all sizes, configurable with up to six rollers depending on the load requirement.
Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
All NSA-sliders, which are made for rail type K, have rollers with circular cross profile. The main load direction should always be on the largest number of the slider-wheels and those wheels should always run on the V-shaped raceway of the K-Rail. So for a typical slider with 3 wheels, the two outer wheels should carry the majority of the load and run in the V-shape and the third (middle) wheel should run on the flat raceway in the K-Rail.
All NSW/NSA sliders have wipers assembled and the wipers for K-Rails are adapted to work on the two different raceway shapes.
Dimensions in mm.
Read more
Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
All NSA-sliders, which are made for rail type K, have rollers with circular cross profile. The main load direction should always be on the largest number of the slider-wheels and those wheels should always run on the V-shaped raceway of the K-Rail. So for a typical slider with 3 wheels, the two outer wheels should carry the majority of the load and run in the V-shape and the third (middle) wheel should run on the flat raceway in the K-Rail.
All NSW/NSA sliders have wipers assembled and the wipers for K-Rails are adapted to work on the two different raceway shapes.
Dimensions in mm.
Product Information
Material: DIN 11SMnPb28. Zinc-plated according to ISO 2081.
Max. Radial Load Capacity (N): 15,000 (per slider)
Temperature range (°C): -20 to +120
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Size | Max. Speed (m/s) | Max. Acceleration (m/s) | Roller type | Number of rollers | Number of Fixing Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 18 | 3 | 10 | CPA18-CPN18 | 3 | 4 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18-CPN18 | 3 | 4 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 4 | 2 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 4 | 2 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 4 | 2 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 4 | 2 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 5 | 4 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 5 | 4 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 6 | 3 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 6 | 3 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 6 | 3 | |||
|
|
|
2 | 18 | 3 | 10 | CPA18 | 6 | 3 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28-CPN28 | 3 | 4 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28-CPN28 | 3 | 4 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 4 | 2 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 4 | 2 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 4 | 2 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 4 | 2 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 5 | 4 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 5 | 4 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 6 | 3 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 6 | 3 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 6 | 3 | |||
|
|
|
2 | 28 | 5 | 15 | CPA28 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43-CPN43 | 3 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43-CPN43 | 3 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CPA43 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43-CRPN43 | 3 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43-CRPN43 | 3 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 4 | 2 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 5 | 4 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 6 | 3 | |||
|
|
|
2 | 43 | 7 | 15 | CRPA43 | 6 | 3 | |||
|
|
|
2 | 63 | 9 | 20 | CPA63 | 3 | 4+4 | |||
|
|
|
2 | 63 | 9 | 20 | CPA63 | 4 | 5 | |||
|
|
|
2 | 63 | 9 | 20 | CPA63 | 4 | 5 | |||
|
|
|
2 | 63 | 9 | 20 | CPA63 | 5 | 6 | |||
|
|
|
2 | 63 | 9 | 20 | CPA63 | 6 | 7 | |||
|
|
|
2 | 63 | 9 | 20 | CPA63 | 6 | 7 | |||
|
|
|
2 | 63 | 9 | 20 | CRPA63 | 3 | 4+4 | |||
|
|
|
2 | 63 | 9 | 20 | CRPA63 | 4 | 5 | |||
|
|
|
2 | 63 | 9 | 20 | CRPA63 | 4 | 5 | |||
|
|
|
2 | 63 | 9 | 20 | CRPA63 | 5 | 6 | |||
|
|
|
2 | 63 | 9 | 20 | CRPA63 | 6 | 7 | |||
|
|
|
2 | 63 | 9 | 20 | CRPA63 | 6 | 7 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L | C | G | F | P1 | P2 | P3 | S | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
70 | 78 | 16 | 7.2 | M5 | 20 | - | 52 | 25 | 9 | - | |||
|
|
|
70 | 78 | 16 | 7.2 | M5 | 20 | - | 52 | 25 | 9 | - | |||
|
|
|
92 | 100 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
92 | 100 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
92 | 100 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
92 | 100 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
112 | 120 | 16 | 7.2 | M5 | 20 | - | - | 26 | - | - | |||
|
|
|
112 | 120 | 16 | 7.2 | M5 | 20 | - | - | 26 | - | - | |||
|
|
|
132 | 140 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
132 | 140 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
132 | 140 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
132 | 140 | 16 | 7.2 | M5 | 40 | - | - | 26 | - | - | |||
|
|
|
97 | 108 | 24.9 | 9.7 | M5 | 35 | - | 78 | 31 | 9.5 | - | |||
|
|
|
97 | 108 | 24.9 | 9.7 | M5 | 35 | - | 78 | 31 | 9.5 | - | |||
|
|
|
117 | 128 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
117 | 128 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
117 | 128 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
117 | 128 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
142 | 153 | 24.9 | 9.7 | M5 | 25 | - | - | 33.5 | - | - | |||
|
|
|
142 | 153 | 24.9 | 9.7 | M5 | 25 | - | - | 33.5 | - | - | |||
|
|
|
167 | 178 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
167 | 178 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
167 | 178 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
167 | 178 | 24.9 | 9.7 | M5 | 50 | - | - | 33.5 | - | - | |||
|
|
|
139 | 150 | 39.5 | 14.5 | M8 | 55 | - | 114 | 42 | 12.5 | - | |||
|
|
|
139 | 150 | 39.5 | 14.5 | M8 | 55 | - | 114 | 42 | 12.5 | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
210 | 221 | 39.5 | 14.5 | M8 | 40 | - | - | 45 | - | - | |||
|
|
|
210 | 221 | 39.5 | 14.5 | M8 | 40 | - | - | 45 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
139 | 150 | 39.5 | 14.5 | M8 | 55 | - | 114 | 42 | 12.5 | - | |||
|
|
|
139 | 150 | 39.5 | 14.5 | M8 | 55 | - | 114 | 42 | 12.5 | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
174 | 185 | 39.5 | 14.5 | M8 | 80 | - | - | 47 | - | - | |||
|
|
|
210 | 221 | 39.5 | 14.5 | M8 | 40 | - | - | 45 | - | - | |||
|
|
|
210 | 221 | 39.5 | 14.5 | M8 | 40 | - | - | 45 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
249 | 260 | 39.5 | 14.5 | M8 | 80 | - | - | 44.5 | - | - | |||
|
|
|
195 | 206 | 60 | 20.2 | M8 | 54 | 34 | 168 | 16.5 | - | 13.5 | |||
|
|
|
250 | 261 | 60 | 20.2 | M8 | 54 | - | - | 17 | - | - | |||
|
|
|
250 | 261 | 60 | 20.2 | M8 | 54 | - | - | 17 | - | - | |||
|
|
|
305 | 316 | 60 | 20.2 | M8 | 54 | - | - | 17.5 | - | - | |||
|
|
|
360 | 371 | 60 | 20.2 | M8 | 54 | - | - | 18 | - | - | |||
|
|
|
360 | 371 | 60 | 20.2 | M8 | 54 | - | - | 18 | - | - | |||
|
|
|
195 | 206 | 60 | 20.2 | M8 | 54 | 34 | 168 | 16.5 | - | 13.5 | |||
|
|
|
250 | 261 | 60 | 20.2 | M8 | 54 | - | - | 17 | - | - | |||
|
|
|
250 | 261 | 60 | 20.2 | M8 | 54 | - | - | 17 | - | - | |||
|
|
|
305 | 316 | 60 | 20.2 | M8 | 54 | - | - | 17.5 | - | - | |||
|
|
|
360 | 371 | 60 | 20.2 | M8 | 54 | - | - | 18 | - | - | |||
|
|
|
360 | 371 | 60 | 20.2 | M8 | 54 | - | - | 18 | - | - |
| Designation | Select all | CAD | Compare | Get quote | C (N) | C0rad (N) | C0ax (N) | Mx (Nm) | My (Nm) | Mzd (Nm) | Mzs (Nm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1530 | 820 | 260 | 1.5 | 4.7 | 8.2 | 8.2 | 0.096 | |||
|
|
|
1530 | 820 | 260 | 1.5 | 4.7 | 8.2 | 8.2 | 0.096 | |||
|
|
|
1530 | 820 | 300 | 2.8 | 7 | 8.2 | 24.7 | 0.096 | |||
|
|
|
1530 | 820 | 300 | 2.8 | 7 | 8.2 | 24.7 | 0.096 | |||
|
|
|
1530 | 820 | 300 | 2.8 | 7 | 24.7 | 8.2 | 0.11 | |||
|
|
|
1530 | 820 | 300 | 2.8 | 7 | 24.7 | 8.2 | 0.11 | |||
|
|
|
1830 | 975 | 360 | 2.8 | 9.4 | 24.7 | 24.7 | 0.11 | |||
|
|
|
1830 | 975 | 360 | 2.8 | 9.4 | 24.7 | 24.7 | 0.11 | |||
|
|
|
1830 | 975 | 440 | 3.3 | 11.8 | 24.7 | 41.1 | 0.138 | |||
|
|
|
1830 | 975 | 440 | 3.3 | 11.8 | 24.7 | 41.1 | 0.138 | |||
|
|
|
1830 | 975 | 440 | 3.3 | 11.8 | 41.1 | 24.7 | 0.138 | |||
|
|
|
1830 | 975 | 440 | 3.3 | 11.8 | 41.1 | 24.7 | 0.138 | |||
|
|
|
4260 | 2170 | 640 | 6.2 | 16 | 27.2 | 27.2 | 0.23 | |||
|
|
|
4260 | 2170 | 640 | 6.2 | 16 | 27.2 | 27.2 | 0.23 | |||
|
|
|
4260 | 2170 | 750 | 11.5 | 21.7 | 27.2 | 81.7 | 0.29 | |||
|
|
|
4260 | 2170 | 750 | 11.5 | 21.7 | 27.2 | 81.7 | 0.29 | |||
|
|
|
4260 | 2170 | 750 | 11.5 | 21.7 | 81.7 | 27.2 | 0.29 | |||
|
|
|
4260 | 2170 | 750 | 11.5 | 21.7 | 81.7 | 27.2 | 0.29 | |||
|
|
|
5065 | 2580 | 900 | 11.5 | 29 | 81.7 | 81.7 | 0.35 | |||
|
|
|
5065 | 2580 | 900 | 11.5 | 29 | 81.7 | 81.7 | 0.35 | |||
|
|
|
5065 | 2580 | 1070 | 13.7 | 36.2 | 81.7 | 136.1 | 0.42 | |||
|
|
|
5065 | 2580 | 1070 | 13.7 | 36.2 | 81.7 | 136.1 | 0.42 | |||
|
|
|
5065 | 2580 | 1070 | 13.7 | 36.2 | 136.1 | 81.7 | 0.42 | |||
|
|
|
5065 | 2580 | 1070 | 13.7 | 36.2 | 136.1 | 81.7 | 0.42 | |||
|
|
|
12280 | 5500 | 1570 | 23.6 | 60 | 104.5 | 104.5 | 0.8 | |||
|
|
|
12280 | 5500 | 1570 | 23.6 | 60 | 104.5 | 104.5 | 0.8 | |||
|
|
|
12280 | 5500 | 1855 | 43.6 | 81.5 | 104.5 | 313.5 | 1.02 | |||
|
|
|
12280 | 5500 | 1855 | 43.6 | 81.5 | 104.5 | 313.5 | 1.02 | |||
|
|
|
12280 | 5500 | 1855 | 43.6 | 81.5 | 313.5 | 104.5 | 1.02 | |||
|
|
|
12280 | 5500 | 1855 | 43.6 | 81.5 | 313.5 | 104.5 | 1.02 | |||
|
|
|
14675 | 6540 | 2215 | 43.6 | 108.6 | 313.5 | 313.5 | 1.24 | |||
|
|
|
14675 | 6540 | 2215 | 43.6 | 108.6 | 313.5 | 313.5 | 1.24 | |||
|
|
|
14675 | 6540 | 2645 | 52 | 135.8 | 313.5 | 522.5 | 1.47 | |||
|
|
|
14675 | 6540 | 2645 | 52 | 135.8 | 313.5 | 522.5 | 1.47 | |||
|
|
|
14675 | 6540 | 2645 | 52 | 135.8 | 522.5 | 313.5 | 1.47 | |||
|
|
|
14675 | 6540 | 2645 | 52 | 135.8 | 522.5 | 313.5 | 1.47 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 50.4 | 96.9 | 96.9 | 0.8 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 50.4 | 96.9 | 96.9 | 0.8 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 54.3 | 96.9 | 290.7 | 1.02 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 54.3 | 96.9 | 290.7 | 1.02 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 54.3 | 290.7 | 96.9 | 1.02 | |||
|
|
|
12280 | 5100 | 1320 | 0 | 54.3 | 290.7 | 96.9 | 1.02 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 290.7 | 1.24 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 290.7 | 1.24 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 484.5 | 1.47 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 290.7 | 484.5 | 1.47 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 484.5 | 290.7 | 1.47 | |||
|
|
|
14675 | 6065 | 1570 | 0 | 108.7 | 484.5 | 290.7 | 1.47 | |||
|
|
|
30750 | 12500 | 6000 | 125 | 271 | 367 | 367 | 2.44 | |||
|
|
|
30750 | 12500 | 7200 | 250 | 413 | 367 | 1100 | 3.17 | |||
|
|
|
30750 | 12500 | 7200 | 250 | 413 | 1100 | 367 | 3.17 | |||
|
|
|
36600 | 15000 | 8500 | 250 | 511 | 1100 | 1100 | 3.89 | |||
|
|
|
36600 | 15000 | 10000 | 350 | 689 | 1100 | 1830 | 4.60 | |||
|
|
|
36600 | 15000 | 10000 | 350 | 689 | 1830 | 1100 | 4.60 | |||
|
|
|
30750 | 11550 | 5045 | 0 | 235 | 335 | 335 | 2.44 | |||
|
|
|
30750 | 11550 | 5045 | 0 | 294 | 335 | 935 | 3.17 | |||
|
|
|
30750 | 11550 | 5045 | 0 | 294 | 935 | 335 | 3.17 | |||
|
|
|
36600 | 13745 | 6000 | 0 | 589 | 935 | 935 | 3.89 | |||
|
|
|
36600 | 13745 | 6000 | 0 | 589 | 935 | 1560 | 4.60 | |||
|
|
|
36600 | 13745 | 6000 | 0 | 589 | 1560 | 935 | 4.60 |
| Designation | Select all | CAD | Compare | Get quote | A1 | H (Slider+T-rail) | H (Slider+U-rail) | H (Slider+K-rail) | W1 | W |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
18 (+0.25/-0.10) | 16.5 (±0.15) | 16,5* | n/a | 16 (0/-0.2) | 17 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
28 (+0.25/-0.10) | 23.9 (±0.15) | 23.9* | n/a | 24.9 (0/-0.2) | 26.45 (+0.1/-0.3) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | 37 (±0.15) | 37* | n/a | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
43 (+0.35/-0.10) | n/a | n/a | 37 (±0.15) | 39.5 (0/-0.2) | 41.25 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | 50.5 (±0.15) | 50.5* | n/a | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | 50.5 (±0.15) | 50.5* | n/a | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | 50.5 (±0.15) | 50.5* | n/a | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | 50.5 (±0.15) | 50.5* | n/a | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | 50.5 (±0.15) | 50.5* | n/a | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | 50.5 (±0.15) | 50.5* | n/a | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | n/a | n/a | 50.5 (±0.15) | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | n/a | n/a | 50.5 (±0.15) | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | n/a | n/a | 50.5 (±0.15) | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | n/a | n/a | 50.5 (±0.15) | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | n/a | n/a | 50.5 (±0.15) | 60 (0/-0.2) | 61.5 (+0.2/-0.4) | |||
|
|
|
63 (+0.35/-0.10) | n/a | n/a | 50.5 (±0.15) | 60 (0/-0.2) | 61.5 (+0.2/-0.4) |
-
-
ZK-WNS Wipers
Wipers for NSW / NSA / NSD / NSDA -
Oiling syringe
For lubrication of the sliders NSW / NSA / NSD / NSDA -
Joining rail alignment fixture
For installation of joined rails -
Rollers CRPN-CRPA
Crowned roller for K-rail -
Fixing screws
For rails with counterbored holes
-
Slider NSD/NSDA
With mounting holes parallel to the direction of loading -
Slider CSW/CSWK
With zinc-plated steel body and sturdy polyamide wipers
