LMEK...LUU
Linear unit with flange, long type, Ø 12-60 mm.
FTSU
Aluminium with mounting holes.
Standard section length L = 4000 mm. Lengths other than standard (Lmax = 4000 mm) are also available on request.
Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.
Dimensions in mm.
Note: The shaft is not included, please order separately.
Read more
Standard section length L = 4000 mm. Lengths other than standard (Lmax = 4000 mm) are also available on request.
Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.
Dimensions in mm.
Note: The shaft is not included, please order separately.
Product Information
Material: Aluminium
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue

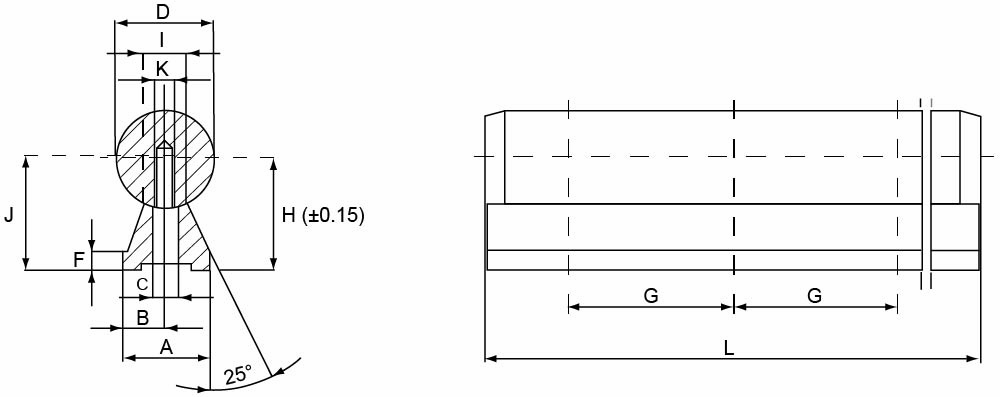

| Designation | Select all | Compare | Get quote | Lead Time * | Remark | G | A | B | H | D | K | F | C | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | Standard section length L = 4000 mm | 100 | 14 | 7 | 18 | 16 | M5 | 3 | 5.5 | 7 | 19 | ||
|
|
|
2 | Standard section length L = 4000 mm | 100 | 17 | 8.5 | 22 | 20 | M6 | 3 | 6.6 | 8.1 | 23 | ||
|
|
|
1 | Standard section length L = 4000 mm | 120 | 21 | 10.5 | 26 | 25 | M8 | 3 | 9 | 10.3 | 28.5 | ||
|
|
|
2 | Standard section length L = 4000 mm | 150 | 23 | 11.5 | 30 | 30 | M10 | 3 | 11 | 11 | 32 | ||
|
|
|
1 | Standard section length L = 4000 mm | 200 | 40 | 15 | 39 | 40 | M10 | 4 | 13.5 | 15 | 39.5 |
