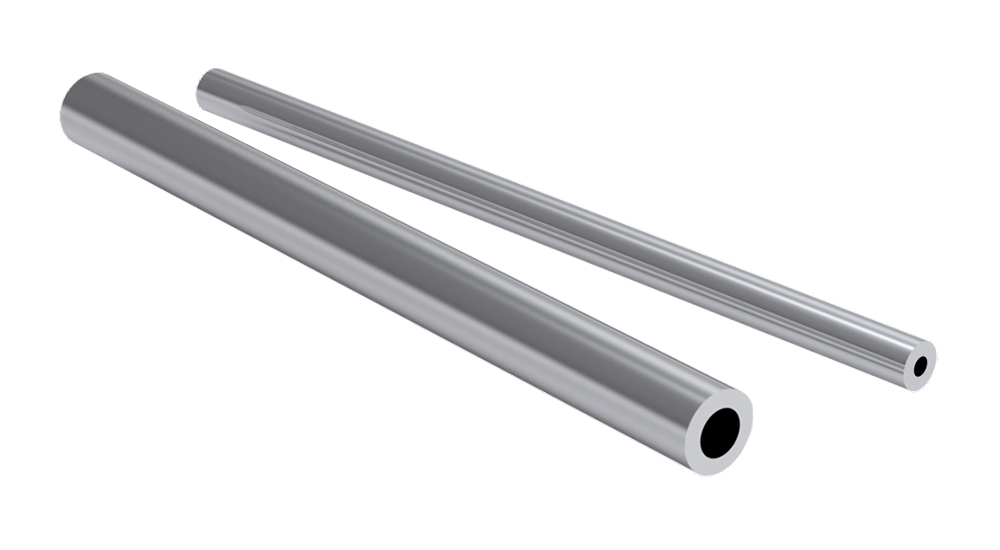

WH
Dimensions in mm.
Other types available on request.
Contact us for CAD-files.
Read more
Other types available on request.
Contact us for CAD-files.
Product Information
Material: Quenched and tempered steel C60 / 1.1221
Surface hardness: 59 HRC min. Hardening depth according to DIN ISO 18203.
Standard Tolerance: ISO h6
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Weight (kg/m) |
|---|---|---|---|---|---|
|
|
|
2 | 0.79 | ||
|
|
|
1 | 1.28 | ||
|
|
|
1 | 1.25 | ||
|
|
|
1 | 2.35 | ||
|
|
|
2 | 3.5 | ||
|
|
|
2 | 4.99 | ||
|
|
|
2 | 9.91 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | Compare | Get quote | Lw (mm) | Diameter | Inner Diameter | Hardening Depth (mm) | Roundness t1 (μm) | Parallelism t2 (μm) | Straightness t3 (mm/m) |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
6000 | 12 | 4 | 0.6 | 8 | 8 | 0.3 | ||
|
|
|
6000 | 16 | 7 | 0.6 | 8 | 8 | 0.3 | ||
|
|
|
6000 | 20 | 14 | 0.9 | 9 | 9 | 0.3 | ||
|
|
|
6000 | 25 | 15.6 | 0.9 | 9 | 9 | 0.3 | ||
|
|
|
6000 | 30 | 18.3 | 0.9 | 9 | 9 | 0.3 | ||
|
|
|
6000 | 40 | 28 | 1.5 | 11 | 11 | 0.3 | ||
|
|
|
6000 | 50 | 29.7 | 1.5 | 11 | 11 | 0.2 |
-
-
