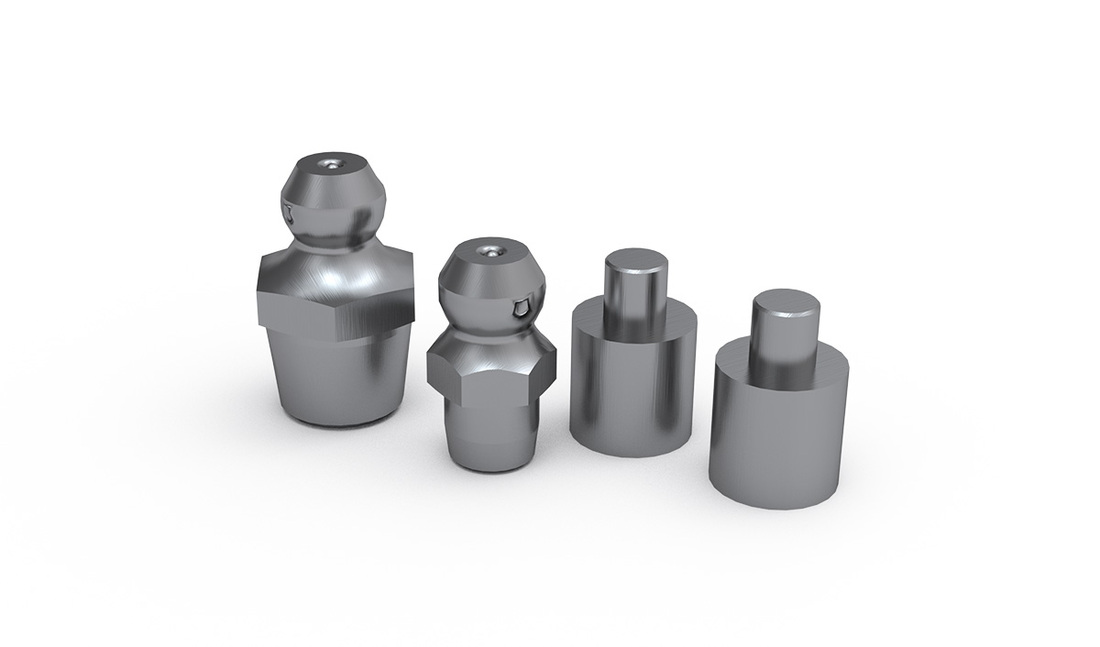

Side Mounted Grease Nipple
Compatible with Linear Rail SBI.

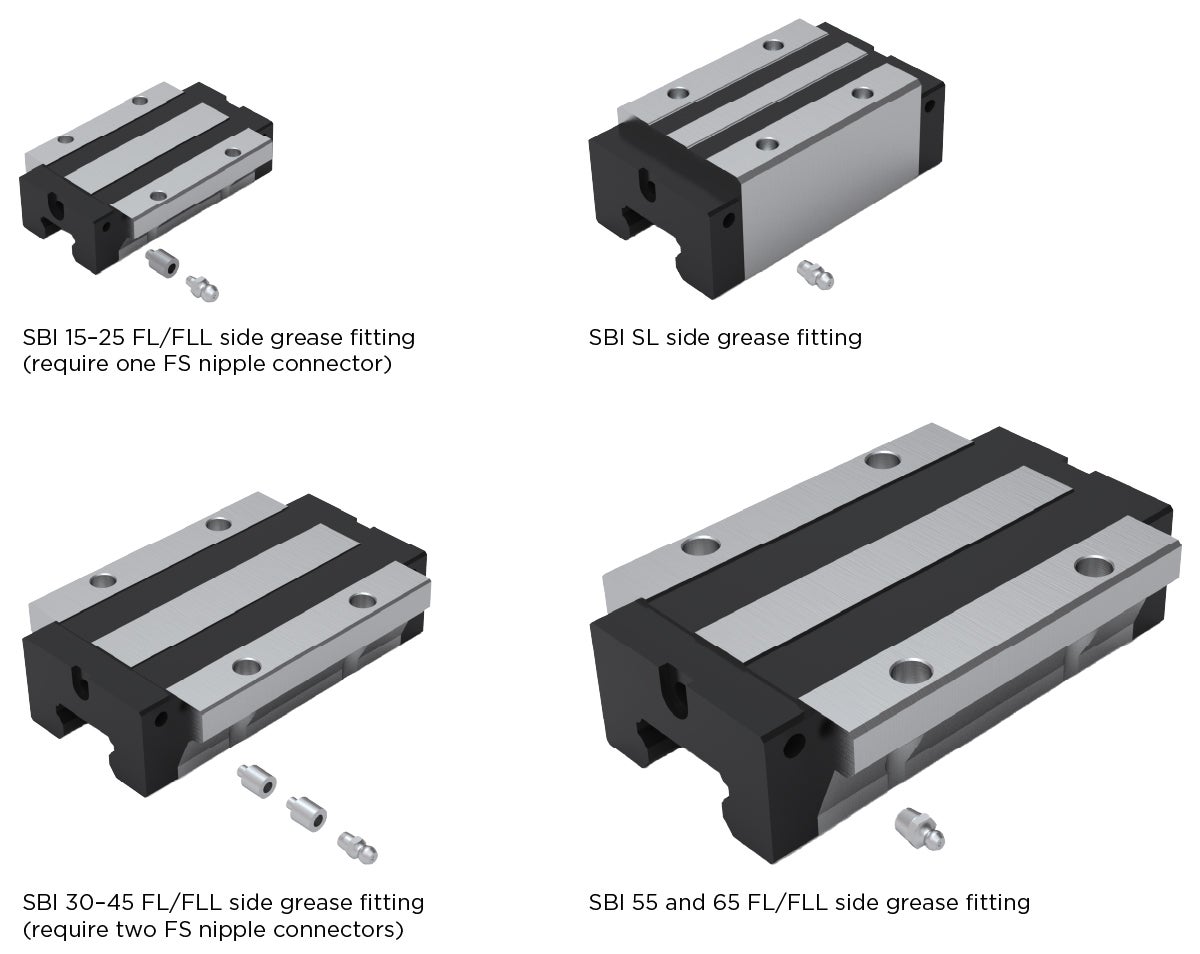

When using a side grease nipple with SBI FL or FLL, you also need to use one or two FS nipple connectors, depending on the SBI size. See table below for details.
Dimensions in mm.
Read more
When using a side grease nipple with SBI FL or FLL, you also need to use one or two FS nipple connectors, depending on the SBI size. See table below for details.
Dimensions in mm.
Product Information
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Compatible with | Remark | Thread |
|---|---|---|---|---|---|---|---|
|
|
|
1 | SBI15 | - | M4x0.7P | ||
|
|
|
1 | SBI20, SBI25 | - | M4x0.7P | ||
|
|
|
1 | SBI30, SBI35, SBI45 | - | M6x0.75P | ||
|
|
|
1 | SBI55, SBI65 | - | PT 1/8 | ||
|
|
|
1 | SBI15FL/FLL | FS nipple connector for FL, FLL flange type only | M4x0.7P | ||
|
|
|
1 | SBI20FL/FLL, SBI25FL/FLL | FS nipple connector for FL, FLL flange type only | M4x0.7P | ||
|
|
|
1 | SBI30FL/FLL, SBI35FL/FLL, SBI45FL/FLL | FS nipple connector for FL, FLL flange type only. For size 30–45, two pieces of FS nipple connector are applied. | M6x0.75P |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
