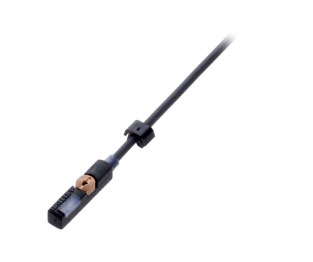

Position switch
For Linear Unit QME.
RHL-BMF235K-PS = Normally Open
RHL-BMF235K-PO = Normally Closed
Characteristics:
• Precise readjustment
• All-electronically
• Vibration resistant
• High protection class
Dimensions in mm.
Read more
RHL-BMF235K-PS = Normally Open
RHL-BMF235K-PO = Normally Closed
Characteristics:
• Precise readjustment
• All-electronically
• Vibration resistant
• High protection class
Dimensions in mm.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Service Voltage (V DC) | Output | Max. Rating (mA) | Contact rating | Internal Power Consumption (mA) | Max. Voltage Drop Static (V) | Operating Frequency (Hz) | Reproducibility (mm) | Ambient Temperature (°C) | Insulation Voltage Endurance (V DC) | Protection Class | Indicators | Mounting | Casing material | Connection | Approval | Short circuit protected |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 10 ... 30 | PNP, NO | 200 | 6 W max. (30 V, 200 mA) | 6 | 2.5 | 5000 | < 0.1 | -25 ... +85 | 75 | IP 67 | LED: yellow output signal | Hex key size 2.0 mm. Max. tightening torque 0.4 Nm | PA12 | Cable PUR, 2.0 m as standard | CE | Yes | ||
|
|
|
1 | 10 ... 30 | PNP, NC | 200 | 6 W max. (30 V, 200 mA) | 6 | 2.5 | 5000 | < 0.1 | -25 ... +85 | 75 | IP 67 | LED: yellow output signal | Hex key size 2.0 mm. Max. tightening torque 0.4 Nm | PA12 | Cable PUR, 2.0 m as standard | CE | Yes |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
