DSD28
Full double-sided extension w. two guide rails, fixed and movable

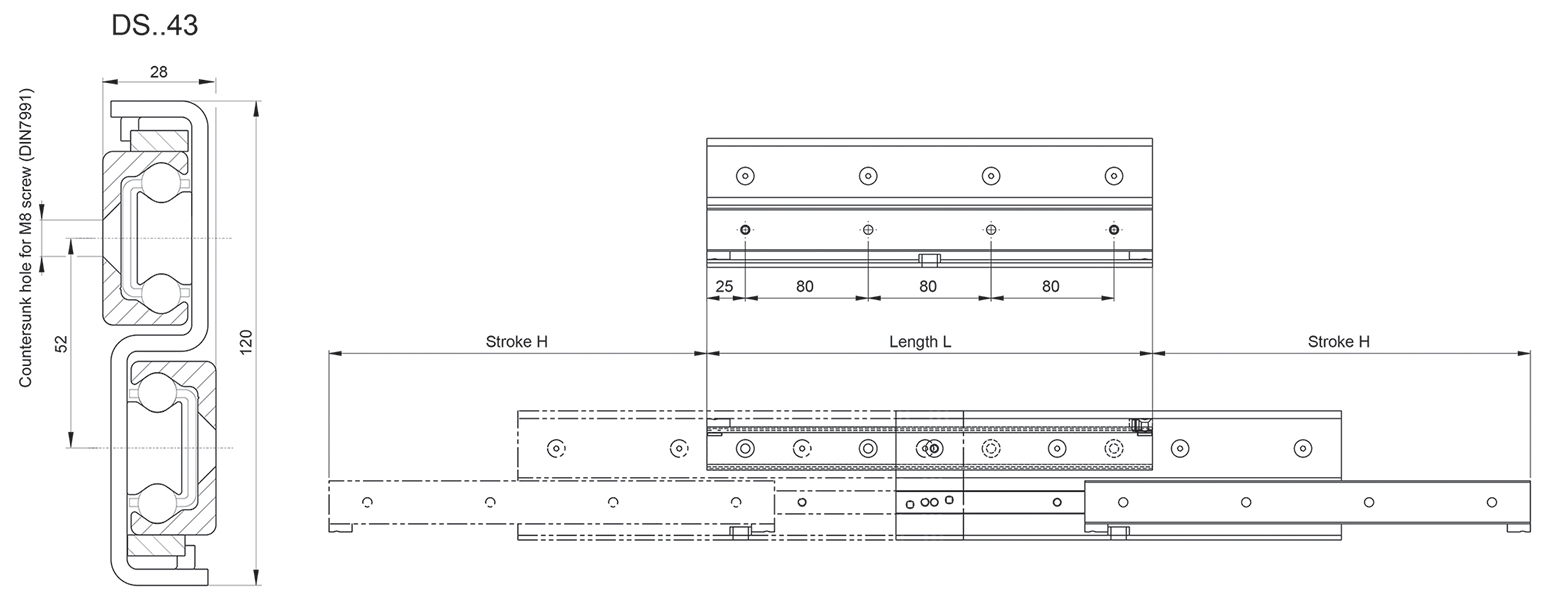

DSD43
Full extension consisting of two guide rails made of fixed and movable elements and an S-shaped intermediate element. This has a high moment of inertia and high rigidity with slim size. This results in a high loading capacity with low deflection in the extended state.
The DS series is available in three different designs: Version S with one-sided extension, Version B with locking in the extracted state for one-sided extension (DSB) and Version D with double-sided extension (DSD).
Number of holes shown in table are accessible holes/total holes.
Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.
System Load Capacity Radial value refers to a pair of rails. Dimensions in mm.
See Technical Information for further details, operating conditions and installation instructions.
Read more
The DS series is available in three different designs: Version S with one-sided extension, Version B with locking in the extracted state for one-sided extension (DSB) and Version D with double-sided extension (DSD).
Number of holes shown in table are accessible holes/total holes.
Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.
System Load Capacity Radial value refers to a pair of rails. Dimensions in mm.
See Technical Information for further details, operating conditions and installation instructions.
Product Information
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Length | Stroke | Weight (kg/m) | System Load Capacity Radial (N) | Number of Fixing Holes |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 530 | 476 | 14.6 | 6036 | 6/7 | |||
|
|
|
2 | 610 | 556 | 14.6 | 6530 | 8/8 | |||
|
|
|
2 | 690 | 636 | 14.6 | 7562 | 8/9 | |||
|
|
|
2 | 770 | 716 | 14.6 | 8594 | 10/10 | |||
|
|
|
2 | 850 | 796 | 14.6 | 9094 | 10/11 | |||
|
|
|
2 | 930 | 876 | 14.6 | 10126 | 12/12 | |||
|
|
|
2 | 1010 | 956 | 14.6 | 11156 | 12/13 | |||
|
|
|
2 | 1090 | 1036 | 14.6 | 11660 | 14/14 | |||
|
|
|
2 | 1170 | 1116 | 14.6 | 10784 | 14/15 | |||
|
|
|
2 | 1250 | 1196 | 14.6 | 10028 | 16/16 | |||
|
|
|
2 | 1330 | 1276 | 14.6 | 9372 | 16/17 | |||
|
|
|
2 | 1410 | 1356 | 14.6 | 8796 | 18/18 | |||
|
|
|
2 | 1490 | 1436 | 14.6 | 8286 | 18/19 | |||
|
|
|
2 | 1570 | 1516 | 14.6 | 7834 | 20/20 | |||
|
|
|
2 | 1650 | 1596 | 14.6 | 7426 | 20/21 | |||
|
|
|
2 | 1730 | 1676 | 14.6 | 7060 | 22/22 | |||
|
|
|
2 | 1810 | 1756 | 14.6 | 6728 | 22/23 | |||
|
|
|
2 | 1890 | 1836 | 14.6 | 6426 | 24/24 | |||
|
|
|
2 | 1970 | 1916 | 14.6 | 6150 | 24/25 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
