Adjustable Feet Kit, Base 80 with anti-slip/vibration plate and fixing holes
Swiveling feet base 80 mm with fixing holes, with anti-slip/vibration plate

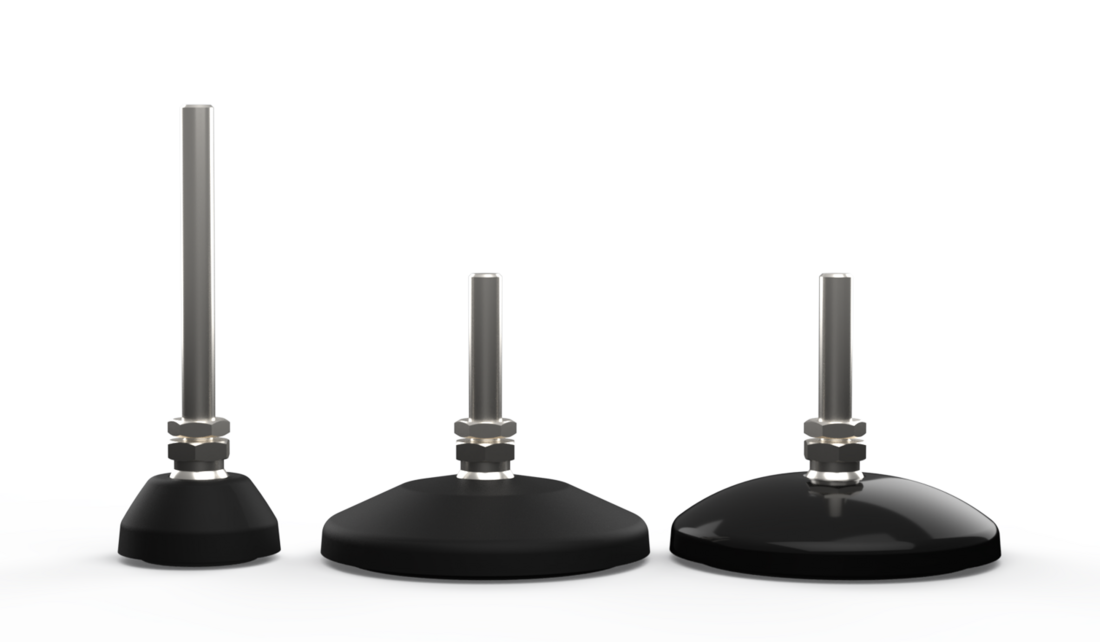

Adjustable Feet Kit, Base 40 and 80 with anti-slip/vibration plate
Swiveling feet for levelling out uneven floors. Pivoting range of ball-and-socket joint: ± 20.
No mounting holes.
Ball joint Ø15.
Delivered as a kit, not assembled.
Material:
• Base: Plastic PA (black), glass ball reinforced or die-cast zinc black powder coated.
• Threaded rod: Steel,surface zinc plated.
• Anti-slip plate: Thermoplastic elastomer ≈ 70 shore A. Oil and water resistant (up to 60 °C).
For stainless – steel please contact Rollco.
Read more
No mounting holes.
Ball joint Ø15.
Delivered as a kit, not assembled.
Material:
• Base: Plastic PA (black), glass ball reinforced or die-cast zinc black powder coated.
• Threaded rod: Steel,surface zinc plated.
• Anti-slip plate: Thermoplastic elastomer ≈ 70 shore A. Oil and water resistant (up to 60 °C).
For stainless – steel please contact Rollco.
Product Information
System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
Type: Feet
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | A | D | H | L | M | Base | d | Weight (g) | Max. Load (kg) | SW (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 29.5 | 39 | 68.5 | 40 | M8 | Plastic PA, Black | 30 | 56 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 39 | 108.7 | 80 | M8 | Plastic PA, Black | 30 | 69 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 39 | 73.7 | 45 | M10 | Plastic PA, Black | 30 | 65 | 470 | 14 | ||||
|
|
|
1 | 29.5 | 39 | 73.7 | 45 | M12 | Plastic PA, Black | 30 | 75 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 39 | 153.7 | 125 | M12 | Plastic PA, Black | 30 | 134 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 39 | 94.7 | 66 | M16 | Plastic PA, Black | 30 | 132 | 900 | 17 | ||||
|
|
|
1 | 29.5 | 39 | 153.7 | 125 | M16 | Plastic PA, Black | 30 | 210 | 900 | 17 | ||||
|
|
|
1 | 29.5 | 79 | 68.5 | 40 | M8 | Plastic PA, Black | 68 | 106 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 108.7 | 80 | M8 | Plastic PA, Black | 68 | 119 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 73.7 | 45 | M10 | Plastic PA, Black | 68 | 115 | 470 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 73.7 | 45 | M12 | Plastic PA, Black | 68 | 125 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 153.7 | 125 | M12 | Plastic PA, Black | 68 | 184 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 94.7 | 66 | M16 | Plastic PA, Black | 68 | 182 | 900 | 17 | ||||
|
|
|
1 | 29.5 | 79 | 153.7 | 125 | M16 | Plastic PA, Black | 68 | 260 | 900 | 17 | ||||
|
|
|
1 | 29.5 | 79 | 68.5 | 40 | M8 | Die-cast zinc with a black powder coat | 68 | 322 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 108.7 | 80 | M8 | Die-cast zinc with a black powder coat | 68 | 335 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 73.7 | 45 | M10 | Die-cast zinc with a black powder coat | 68 | 331 | 470 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 73.7 | 45 | M12 | Die-cast zinc with a black powder coat | 68 | 341 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 153.7 | 125 | M12 | Die-cast zinc with a black powder coat | 68 | 398 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 79 | 94.7 | 66 | M16 | Die-cast zinc with a black powder coat | 68 | 398 | 1450 | 17 | ||||
|
|
|
1 | 29.5 | 79 | 153.7 | 125 | M16 | Die-cast zinc with a black powder coat | 68 | 476 | 1450 | 17 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
