Floor Mount for Trapezoid Base
Mounts the trapezoid knuckle foot on the floor

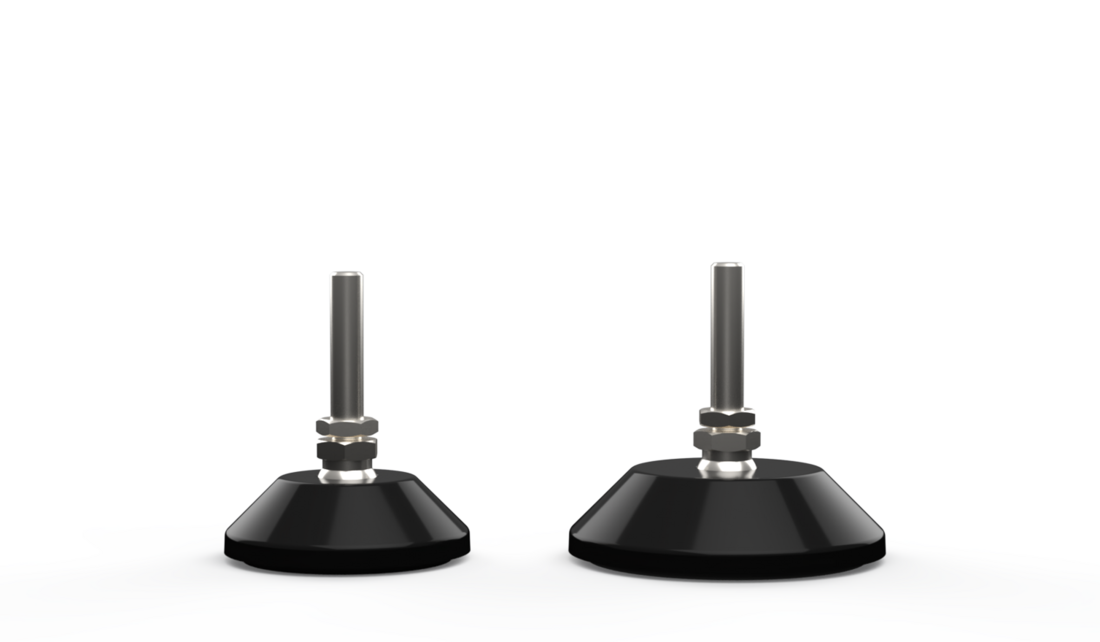

Adjustable Feet Kit, Trapezoid Base 60 and 80 with anti-slip/vibration plate
Swiveling feet for levelling out uneven floors. Pivoting range of ball-and-socket joint: ± 20.
No mounting holes.
Ball joint Ø15.
Delivered as a kit, not assembled.
Material:
• Base: Die-cast zinc (black powder coat).
• Threaded rod: Steel,surface zinc plated.
• Anti-slip plate: Thermoplastic elastomer ≈ 70 shore A. Oil and water resistant (up to 60 °C).
Read more
No mounting holes.
Ball joint Ø15.
Delivered as a kit, not assembled.
Material:
• Base: Die-cast zinc (black powder coat).
• Threaded rod: Steel,surface zinc plated.
• Anti-slip plate: Thermoplastic elastomer ≈ 70 shore A. Oil and water resistant (up to 60 °C).
Product Information
System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
Type: Feet
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | A | D | H | L | M | Base | d | Weight (g) | Max. Load (kg) | SW (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 29.5 | 59 | 68.9 | 40 | M8 | Die-cast zinc with a black powder coat | 50 | 149 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 59 | 109.1 | 80 | M8 | Die-cast zinc with a black powder coat | 50 | 162 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 59 | 73.9 | 45 | M10 | Die-cast zinc with a black powder coat | 50 | 158 | 470 | 14 | ||||
|
|
|
1 | 29.5 | 59 | 73.9 | 45 | M12 | Die-cast zinc with a black powder coat | 50 | 168 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 59 | 153.9 | 125 | M12 | Die-cast zinc with a black powder coat | 50 | 225 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 59 | 94.9 | 66 | M16 | Die-cast zinc with a black powder coat | 50 | 225 | 1450 | 17 | ||||
|
|
|
1 | 29.5 | 59 | 153.9 | 125 | M16 | Die-cast zinc with a black powder coat | 50 | 303 | 1450 | 17 | ||||
|
|
|
1 | 29.5 | 76 | 71.1 | 40 | M8 | Die-cast zinc with a black powder coat | 68 | 261 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 76 | 110.9 | 80 | M8 | Die-cast zinc with a black powder coat | 68 | 274 | 350 | 14 | ||||
|
|
|
1 | 29.5 | 76 | 73.9 | 45 | M10 | Die-cast zinc with a black powder coat | 68 | 270 | 470 | 14 | ||||
|
|
|
1 | 29.5 | 76 | 73.9 | 45 | M12 | Die-cast zinc with a black powder coat | 68 | 280 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 76 | 155.9 | 125 | M12 | Die-cast zinc with a black powder coat | 68 | 337 | 770 | 14 | ||||
|
|
|
1 | 29.5 | 76 | 96.9 | 66 | M16 | Die-cast zinc with a black powder coat | 68 | 337 | 1450 | 17 | ||||
|
|
|
1 | 29.5 | 76 | 155.9 | 125 | M16 | Die-cast zinc with a black powder coat | 68 | 415 | 1450 | 17 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
