Anti-Twist Set Screw
Anti-twist set screw for hinges etc.

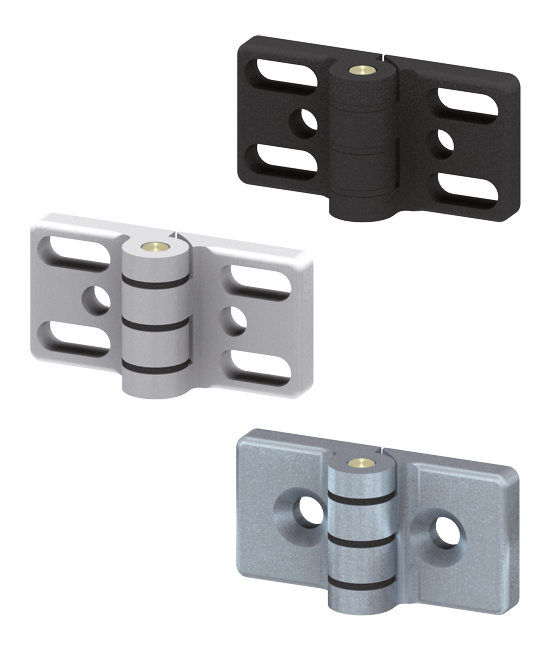

Hinges 40
Application:

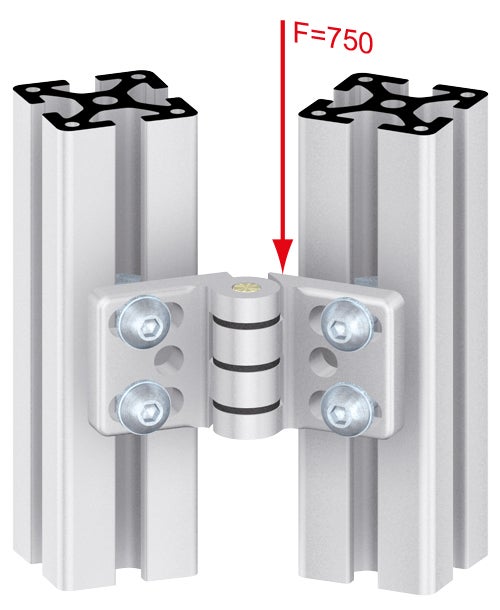

A medium to heavy load hinge for machines and protective guardings.
Supply:
2x anti-twist set screw
SZ0788V includes:
2x special t-nut 2x M 8 / spring-loaded ball
4x button head screw M 8 x 18
4x washer Ø 8 mm
Read more
A medium to heavy load hinge for machines and protective guardings.
Supply:
2x anti-twist set screw
SZ0788V includes:
2x special t-nut 2x M 8 / spring-loaded ball
4x button head screw M 8 x 18
4x washer Ø 8 mm
Product Information
Material: Aluminium, natural anodized, black anodized or GDZn (zinc die casting), black
System: 40 - Slot 8
Type: Hinges
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|

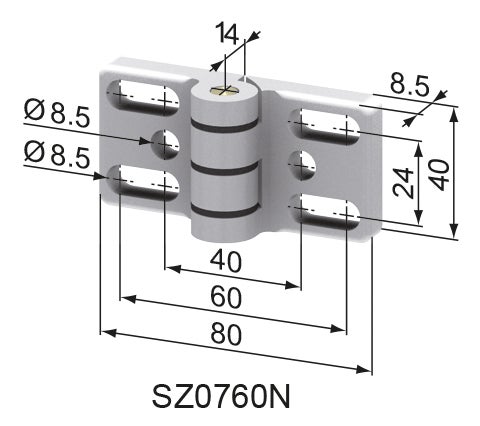

1 | Hinge 40, natural | 40 - Slot 8 | 83 | ||||
|
|
|

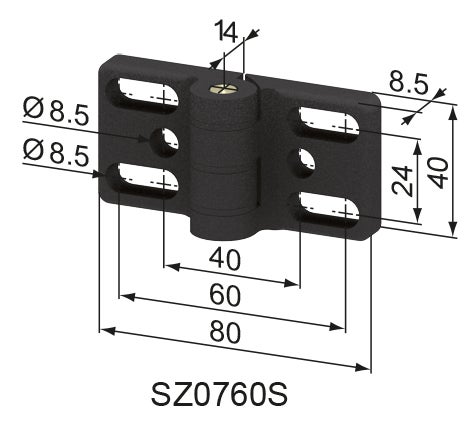

1 | Hinge 40, black | 40 - Slot 8 | 84 | ||||
|
|
|
2 | Hinge 40 GDZn, black | 40 - Slot 8 | 190 | ||||
|
|
|

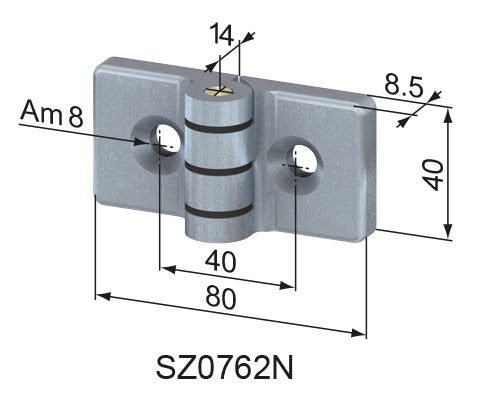

2 | Hinge 40, with countersink Am 8 | 40 - Slot 8 | 104 | ||||
|
|
|
2 | Fixing Set For Hinges 40 | 40 - Slot 8 | 68 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
