Hinges 40
Medium to heavy load hinge for machines etc.

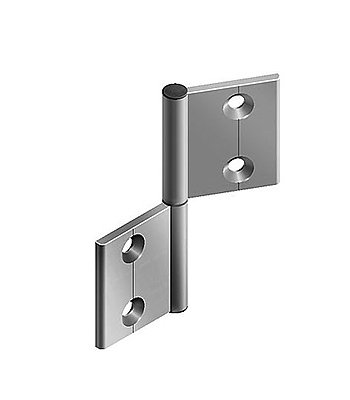

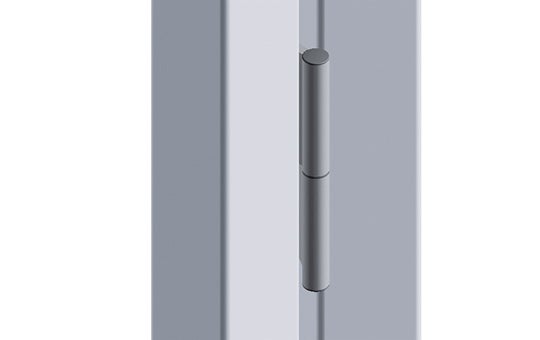

Inside Hinge Element
For surface elements and aluminium profiles. Lets you create your own combination of inside hinges.
To build a complete hinge: 2 x wing; 1 x pin, 2 x cap
On-site mount: M6 slot nut
Mounting instruction: ESD-ready only if using notched slot nuts.
Read more
To build a complete hinge: 2 x wing; 1 x pin, 2 x cap
On-site mount: M6 slot nut
Mounting instruction: ESD-ready only if using notched slot nuts.
Product Information
Material: Aluminium, natural anodized
System: 40 - Slot 8
Type: Hinges
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Description | System | A | B | C | ESD | FAmax (N) | FRmax (N) | Wing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Internal Hinge Set, slot 8 | 40 - Slot 8 | 25 | 42 | 6.4 | Yes | 150 | 100 | 40 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
