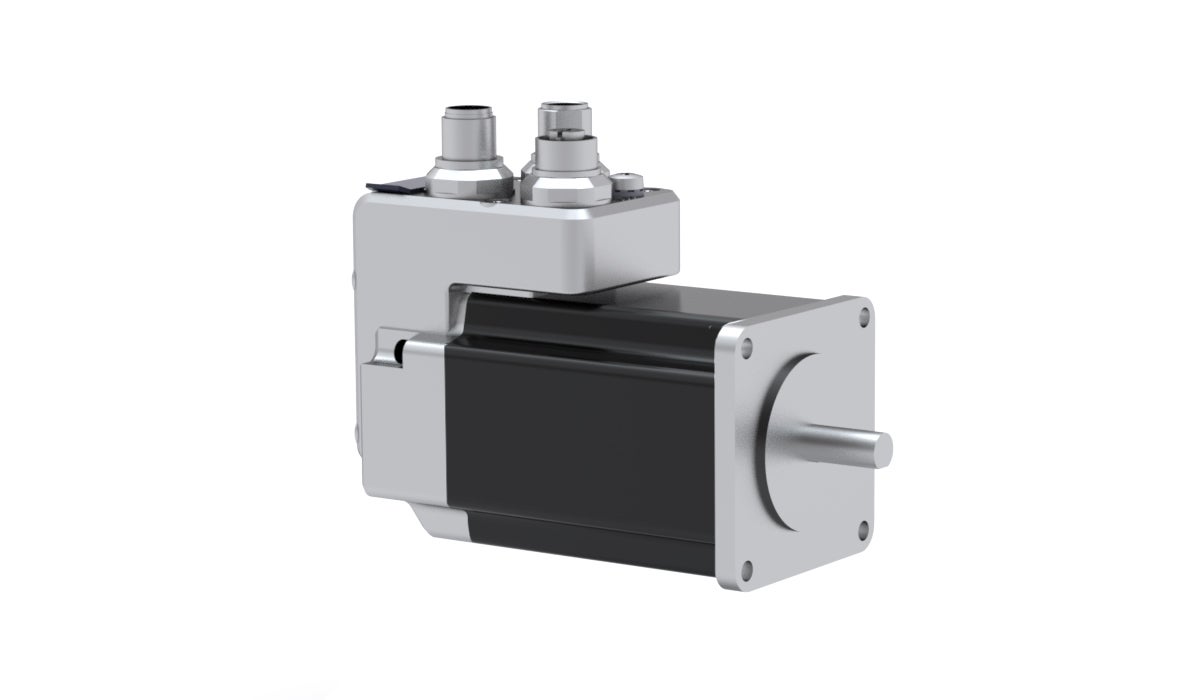

PSD 42 - Shaft 8 mm solid

• Software features: spindle compensation drive, increased breakaway performance, synchronized run
• Software modules for IO-Link: changeover of parameter set, target speed in process data and modulo function
• Protection of internal electronics against manual operation
• Space-saving, compact design
• Galvanically separated supply voltages between control and motor and bus
• Precise position feedback thanks to an absolute measurement system without battery
• Optional gearbox for more torque
• Address may be set using the bus or an address switch (not for IO-Link)
• Status LEDs visible from the outside

Self-holding torque below at approx. 100 mA supply current and 1,2 A phase current, currentless 0 Nm.

Dimensions in mm.

See link Manual(s) for documentation and software.
Read more

Product Information

Type: Horizontal
Nominal Torque (Nm): 2
Nominal Speed (rpm): 200
Nominal Voltage (V DC): 24 (± 10 %)
Nominal Current (A): 4.0
Output Shaft (mm): 8
Output Shaft Type: Solid
Rotation Shaft / Housing: Direct or 0°
BUS Communication: Can Open (CA); IO-Link (IO); ProfiNet (PN); EtherCat (EC); Ethernet IP (EI)
Electrical connection: 0: Standard
Protection Class: IP50; IP65
Motor: Stepper motor
Supply Voltage: 24 V DC ± 10 % galvanically separated between motor and control
Measurement System: Absolute without battery
Accuracy: "±0.7 ° for versions with gearbox; ± 1.8 ° for versions without gearbox"
Intermittence: Start-up duration up to 30%
Manual Adjustment: No
Brake: No
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Nominal Torque (Nm) Nominal Speed (rpm) Nominal Current (A) Self-holding Torque (Nm) Max. Speed (rpm) Positioning Range (rot.)
Get quote 2 2 200 4.0 1 1000 4026

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
