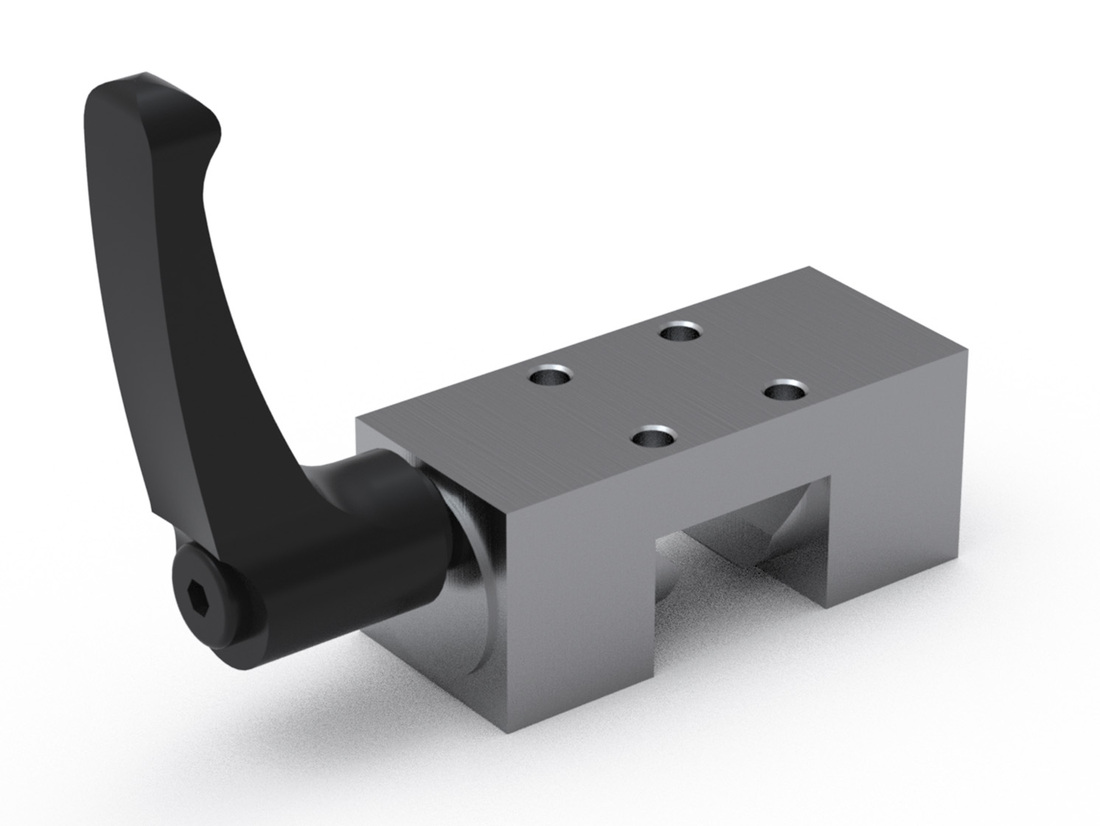

HK Clamping Element
Clamping elements are designed to be used when holding a position on the rail.
Note! As of April 2023, MC Clamping Element for Linear Rail HRC/ERC/ARC are replaced with the new HK Clamping Elements. Please, download the new CAD files below and see document "New HK Clamping Elements" for more information.
Because of the height difference of different rail guide blocks and to ensure the proper function of the HK Clamping Elements, the use of adapter plates is sometimes needed. See document "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.
Compatible with Linear Rail HRC/ARC/ERC only.
Dimensions in mm.
Read more
Note! As of April 2023, MC Clamping Element for Linear Rail HRC/ERC/ARC are replaced with the new HK Clamping Elements. Please, download the new CAD files below and see document "New HK Clamping Elements" for more information.
Because of the height difference of different rail guide blocks and to ensure the proper function of the HK Clamping Elements, the use of adapter plates is sometimes needed. See document "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.
Compatible with Linear Rail HRC/ARC/ERC only.
Dimensions in mm.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Remark | Holding Force (N) | Tightening Torque (Nm) | Weight (kg) | Max. Length Clamping | Size | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Use Distance Plate PHK15-4 for HRC15MN and HRC15ML. | 1200 | 5.00 | 0.14 | 24 | 15 | ||||
|
|
|
2 | - | 750 | 4.00 | 0.14 | 24 | 20 | ||||
|
|
|
2 | - | 1200 | 5.00 | 0.22 | 24 | 20 | ||||
|
|
|
1 | - | 750 | 4.00 | 0.14 | 24 | 25 | ||||
|
|
|
1 | Use Distance Plate PHK25-4 for HRC25MN and HRC25ML. | 1200 | 7.00 | 0.39 | 30 | 25 | ||||
|
|
|
2 | Use Distance Plate PHK30-3 for HRC30MN and HRC30ML. | 2000 | 15.00 | 0.77 | 39 | 30 | ||||
|
|
|
2 | Use Distance Plate PMK35-7 for HRC35MN and HRC35ML. | 2000 | 15.00 | 0.96 | 39 | 35 | ||||
|
|
|
2 | Use Distance Plate PHK45-10 for HRC45MN and HRC45ML. | 2000 | 15.00 | 1.4 | 44 | 45 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | A | C | B | H1 | N3 | S2 | E1 | E2 | E3 | L | L1 | L2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
47 | 13.3 | 24 | 17.5 | 5 | M4 | 17 | 17 | 4 | 44 | 30.5 | 33.5 | ||||
|
|
|
42 | 14.3 | 24 | 18 | 5 | M5 | 15 | 15 | 4.5 | 44 | 30.5 | 33.5 | ||||
|
|
|
60 | 17.5 | 24 | 23 | 6 | M5 | 15 | 15 | 4.5 | 44 | 30.5 | 33.5 | ||||
|
|
|
42 | 14.3 | 24 | 18 | 5 | M5 | 15 | 15 | 4.5 | 44 | 30.5 | 33.5 | ||||
|
|
|
70 | 22.3 | 30 | 29 | 7 | M6 | 20 | 20 | 5 | 63 | 38.5 | 41.5 | ||||
|
|
|
90 | 23.6 | 39 | 32 | 8 | M6 | 22 | 22 | 8.5 | 78 | 46.5 | 50.5 | ||||
|
|
|
100 | 31 | 39 | 41 | 10 | M8 | 24 | 24 | 7.5 | 78 | 46.5 | 50.5 | ||||
|
|
|
120 | 32.6 | 44 | 44 | 14 | M10 | 26 | 26 | 9 | 78 | 46.5 | 50.5 |
-
-
