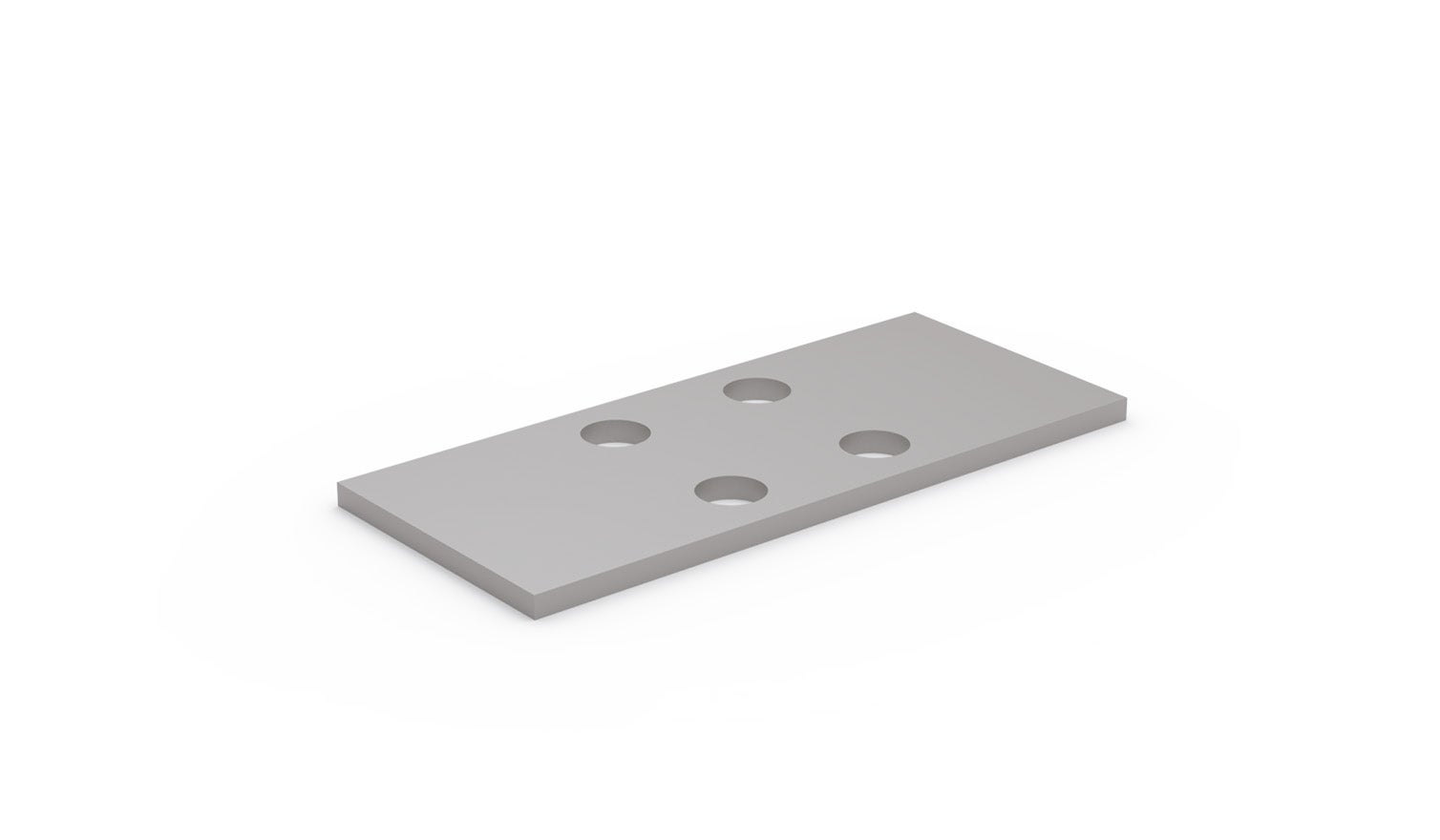

Adapter Plate for MK & MKS Clamping Elements
To compensate for different block heights. Compatible with Linear Rail HRC/ARC/ERC.
MK Clamping Element
Pneumatic clamping element, designed to be used for holding a position when using linear rail guides. Energize to close (NO).
Compatible with Linear Rail HRC/ARC/ERC only.
Because of the height difference of different rail guide blocks and to ensure the proper function of the MK Clamping Elements, the use of adapter plates is sometimes needed. See document "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.
Dimensions in mm.
For other types contact Rollco.
Read more
Compatible with Linear Rail HRC/ARC/ERC only.
Because of the height difference of different rail guide blocks and to ensure the proper function of the MK Clamping Elements, the use of adapter plates is sometimes needed. See document "Selection of Clamping Elements" for individual block types and whether an adapter plate is needed.
Dimensions in mm.
For other types contact Rollco.
Product Information
Temperature range (°C): 0 - 70
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Fixing force (N) | Operating pressure (bar) | Max. Operating Pressure (bar) | Installation way | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | HRC15, HRU15 | 650 | 6 | 6.5 | from above | ||||
|
|
|
2 | HRC20, HRU20 | 700 | 6 | 6.5 | from above | ||||
|
|
|
2 | HRC25, HRU25 | 1200 | 6 | 6.5 | from above | ||||
|
|
|
2 | HRC30, HRU30 | 1750 | 6 | 6.5 | from above | ||||
|
|
|
2 | HRC35, HRU35 | 2000 | 6 | 6.5 | from above | ||||
|
|
|
2 | HRC45, HRU45 | 2250 | 6 | 6.5 | from above |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | OW | D | T | A | C | X | E | A1 | A2 | B1 | B2 | B3 | G | H | F | W1 (SW air filter) | G1 (air connection) | X1 (air filter horizontal / mm) | Y1 (air filter vertical / mm) | X2 (air connection horizontal / mm) | Y2 (air connection vertical / mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
13 | 24 | 0 | 55 | 2.5 | 24 | 21.5 | 15 | 5 | 39 | 15 | 15.5 | M4 | 4.5 | 8 | 7 | M5 | 34 | 17 | 34 | 6.1 | ||||
|
|
|
16.75 | 30 | 2 | 66 | 3.5 | 28 | 24.5 | 20 | 6 | 39 | 20 | 10 | M5 | 4.2 | 8 | 7 | M5 | 35 | 21 | 34 | 5.2 | ||||
|
|
|
19.75 | 36 | 0 | 75 | 8 | 36 | 28 | 20 | 5 | 35 | 20 | 5 | M6 | 8 | 8 | 7 | M5 | 30.5 | 4.7 | 17.5 | 4.7 | ||||
|
|
|
24.6 | 42 | 0 | 90 | 7 | 42 | 35 | 22 | 5 | 39 | 22 | 8.5 | M8 | 7 | 8 | 7 | M5 | 24.5 | 5.2 | 14.5 | 5.2 | ||||
|
|
|
31.8 | 48 | 0 | 100 | 11.5 | 48 | 36.5 | 24 | 5 | 39 | 24 | 7.5 | M10 | 10 | 8 | 7 | M5 | 20 | 5.2 | 9 | 5.2 | ||||
|
|
|
42 | 60 | 0 | 120 | 16.5 | 60 | 43.5 | 26 | 5 | 49 | 26 | 11.5 | M10 | 15 | 8 | 7 | M5 | 29.5 | 11 | 19.5 | 11 |
-
MKS Clamping Element
Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail HRC/ARC/ERC. -
HK Clamping Element

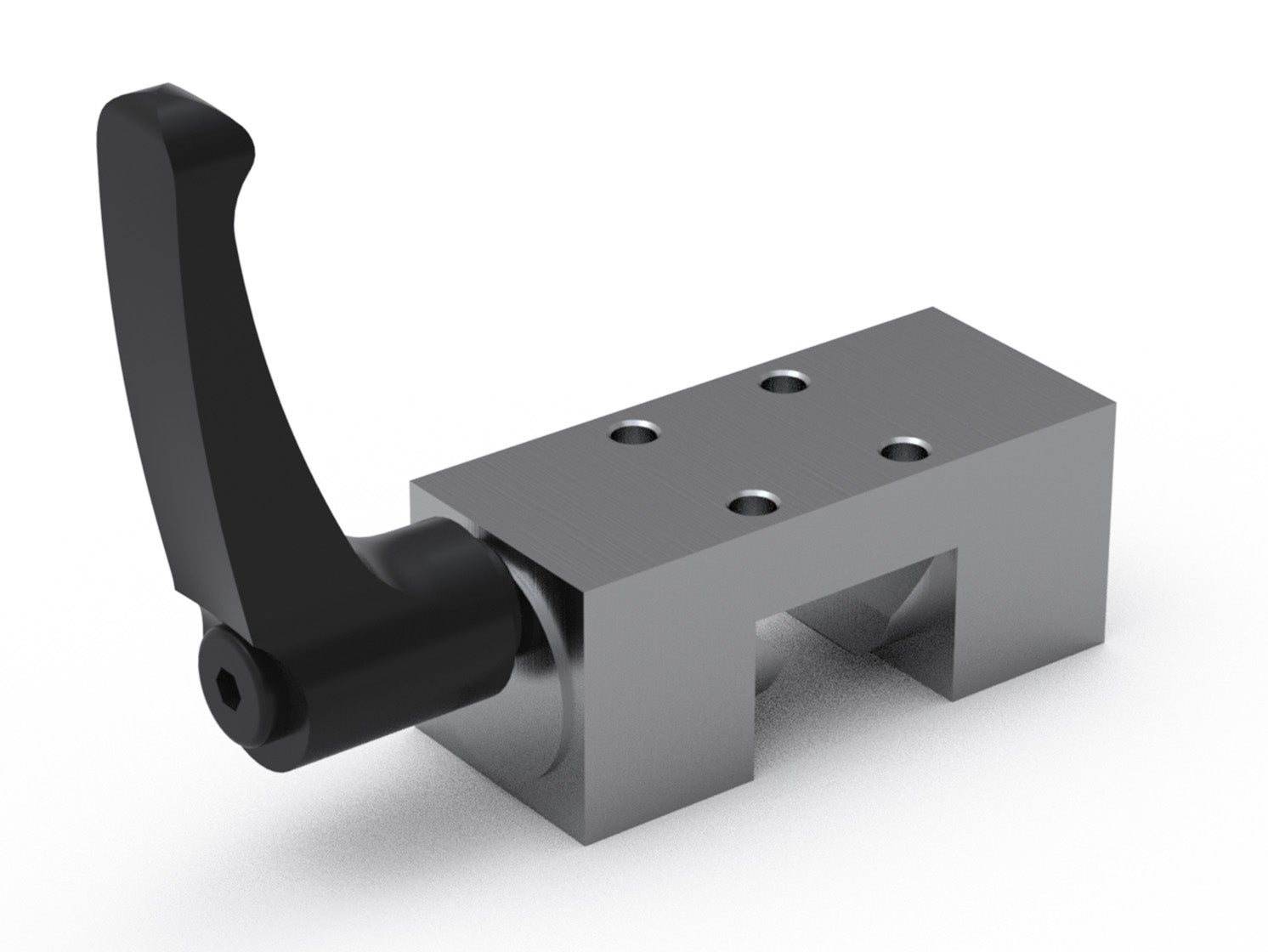

Manually operated clamping element. Compatible with Linear Rail HRC/ARC/ERC.
