MK Clamping Element
Pneumatic clamping element, normally open. Compatible with Linear Rail SBI.

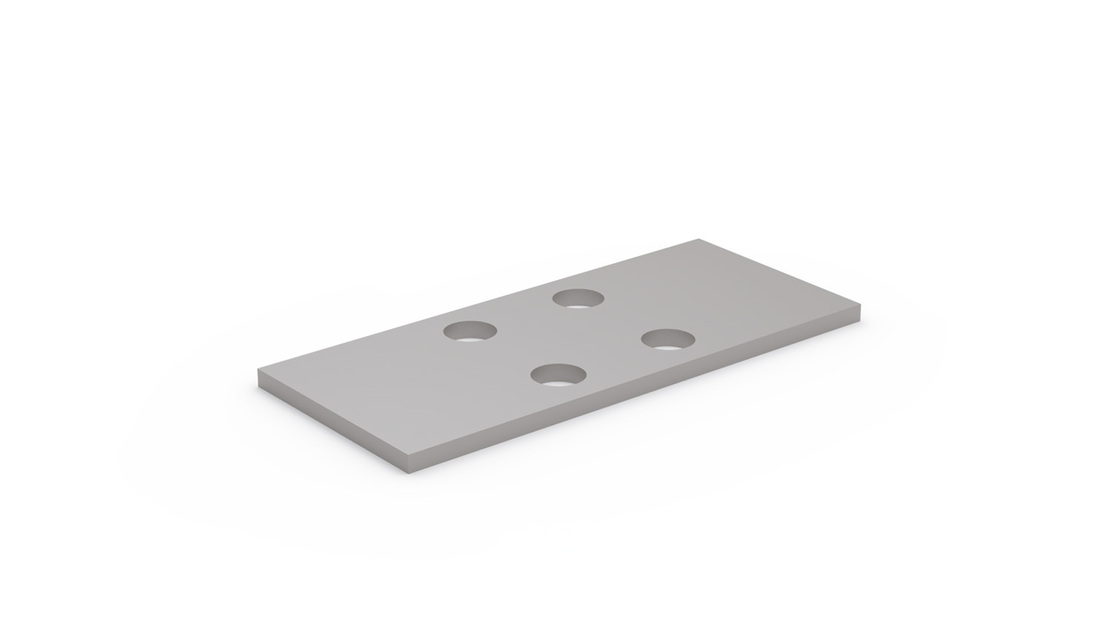

Adapter Plate for MK & MKS Clamping Elements
Because of the height difference of different rail guide blocks and to ensure the proper function of the MK and MKS Clamping Elements, the use of adapter plates is sometimes needed. See "Clamping Elements and Accessories" for individual block types and whether an adapter plate is needed.
Compatible with Linear Rail SBI only.
Dimensions in mm.
Read more
Compatible with Linear Rail SBI only.
Dimensions in mm.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Remark | Recommended screw size | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | MK1501A and MKS1501A | Use Distance Plate PMK15-4 for SBI15SL, SBI15SLL | M4 | ||||
|
|
|
2 | MK2001A and MKS2001A | Use Distance Plate PMK20-2-A for SBI20FL, SBI20FLL, SBI20SL, SBI20SLL | M6 | ||||
|
|
|
2 | MK2501A and MKS2501A | Use Distance Plate PMK25-2 for SBI25FL, SBI25FLL, SBI25HL, SBI25HLL | M6 | ||||
|
|
|
2 | MK2501A and MKS2501A | Use Distance Plate PMK25-6 for SBI25SL, SBI25SLL | M6 | ||||
|
|
|
2 | MK3001A and MKS3001A | Use Distance Plate PMK25-6 for SBI30SL, SBI30SLL | M8 | ||||
|
|
|
2 | MK3501A and MKS3501A | Use Distance Plate PMK35-4 for SBI35FL, SBI35FLL, SBI35HL, SBI35HLL | M8 | ||||
|
|
|
2 | MK3501A and MKS3501A | Use Distance Plate PMK35-11 for SBI35SL, SBI35SLL | M8 | ||||
|
|
|
2 | MK4501A and MKS4501A | Use Distance Plate PMK45-6 for SBI45FL, SBI45FLL, SBI45HL, SBI45HLL | M10 | ||||
|
|
|
2 | MK4501A and MKS4501A | Use Distance Plate PMK45-16 for SBI45SL, SBI45SLL | M10 | ||||
|
|
|
2 | MK5501A and MKS5501A | Use Distance Plate PMK55-6 for SBI55FL, SBI55FLL, SBI55HL, SBI55HLL | M10 | ||||
|
|
|
2 | MK5501A and MKS5501A | Use Distance Plate PMK55-16 for SBI55SL, SBI55SLL | M10 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | H | L | P1 | P2 | P3 | P4 | W | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
4 | 39 | 15 | 15 | 4.5 | 15.5 | 55 | ||||
|
|
|
2 | 30 | 20 | 20 | 6.5 | 5 | 66 | ||||
|
|
|
2 | 35 | 20 | 20 | 6.5 | 5 | 75 | ||||
|
|
|
6 | 35 | 20 | 20 | 6.5 | 5 | 75 | ||||
|
|
|
3 | 39 | 22 | 22 | 8.5 | 8.5 | 90 | ||||
|
|
|
4 | 39 | 24 | 24 | 8.5 | 7.5 | 100 | ||||
|
|
|
11 | 39 | 24 | 24 | 8.5 | 7.5 | 100 | ||||
|
|
|
6 | 49 | 26 | 26 | 10.5 | 11.5 | 120 | ||||
|
|
|
16 | 49 | 26 | 26 | 10.5 | 11.5 | 120 | ||||
|
|
|
6 | 49 | 30 | 30 | 10.5 | 9.5 | 128 | ||||
|
|
|
16 | 49 | 30 | 30 | 10.5 | 9.5 | 128 |
-
-
MKS Clamping Element
Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail SBI.
