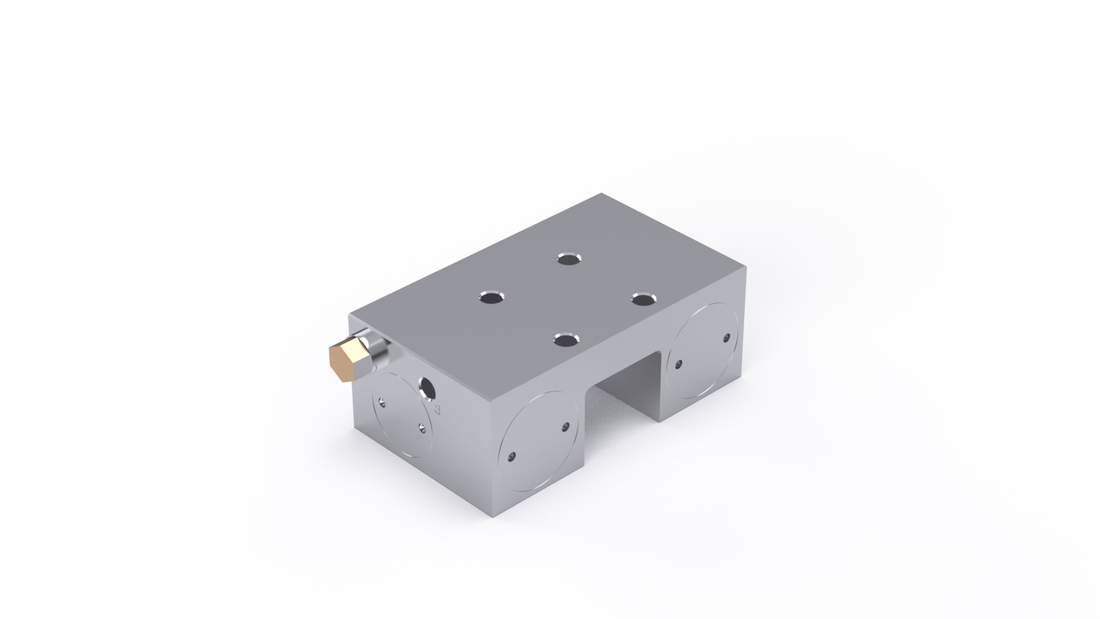

MK Clamping Element
Pneumatic Clamping element, designed to be used for holding a position when using Linear Rail Guides. Energize to close (NO).
Compatible with Linear Rail SBI only.
Because of the height difference of different rail guide blocks and to ensure the proper function of the MK Clamping Elements, the use of adapter plates is sometimes needed. See document "Clamping Elements & Accessories" for individual block types and whether an adapter plate is needed.
Dimensions in mm.
More types are available, contact Rollco for further information.
Read more
Compatible with Linear Rail SBI only.
Because of the height difference of different rail guide blocks and to ensure the proper function of the MK Clamping Elements, the use of adapter plates is sometimes needed. See document "Clamping Elements & Accessories" for individual block types and whether an adapter plate is needed.
Dimensions in mm.
More types are available, contact Rollco for further information.
Product Information
Temperature: -10 - 70°C
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Fixing force (N) | Operating pressure (bar) | Max. Operating Pressure (bar) | Installation way | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | SBI15, SBI15-B | 650 | 6 | 6.5 | from above | ||||
|
|
|
2 | SBI20, SBI20-B | 1000 | 6 | 6.5 | from above | ||||
|
|
|
1 | SBI25, SBI25-B | 1200 | 6 | 6.5 | from above | ||||
|
|
|
2 | SBI30, SBI30-B | 1750 | 6 | 6.5 | from above | ||||
|
|
|
2 | SBI35, SBI35-B | 2000 | 6 | 6.5 | from above | ||||
|
|
|
2 | SBI45, SBI45-B | 2250 | 6 | 6.5 | from above | ||||
|
|
|
2 | SBI55, SBI55-B | 2250 | 6 | 6.5 | from above | ||||
|
|
|
2 | SBI65, SBI65-B | 2250 | 6 | 6.5 | from above |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | OW | D | T | A | C | X | E | A1 | A2 | B1 | B2 | B3 | G | H | F | W1 (SW air filter) | G1 (air connection) | X1 (air filter horizontal / mm) | Y1 (air filter vertical / mm) | X2 (air connection horizontal / mm) | Y2 (air connection vertical / mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
15 | 24 | 0 | 55 | 2.5 | 24 | 21.5 | 15 | 5 | 39 | 15 | 15.5 | M4 | 4.5 | 8 | 7 | M5 | 34 | 17 | 34 | 6.1 | ||||
|
|
|
20 | 28 | 0 | 66 | 2.5 | 28 | 25.5 | 20 | 6 | 39 | 20 | 5 | M5 | 5.5 | 8 | 7 | M5 | 34 | 6 | 17.1 | 6 | ||||
|
|
|
23 | 36 | 2 | 75 | 6 | 34 | 28 | 20 | 5 | 35 | 20 | 5 | M6 | 8 | 8 | 7 | M5 | 34 | 4.7 | 17.5 | 4.7 | ||||
|
|
|
28 | 45 | 3 | 90 | 7 | 42 | 35 | 22 | 5 | 39 | 22 | 8.5 | M8 | 10 | 8 | 7 | M5 | 24.5 | 5.2 | 14.5 | 5.2 | ||||
|
|
|
34 | 48 | 4 | 100 | 7.5 | 44 | 36.5 | 24 | 5 | 39 | 24 | 7.5 | M8 | 10 | 8 | 7 | M5 | 20 | 5.2 | 9 | 5.2 | ||||
|
|
|
45 | 60 | 6 | 120 | 10.5 | 54 | 43.5 | 26 | 5 | 49 | 26 | 11.5 | M10 | 15 | 8 | 7 | M5 | 29.5 | 11 | 19.5 | 11 | ||||
|
|
|
53 | 70 | 6 | 128 | 15.5 | 64 | 48.5 | 30 | 5 | 49 | 30 | 9.5 | M10 | 18 | 8 | 7 | M5 | 29.5 | 14.5 | 19.5 | 14.5 | ||||
|
|
|
63 | 90 | 0 | 138 | 27 | 90 | 63 | 30 | 5 | 49 | 30 | 9.5 | M10 | 15 | 5 | 7 | M5 | 37 | 32 | 20 | 30 |
-
