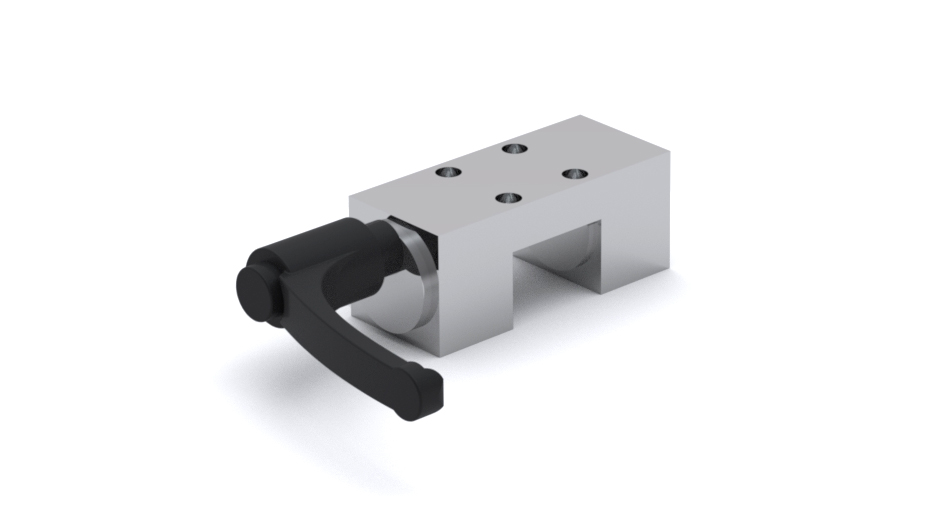

RCS Clamping Element

STOCK ITEM
Clamping elements are designed to be used for holding a position when using SBI Linear Rail Guides.

For other types contact Rollco.

Compatible with Linear Rail SBI only.

Dimensions in mm.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Compatible with Remark Tightening Torque (Nm) Clamping Force (N)
Get quote 1 SBI15, SBI15-B Use Distance Plate RCP15-4 for SBI15SL 5 1200
Get quote 1 SBI20, SBI20-B Use Distance Plate RCP20-2 for SBI20FL, SBI20SL, SBI20FLL, SBI20SLL 5 1200
Get quote 1 SBI25, SBI25-B Use Distance Plate RCP25-4 for SBI25SL, SBI25SLL 7 1200
Get quote 1 SBI30, SBI30-B Use Distance Plate RCP30-3 for SBI30SL, SBI30SLL 15 2000
Get quote 1 SBI35, SBI35-B Use Distance Plate RCP35-7 for SBI35SL, SBI35SLL 15 2000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote C E H H1 L MxDP P1 P2 P3 W
Get quote 6.5 4 24 45 25 M4x6 17 17 41 47
Get quote 7 4.5 30 45 24 M5x6 15 15 41 60
Get quote 7 5 36 64 30 M6x8 20 20 52 70
Get quote 9 8.5 42 64 39 M6x14 22 22 52 90
Get quote 13 7.5 48 83 39 M8x14 24 24 67 100
  • STOCK ITEM
  • STOCK ITEM

    MKS Clamping Element
    Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail SBI.
