Designation
Select all
CAD
Compare
Get quote
Lead Time *
Carriage Length Lv (mm)
Dynamic Moment Mx (Nm)
Dynamic Moment My (Nm)
Dynamic Moment Mz (Nm)
Dynamic Load Capacity C (N)
Static Load Capacity C0 (N)
Max. Permissible Loads Forces Fpy (N)
Max. Permissible Loads Forces Fpz (N)
Max. Permissible Loads Moments Mpx (Nm)
Max. Permissible Loads Moments Mpy (Nm)
Max. Permissible Loads Moments Mpz (Nm)
Moved Mass (kg)
Max. Repeatability (mm)
Max. Length Lmax (mm)
Max. Stroke (mm)
Min. Stroke (mm)

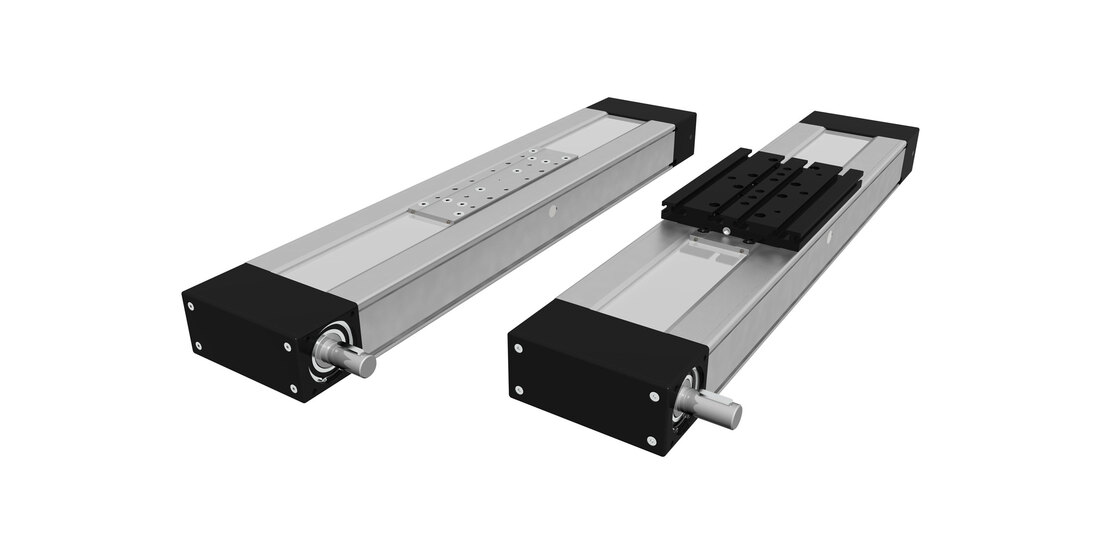

CTJ 110 S
Get quote
2
170
610
118
235
19800
35000
6470
8390
260
90
90
0.64
± 0.08
6000
5805
40
CTJ 110 L
Get quote
2
215
1225
1680
1680
39600
70000
13070
18820
525
880
550
0.98
± 0.08
6000
5760
40
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
Sort:Designation (A-Z) Designation (A-Z) Designation (Z-A) Select all (A-Z) Select all (Z-A) Carriage version (A-Z) Carriage version (Z-A) Dynamic Load Capacity C (N) (A-Z) Dynamic Load Capacity C (N) (Z-A) Static Load Capacity C0 (N) (A-Z) Static Load Capacity C0 (N) (Z-A) Dynamic Moment Mx (Nm) (A-Z) Dynamic Moment Mx (Nm) (Z-A) Dynamic Moment My (Nm) (A-Z) Dynamic Moment My (Nm) (Z-A) Dynamic Moment Mz (Nm) (A-Z) Dynamic Moment Mz (Nm) (Z-A) Max. Permissible Loads Forces Fpy (N) (A-Z) Max. Permissible Loads Forces Fpy (N) (Z-A) Max. Permissible Loads Forces Fpz (N) (A-Z) Max. Permissible Loads Forces Fpz (N) (Z-A) Max. Permissible Loads Moments Mpx (Nm) (A-Z) Max. Permissible Loads Moments Mpx (Nm) (Z-A) Max. Permissible Loads Moments Mpy (Nm) (A-Z) Max. Permissible Loads Moments Mpy (Nm) (Z-A) Max. Permissible Loads Moments Mpz (Nm) (A-Z) Max. Permissible Loads Moments Mpz (Nm) (Z-A)
Designation
Select all
CAD
Compare
Get quote
Carriage version
Dynamic Load Capacity C (N)
Static Load Capacity C0 (N)
Dynamic Moment Mx (Nm)
Dynamic Moment My (Nm)
Dynamic Moment Mz (Nm)
Max. Permissible Loads Forces Fpy (N)
Max. Permissible Loads Forces Fpz (N)
Max. Permissible Loads Moments Mpx (Nm)
Max. Permissible Loads Moments Mpy (Nm)
Max. Permissible Loads Moments Mpz (Nm)
CTJ 110 S
Get quote
S2
39600
70000
1220
19.8 × A (mm)
19.8 × A (mm)
12940
16770
520
8.4 × A (mm)
6.5 × A (mm)
CTJ 110 L
Get quote
S2
39600
70000
1220
19.8 × A (mm)
19.8 × A (mm)
12940
16770
520
8.4 × A (mm)
6.5 × A (mm)
Sort:Designation (A-Z) Designation (A-Z) Designation (Z-A) Select all (A-Z) Select all (Z-A) Max. Travel Speed (m/s) (A-Z) Max. Travel Speed (m/s) (Z-A) No Load Torque (Nm) (A-Z) No Load Torque (Nm) (Z-A) Pulley Drive Ratio (mm/rev) (A-Z) Pulley Drive Ratio (mm/rev) (Z-A) Pulley Diameter (A-Z) Pulley Diameter (Z-A) Belt Type (A-Z) Belt Type (Z-A) Belt Width (A-Z) Belt Width (Z-A) Max. Force Transmitted by Belt (N) (A-Z) Max. Force Transmitted by Belt (N) (Z-A) Specific Spring Constant Cspec (N) (A-Z) Specific Spring Constant Cspec (N) (Z-A) Max. Drive Torque (Nm) (A-Z) Max. Drive Torque (Nm) (Z-A) Planar Moment of Inertia ly (cm⁴) (A-Z) Planar Moment of Inertia ly (cm⁴) (Z-A) Planar Moment of Inertia lz (cm⁴) (A-Z) Planar Moment of Inertia lz (cm⁴) (Z-A)
Designation
Select all
CAD
Compare
Get quote
Max. Travel Speed (m/s)
No Load Torque (Nm)
Pulley Drive Ratio (mm/rev)
Pulley Diameter
Belt Type
Belt Width
Max. Force Transmitted by Belt (N)
Specific Spring Constant Cspec (N)
Max. Drive Torque (Nm)
Planar Moment of Inertia ly (cm⁴)
Planar Moment of Inertia lz (cm⁴)
CTJ 110 S
Get quote
6
0.98 × nc
120
38.2
AT 5
50
820
960000
15.7
31.1
217.2
CTJ 110 L
Get quote
6
1.00 × nc
120
38.2
AT 5
50
820
960000
15.7
31.1
217.2
Sort:Designation (A-Z) Designation (A-Z) Designation (Z-A) Select all (A-Z) Select all (Z-A) Mass of Linear Unit (kg) (A-Z) Mass of Linear Unit (kg) (Z-A) Mass Moment of Inertia (10⁻⁵ kg m²) (A-Z) Mass Moment of Inertia (10⁻⁵ kg m²) (Z-A) Planar Moment of Inertia ly (cm⁴) (A-Z) Planar Moment of Inertia ly (cm⁴) (Z-A) Planar Moment of Inertia lz (cm⁴) (A-Z) Planar Moment of Inertia lz (cm⁴) (Z-A) Moved Mass (kg) (A-Z) Moved Mass (kg) (Z-A) No Load Torque (Nm) (A-Z) No Load Torque (Nm) (Z-A)
Designation
Select all
CAD
Compare
Get quote
Mass of Linear Unit (kg)
Mass Moment of Inertia (10⁻⁵ kg m²)
Planar Moment of Inertia ly (cm⁴)
Planar Moment of Inertia lz (cm⁴)
Moved Mass (kg)
No Load Torque (Nm)
CTJ 110 S
Get quote
3.6 + 0.0072 × (Abs. Stroke + (nc - 1) × A) + 0.64 × (nc - 1)
36 + 0.0125 × (Abs. Stroke + (nc - 1) × A) + 23.3 × (nc - 1)
31.1
217.2
0.64
0.98 × nc
CTJ 110 L
Get quote
4.2 + 0.0072 × (Abs. Stroke + (nc - 1) × A) + 0.98 × (nc - 1)
49 + 0.0125 × (Abs. Stroke + (nc - 1) × A) + 35.8 × (nc - 1)
31.1
217.2
0.98
1.00 × nc
