SGS

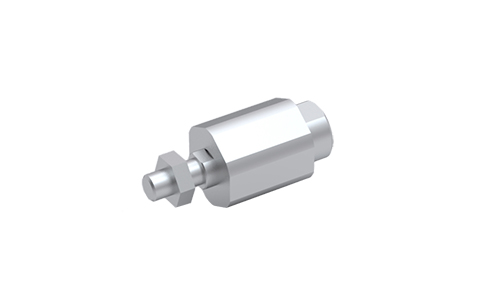

Piston rod accessory SGS, galvanized or stainless steel AISI 304
FK
Dimensions in mm.
Read more
Product Information
Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | FK 32 | PNCE 32 | F PNCE | 0.22 | ||||
|
|
|
2 | FK 40 | PNCE 40 | 5000 | 0.23 | ||||
|
|
|
2 | FK 50 | PNCE 50 | 10000 | 0.66 | ||||
|
|
|
2 | FK 63 | PNCE 63 | 10000 | 0.66 | ||||
|
|
|
2 | FK 80 | PNCE 80 | 10000 | 0.7 | ||||
|
|
|
2 | FK 100 | PNCE 100 | 10000 | 0.7 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | M | L1 | L2 | L3 | L4 | L5 | L6 | A | D | CH1 | CH2 | CH3 | CH4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Ø M10 × 1.25 | 71 | 35 | 20 | 11 | 23 | Ø 32 | 6 | Ø 22 | 30 | 19 | 17 | 12 | ||||
|
|
|
Ø M12 × 1.25 | 75 | 35 | 24 | 11 | 23 | Ø 32 | 7 | Ø 22 | 30 | 19 | 19 | 12 | ||||
|
|
|
Ø M16 × 1.5 | 103 | 54 | 32 | 9 | 32 | Ø 45 | 8 | Ø 32 | 41 | 27 | 24 | 20 | ||||
|
|
|
Ø M16 × 1.5 | 103 | 54 | 32 | 9 | 32 | Ø 45 | 8 | Ø 32 | 41 | 27 | 24 | 20 | ||||
|
|
|
Ø M20 × 1.5 | 119 | 54 | 40 | 17 | 39 | Ø 45 | 9 | Ø 32 | 41 | 27 | 30 | 20 | ||||
|
|
|
Ø M20 × 1.5 | 119 | 54 | 40 | 17 | 39 | Ø 45 | 9 | Ø 32 | 41 | 27 | 30 | 20 |
