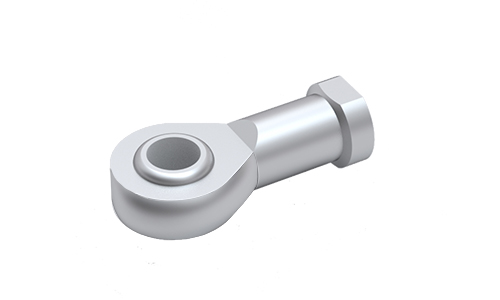

Piston rod accessory SG, galvanized or stainless steel AISI 30
SGS
Dimensions in mm.
Read more
Product Information
Material: Galvanized or stainless steel AISI 304
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | SGS 32 | PNCE 32 | Galvanized steel | F PNCE | 0.08 | ||||
|
|
|
2 | SGS 32 CR | PNCE 32 | Stainless steel AISI 304 | F PNCE | 0.08 | ||||
|
|
|
2 | SGS 40 | PNCE 40 | Galvanized steel | F PNCE | 0.11 | ||||
|
|
|
2 | SGS 40 CR | PNCE 40 | Stainless steel AISI 304 | F PNCE | 0.11 | ||||
|
|
|
2 | SGS 50 | PNCE 50 | Galvanized steel | F PNCE | 0.22 | ||||
|
|
|
2 | SGS 50 CR | PNCE 50 | Stainless steel AISI 304 | F PNCE | 0.22 | ||||
|
|
|
2 | SGS 63 | PNCE 63 | Galvanized steel | F PNCE | 0.22 | ||||
|
|
|
2 | SGS 63 CR | PNCE 63 | Stainless steel AISI 304 | F PNCE | 0.22 | ||||
|
|
|
2 | SGS 80 | PNCE 80 | Galvanized steel | F PNCE | 0.41 | ||||
|
|
|
2 | SGS 80 CR | PNCE 80 | Stainless steel AISI 304 | F PNCE | 0.41 | ||||
|
|
|
2 | SGS 100 | PNCE 100 | Galvanized steel | F PNCE | 0.41 | ||||
|
|
|
2 | SGS 100 CR | PNCE 100 | Stainless steel AISI 304 | F PNCE | 0.41 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | M | L1 | L2 | L3 | L4 | L5 | D1 | D2 | R | CH | Z | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Ø M10 × 1.25 | 57 | 43 | 14 | 10.5 | 20 | Ø 10 (H7) | Ø 19 | 14 | 17 | 13° | ||||
|
|
|
Ø M10 × 1.25 | 57 | 43 | 14 | 10.5 | 20 | Ø 10 (H7) | Ø 19 | 14 | 17 | 13° | ||||
|
|
|
Ø M12 × 1.25 | 66 | 50 | 16 | 12 | 22 | Ø 12 (H7) | Ø 22 | 16 | 19 | 13° | ||||
|
|
|
Ø M12 × 1.25 | 66 | 50 | 16 | 12 | 22 | Ø 12 (H7) | Ø 22 | 16 | 19 | 13° | ||||
|
|
|
Ø M16 × 1.5 | 85 | 64 | 21 | 15 | 28 | Ø 16 (H7) | Ø 27 | 21 | 22 | 15° | ||||
|
|
|
Ø M16 × 1.5 | 85 | 64 | 21 | 15 | 28 | Ø 16 (H7) | Ø 27 | 21 | 22 | 15° | ||||
|
|
|
Ø M16 × 1.5 | 85 | 64 | 21 | 15 | 28 | Ø 16 (H7) | Ø 27 | 21 | 22 | 15° | ||||
|
|
|
Ø M16 × 1.5 | 85 | 64 | 21 | 15 | 28 | Ø 16 (H7) | Ø 27 | 21 | 22 | 15° | ||||
|
|
|
Ø M20 × 1.5 | 102 | 77 | 25 | 18 | 33 | Ø 20 (H7) | Ø 34 | 25 | 30 | 14° | ||||
|
|
|
Ø M20 × 1.5 | 102 | 77 | 25 | 18 | 33 | Ø 20 (H7) | Ø 34 | 25 | 30 | 14° | ||||
|
|
|
Ø M20 × 1.5 | 102 | 77 | 25 | 18 | 33 | Ø 20 (H7) | Ø 34 | 25 | 30 | 14° | ||||
|
|
|
Ø M20 × 1.5 | 102 | 77 | 25 | 18 | 33 | Ø 20 (H7) | Ø 34 | 25 | 30 | 14° |
