DE..63

LOCALLY MANUFACTURED 747-1439 kg/pair
Full extension consisting of two guide rails, combined as double-T profile, form the intermediate element, and two sliders, which as fixed and movable element form the connection to the adjacent construction. The square cross-section allows a compact size with high load capacities and low deflection, especially with radial loading. A custom design is available for extensions with double-sided strokes. The simultaneous movement of the intermediate element is implemented with a driving disc.

There are three versions of fixing holes available for the DE series in sizes 22 to 43:
• Version DEF with threaded holes.
• Version DEV with countersunk holes.
• Version DEM, both variants (mixed).
• Size 63 is always with threaded holes.

Custom Design DE Version D
The eccentrically located driving disc on both ends of the DE...D ensures that the intermediate element is carried along and does not remain standing at an undefined location during double-sided strokes. This custom design is available in sizes 28, 35, 43 and 63 with all three versions of the fixing holes. It is built on the standard design of the DE series, however deviates in the technical data based on the model. For CAD-files or more information please contact Rollco.

Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.

System Load Capacity Radial and System Load Capacity Axial values refers to a pair of rails. Dimensions in mm.

See Technical Information for further details, operating conditions and installation instructions.
Read more
Designation Select all CAD Compare Get quote Lead Time * Length Stroke Weight (kg/m) System Load Capacity Radial (N) System Load Capacity Axial (N) Number of Fixing Holes
Get quote 2 610 666 20.6 8180 5726 8
Get quote 2 690 746 20.6 9718 6124 9
Get quote 2 770 826 20.6 11270 5568 10
Get quote 2 850 906 20.6 12830 5106 11
Get quote 2 930 986 20.6 14396 4714 12
Get quote 2 1010 1066 20.6 13770 4378 13
Get quote 2 1090 1146 20.6 12854 4086 14
Get quote 2 1170 1226 20.6 12052 3832 15
Get quote 2 1250 1306 20.6 11344 3606 16
Get quote 2 1330 1386 20.6 10714 3406 17
Get quote 2 1410 1466 20.6 10152 3228 18
Get quote 2 1490 1546 20.6 9644 3066 19
Get quote 2 1570 1626 20.6 9186 2920 20
Get quote 2 1650 1706 20.6 8768 2788 21
Get quote 2 1730 1786 20.6 8388 2666 22
Get quote 2 1810 1866 20.6 8038 2556 23
Get quote 2 1890 1946 20.6 7718 2454 24
Get quote 2 1970 2026 20.6 7420 2360 25

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

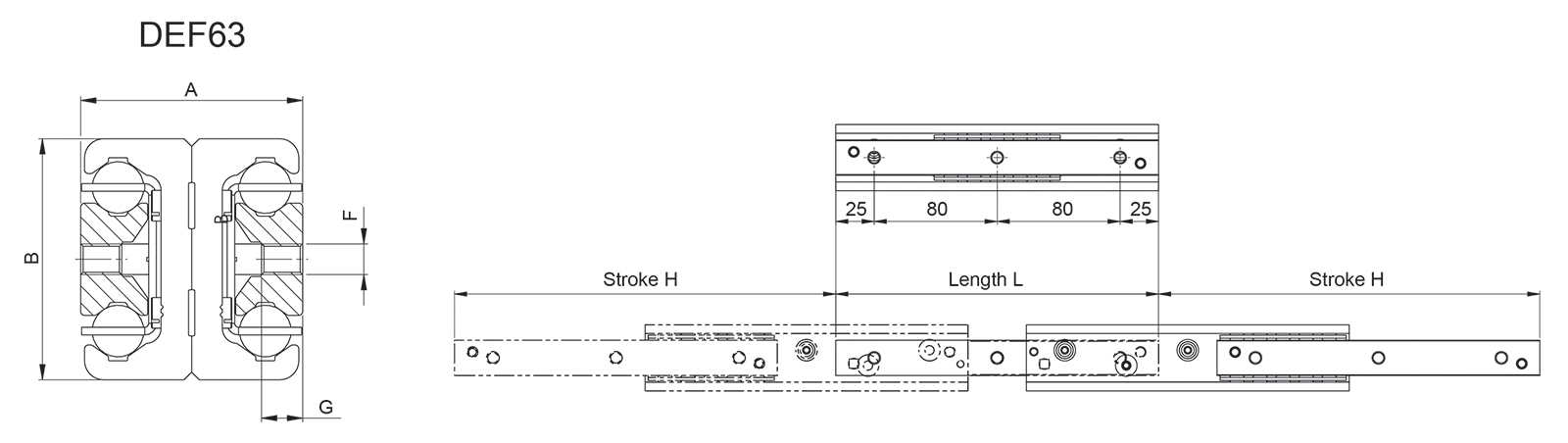

Designation Select all CAD Compare Get quote A B F G V
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
Get quote 58 63 M8 10.5 -
