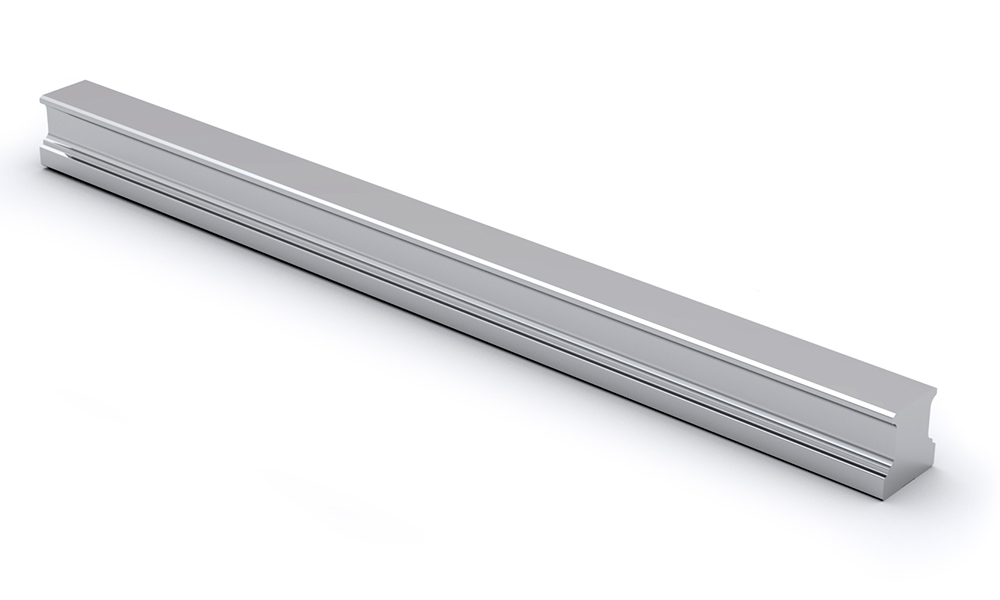

HRU Rail

STOCK ITEM
Tapped from the bottom.
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Dimensions in mm.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Length (mm) Weight Rail (g/m)
Get quote 1 4000 1290
Get quote 1 4000 2280
Get quote 1 4000 3020
Get quote 1 4000 4380
Get quote 1 4000 6790
Get quote 2 4000 10530
Get quote 2 4000 14000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote H1 W1 M x g3 Hole Pitch (P)
Get quote 15 15 M5 x 8 60
Get quote 20 20 M6 x 10 60
Get quote 23 23 M6 x 12 60
Get quote 27 28 M8 x 15 80
Get quote 32 34 M8 x 15 80
Get quote 39 45 M12 x 19 105
Get quote 45.7 53 M14 x 24 120
  • STOCK ITEM

    HRC MN
    Slim – standard length – standard height
  • STOCK ITEM

    HRC ML
    Slim – long – standard height
  • STOCK ITEM

    ERC MN
    Slim – standard length – low height
  • STOCK ITEM

    HRC FN
    Flanged – standard length – standard height (most common)
  • STOCK ITEM

    HRC FL
    Flanged – long – standard height
  • STOCK ITEM
  • STOCK ITEM

    ARC MN
    Slim – standard length – low height
  • STOCK ITEM
  • STOCK ITEM

    ARC FS
    Flanged – short – low height
  • STOCK ITEM

    ARC FN
    Flanged – standard length – low height
  • STOCK ITEM
  • STOCK ITEM
