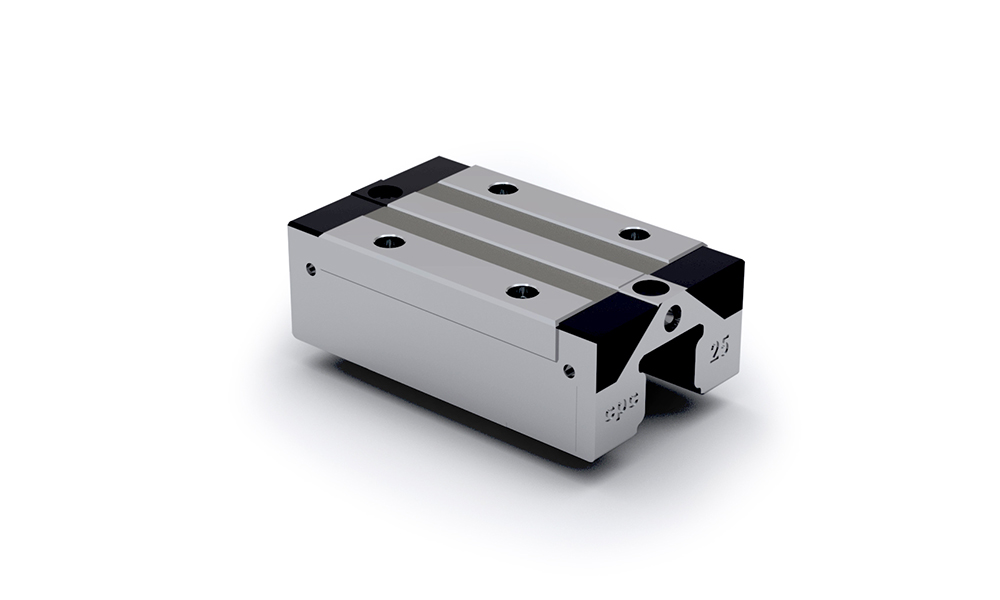

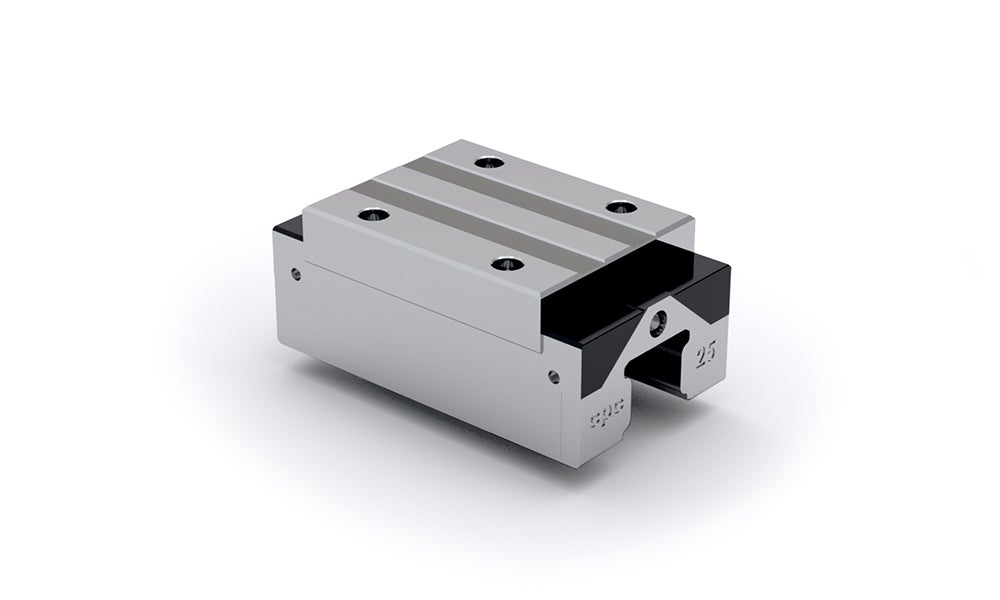

ARC MN

STOCK ITEM

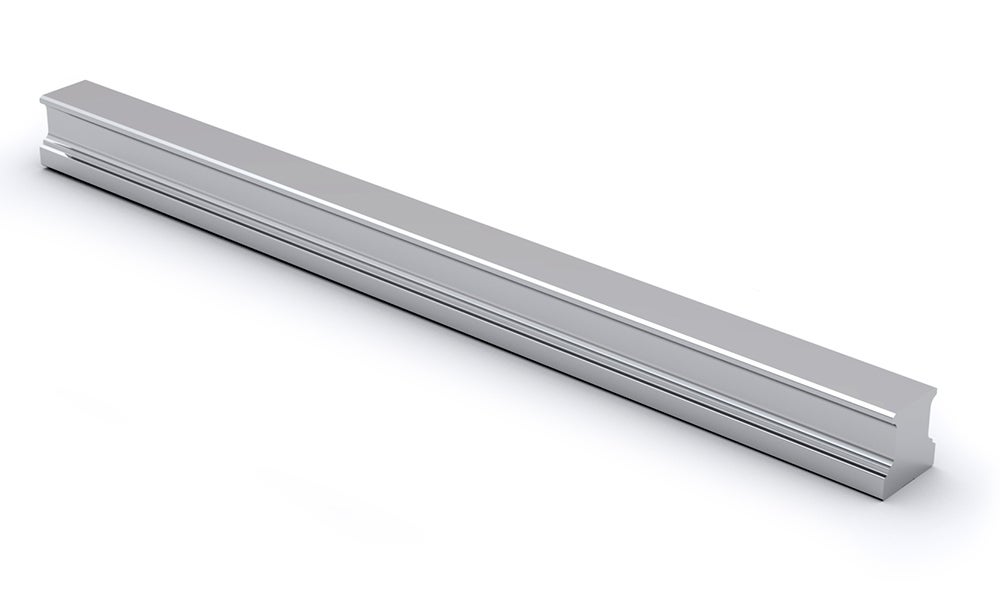

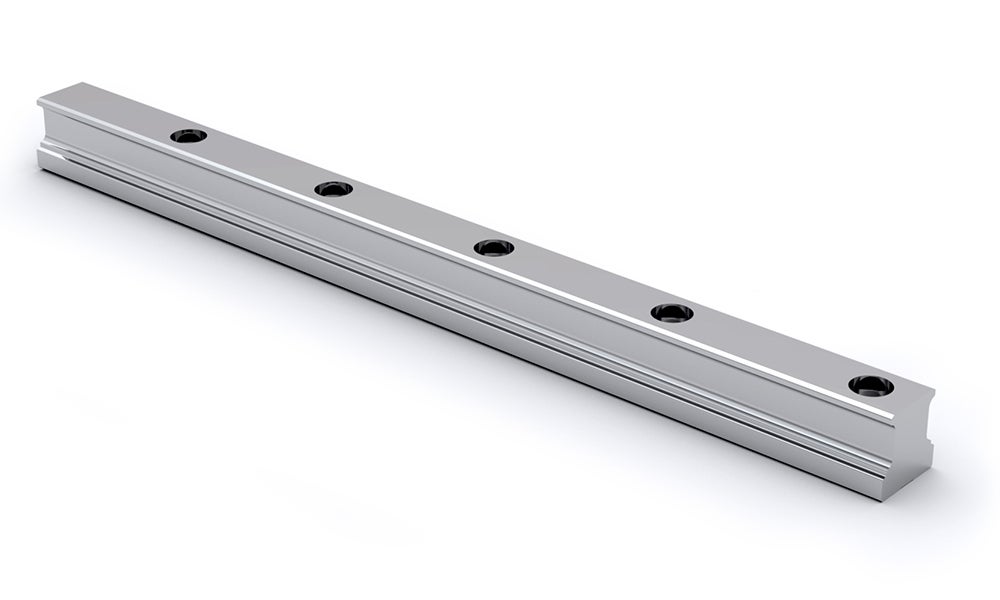

Slim block, standard length and low height, with or without ball chain. ARC55MN is without ball chain. Use together with HRC/HRU rail.

For high load applications or any application where severe chock-loads may occur, the standard version offers better safety margins by its higher static limit (C0). For light to medium loads where a very long lifetime is required, the ball-cage will show superior life span and reliability.

Please note that ball chain versions must never be used for linear speeds exceeding 3 m/s!

Size 15 delivered with straight standard nipple.
Size 20 – 55 delivered with angled standard nipple.

Lubrications injections ports on the block:
N1: Front of the block. All blocks are delivered with front mounted standard grease nipple.
N2: Side of the block. The side lubrication injection port is sealed on delivery to prevent leakage of lubrication.
N3: Top of the block with an O-ring seal. The top lubrication injection port is sealed on delivery to prevent leakage of lubrication.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.

For more information about calculation of life, load rating and static moment see Technical information.

Product Information

Linear_Rail_HRC-ARC-ERC-WRC_Technical_Information.pdf

Linear_Rail_HRC-ARC-ERC_Order_Codes.pdf

Linear-Rail_HRC-ARC-ERC_Selection-of-Clamping-Elements.pdf

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Get quote	Lead Time *	Remark	Dynamic Load Capacity C (N)	Static Load Capacity C0 (N)	Static Moment Mp0 (Nm)	Static Moment Mr0 (Nm)	Static Moment My0 (Nm)	Dynamic Moment Mr (Nm)	Dynamic Moment Mp (Nm)	Dynamic Moment My (Nm)	Weight Block (g)
ARC15MN	Get quote	1	-	9900	17500	105	140	105	79	59	59	158
ARC20MN	Get quote	1	-	17100	30000	230	325	230	185	131	131	266
ARC25MN	Get quote	2	-	24800	42500	385	540	385	315	225	225	420
ARC30MN	Get quote	2	-	32800	53700	565	845	565	516	345	345	800
ARC35MN	Get quote	1	-	45900	82900	1080	1700	1080	941	598	598	1120
ARC45MN	Get quote	2	-	71300	122100	1910	3200	1910	1869	1115	1115	2120
ARC55MN	Get quote	2	No ball chain	128000	186000	3278	4949	3278	3406	2256	2256	4200

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	Get quote	L	H	W	L1	H1	h2	W1	W2	S1	S2	S3	S4	E	T	N1	N2	N3	M x g2	D x d x g1	P1	P2	Hole Pitch (P)
ARC15MN	Get quote	55.5	24	34	40.3	15	20.7	15	9.5	4.5	7.5	9.8	10.9	5.3	6	M3x6.5	M3x6	P3	M4x7	7.5 x 4.5 x 5.3	26	26	60
ARC20MN	Get quote	69	28	42	52	20	23	20	11	4	7.4	13	13.7	10	8	M3x7.5	M3x5.5	P4	M5x7	9.5 x 6 x 8.5	32	32	60
ARC25MN	Get quote	81.2	33	48	62.2	23	27	23	12.5	5	9.3	16.6	17.6	12	8	M6x7.5	M3x6.5	P4	M6x9	11 x 7 x 9	35	35	60
ARC30MN	Get quote	95.5	42	60	71.5	27	35.2	28	16	7.5	12	20.8	20.5	12	12	M6x8.5	M6x5	P5	M8x10	14 x 9 x 12	40	40	80
ARC35MN	Get quote	111.2	48	70	86.2	32	40.4	34	18	8	15	23.4	24.1	12	14	M6x10	M6x7	P5	M8x13	14 x 9 x 12	50	50	80
ARC45MN	Get quote	135.5	60	86	102.5	39	50.7	45	20.5	11.1	18.1	27.3	27.2	14	14	PTI/8x12.5	M6x10.5	P5	M10x17	20 x 14 x 17	60	60	105
ARC55MN	Get quote	168.5	70	100	126.5	45.7	58	53	23.5	13.5	23.5	34.8	33.8	12	16	M6x10	M6x13	P5	M12x20	24 x 16 x 20	75	75	120

STOCK ITEM

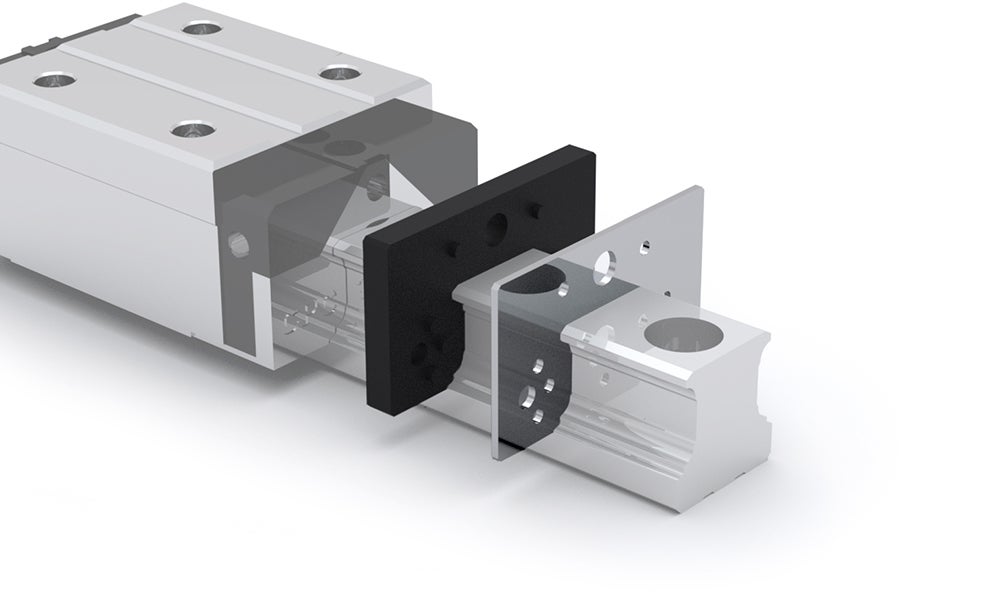

NBR Seal / Metal Scraper

Extra protection for harsh environments
STOCK ITEM

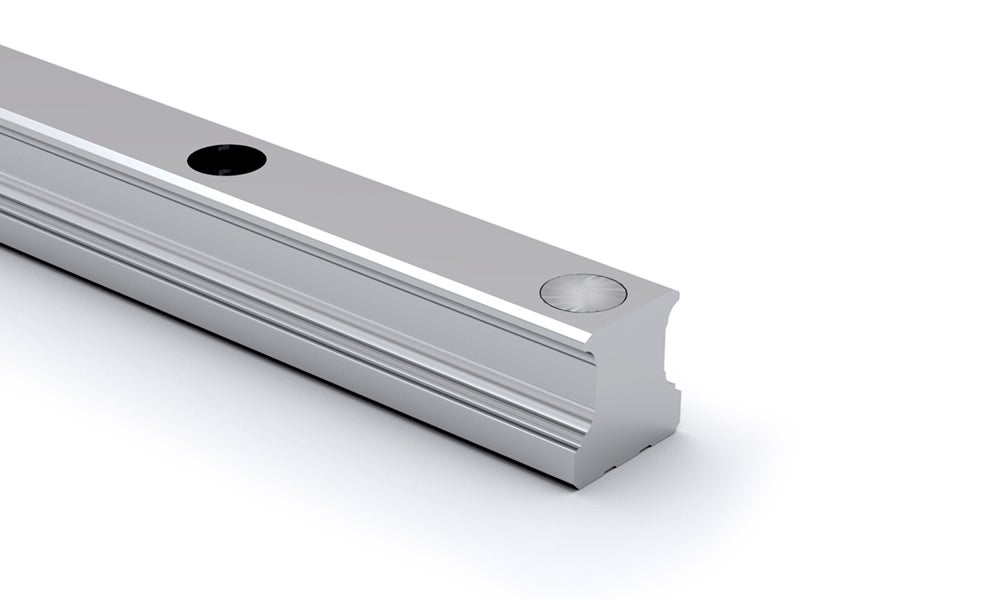

Metal-Plastic Hole Cap
