RSCR
Ball nut cylindrical with thread, internal recirculation, for right lead (SR) screw

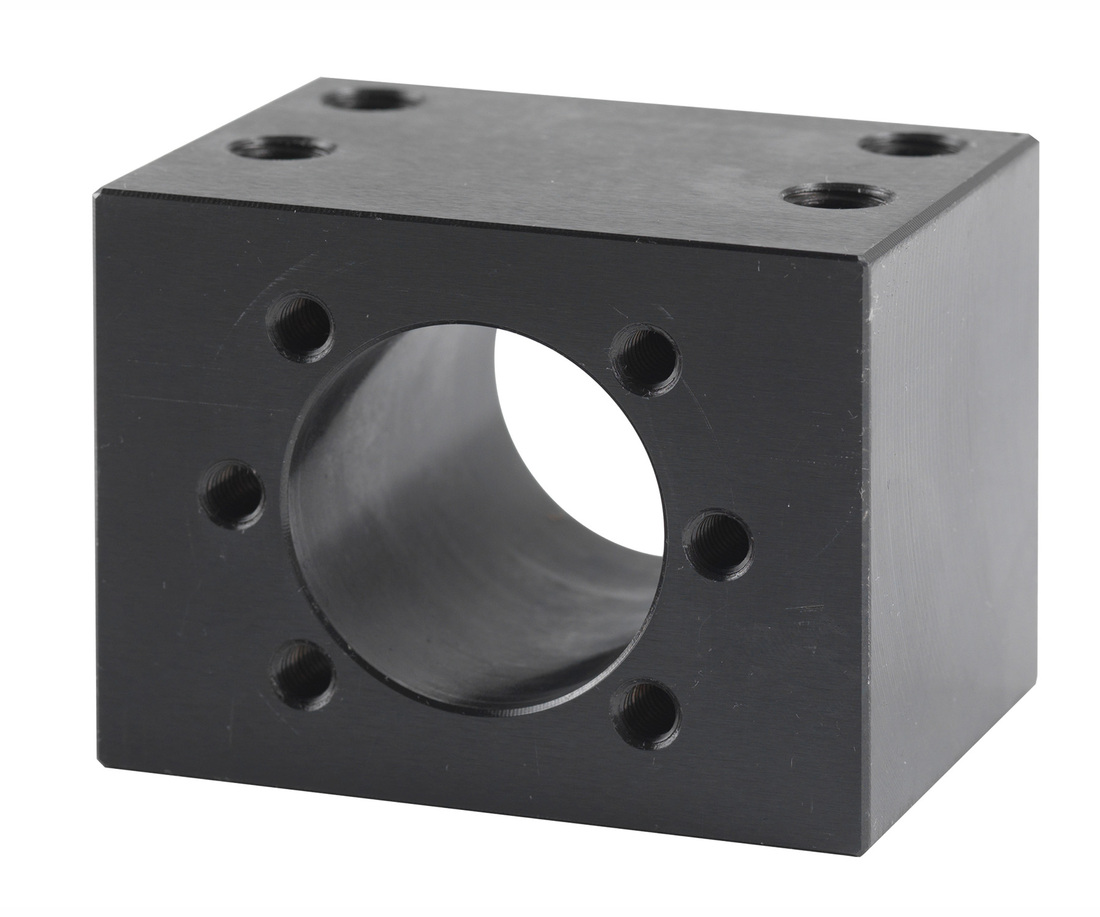

RNB
Other types on request. Please contact Rollco for more information.
All dimensions in mm.
Read more
All dimensions in mm.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Fig. | H1 | G | A | B | H | D | F | L | C | T | E | d1 | H2 | B1 | O1 | O2 | Q1 | Q2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 1 | 11 | 10 | 20 | 70 | 48 | 38 | 37 | 50 | 20 | 50 | 15 | 28.4 | 24 | 35 | 14 | 8.4 | M5 | M10 | ||||
|
|
|
1 | 1 | 9 | 11 | 23 | 75 | 54 | 47 | 45 | 55 | 22 | 55 | 15 | 36.4 | 28 | 37.5 | 14 | 8.4 | M6 | M10 | ||||
|
|
|
1 | 1 | 9 | 11 | 23 | 80 | 58 | 51 | 49 | 55 | 22 | 60 | 15 | 40.4 | 30 | 40 | 14 | 8.4 | M6 | M10 | ||||
|
|
|
1 | 1 | 16 | 14 | 30 | 100 | 68 | 65 | 52 | 70 | 27 | 75 | 20 | 50.4 | 35 | 50 | 18 | 13 | M8 | M16 | ||||
|
|
|
1 | 2 | 18 | 17 | 35 | 120 | 84 | 78 | 66 | 80 | 31 | 90 | 25 | 63.4 | 42 | 60 | 24 | 15 | M8 | M18 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
FSCR/FSCL
Ball nut with flange, for right & left lead screw (SR/SL), most common type -
FSER
Ball nut with flange, long lead, for right lead (SR) screw -
SFYAR
Ball nut with flange, overlead, for right lead (SCR) screw -
FDCR
Ball nut, double, with flange, for right lead screw (SR) -
SNFSCR
Safety nut for ball screw -
RN/RN..W
Lock nut for ball screw
