FSER

STOCK ITEM

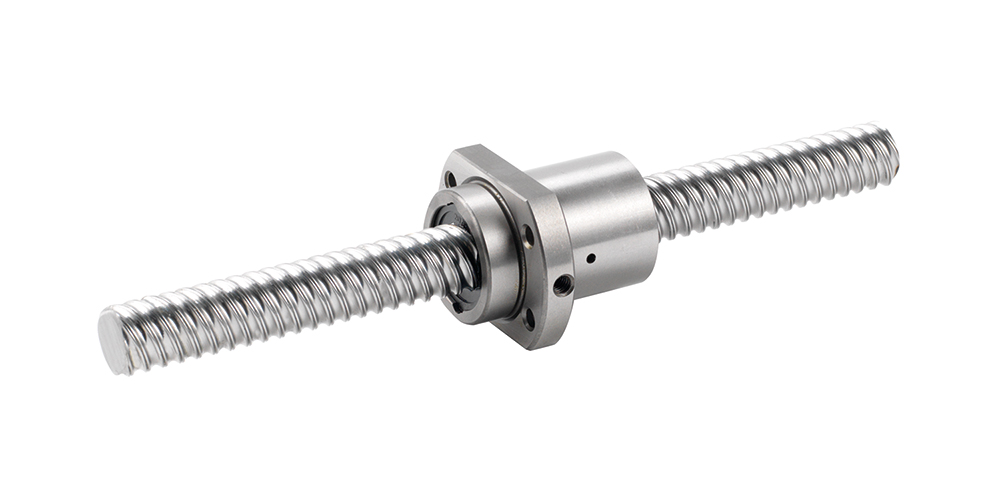

Single Nut with Flange, Long Lead.

Standard nuts are with oil-seals. Other types on request.

All dimensions in mm.
Read more
Designation Select all CAD Compare Get quote Lead Time * Compatible with Dynamic Load Ratings Ca (N) Static Load Ratings C0a (N) Ball diameter Turns x circuits
Get quote 1 BKN12 / FKN12 / BFN12 / FFN12 14833 19571 3.175 1.8 x 2
Get quote 1 BKN15 / FKN15 / BFN15 / FFN15 16275 24172 3.175 1.8 x 2
Get quote 1 BKN20 / FKN20 / BFN20 / FFN20 24339 37778 3.969 1.8 x 2
Get quote 1 BKN25 / FKN25 / WBK25DF / BFN25 / FFN25 35169 59557 4.762 1.8 x 2
Get quote 1 BKN30 / FKN30 / WBK30DF / WBK30DFF / BFN30 / FFN30 56682 115297 6.35 1.8 x 2
Get quote 1 BKN40 / WBK40DF / WBK40DFF / BFN40 86514 188754 7.938 1.8 x 2

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B D E H L Q W X d0 x Lead
Get quote 53 10 32 10.5 38 48 M6 42 4.5 16 x 16
Get quote 62 10 39 10.8 46 55 M6 50 5.5 20 x 20
Get quote 74 12 47 11.2 56 67 M6 60 6.6 25 x 25
Get quote 92 15 58 14 68 82 M6 74 9 32 x 32
Get quote 114 17 73 17 84 100 M6 93 11 40 x 40
Get quote 135 20 90 21.5 92 125 M6 112 14 50 x 50
  • STOCK ITEM
  • STOCK ITEM
  • STOCK ITEM

    RNB

    Housing for ball nut FSCR/FSCL
  • STOCK ITEM

    RSCR

    Ball nut cylindrical with thread, internal recirculation, for right lead (SR) screw
  • STOCK ITEM

    FSCR/FSCL

    Ball nut with flange, for right & left lead screw (SR/SL), most common type
  • STOCK ITEM

    SFYAR

    Ball nut with flange, overlead, for right lead (SCR) screw
  • STOCK ITEM

    FDCR

    Ball nut, double, with flange, for right lead screw (SR)
