TR---.0390

• Combined – fixed with oilamide sliding block
• Completely made of 1.4301 stainless steel with bearing bush out of synthetic material

Use profile UP---.0780
Fixing square element BQ---.4000
Rectangular fixing element BR---.4100

For the adjustment of the axial clearance (A) distance rings will be used.

Order example: TR080.0390

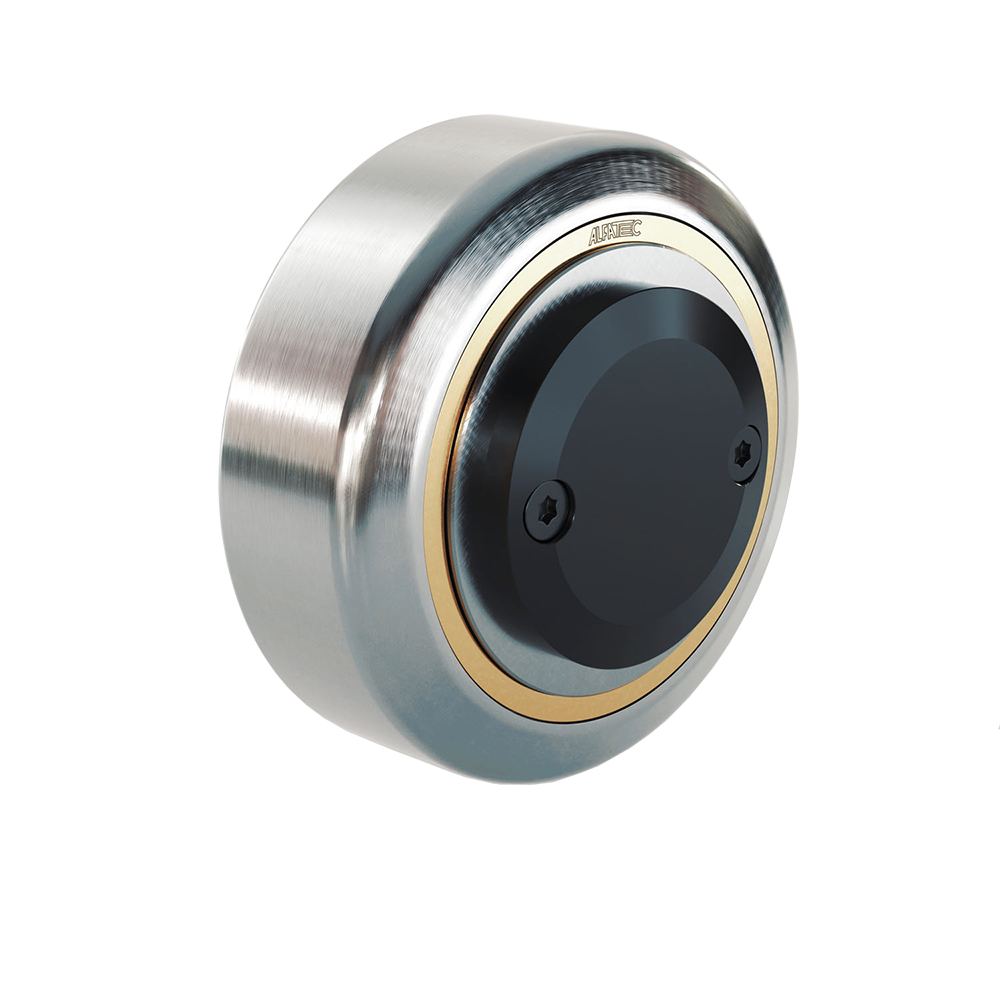

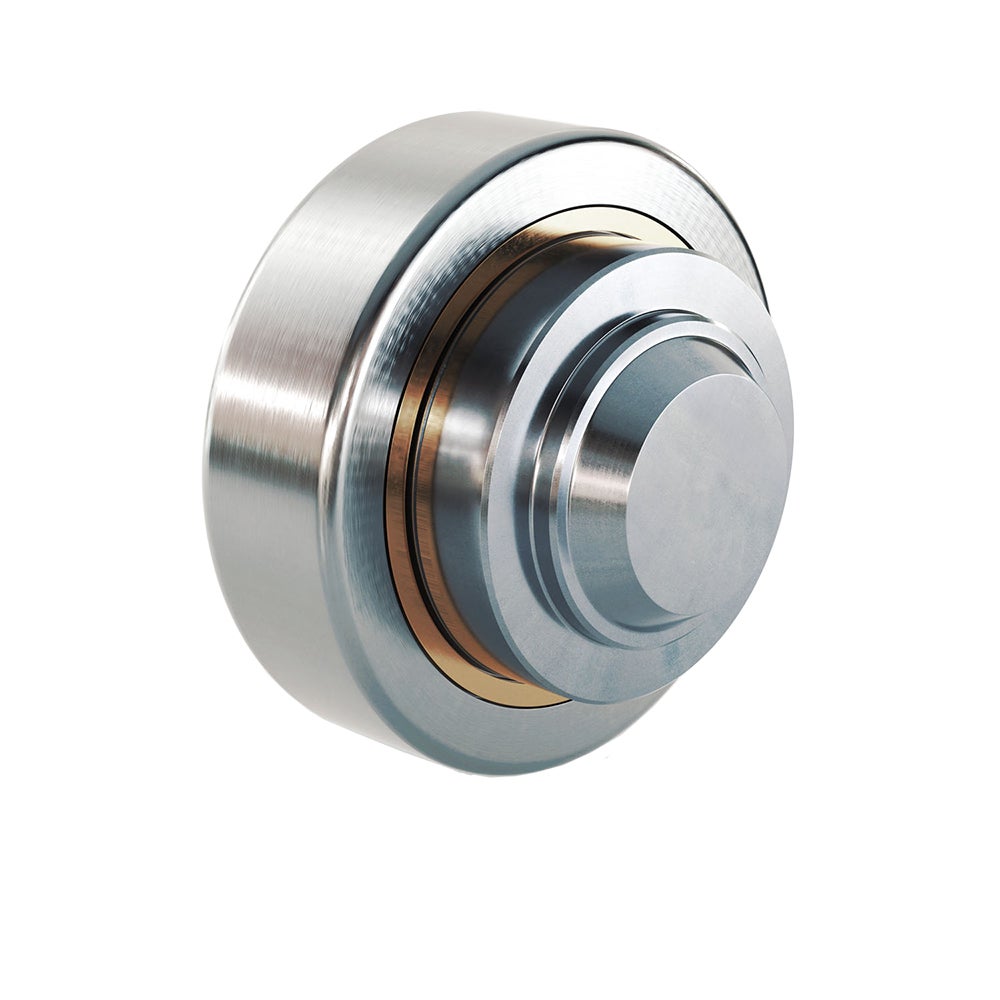

Roller, stainless, Ø 77,7 mm

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.

Product Information

Roller Type: Stainless
Sizes Available: 50; 70; 80
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Select columns
CAD Compare Get quote
Get quote 2 3500 2000 3700 UP---.0780
Get quote 2 6000 3000 7000 UP---.0780
Get quote 2 7200 4000 7500 UP---.0780

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Select columns
CAD Compare Get quote
Get quote 5 17 52.5 33 28 42 30
Get quote 6.5 23 70.1 48 40 54 35
Get quote 7 23 77.7 50.5 39.5 54 40

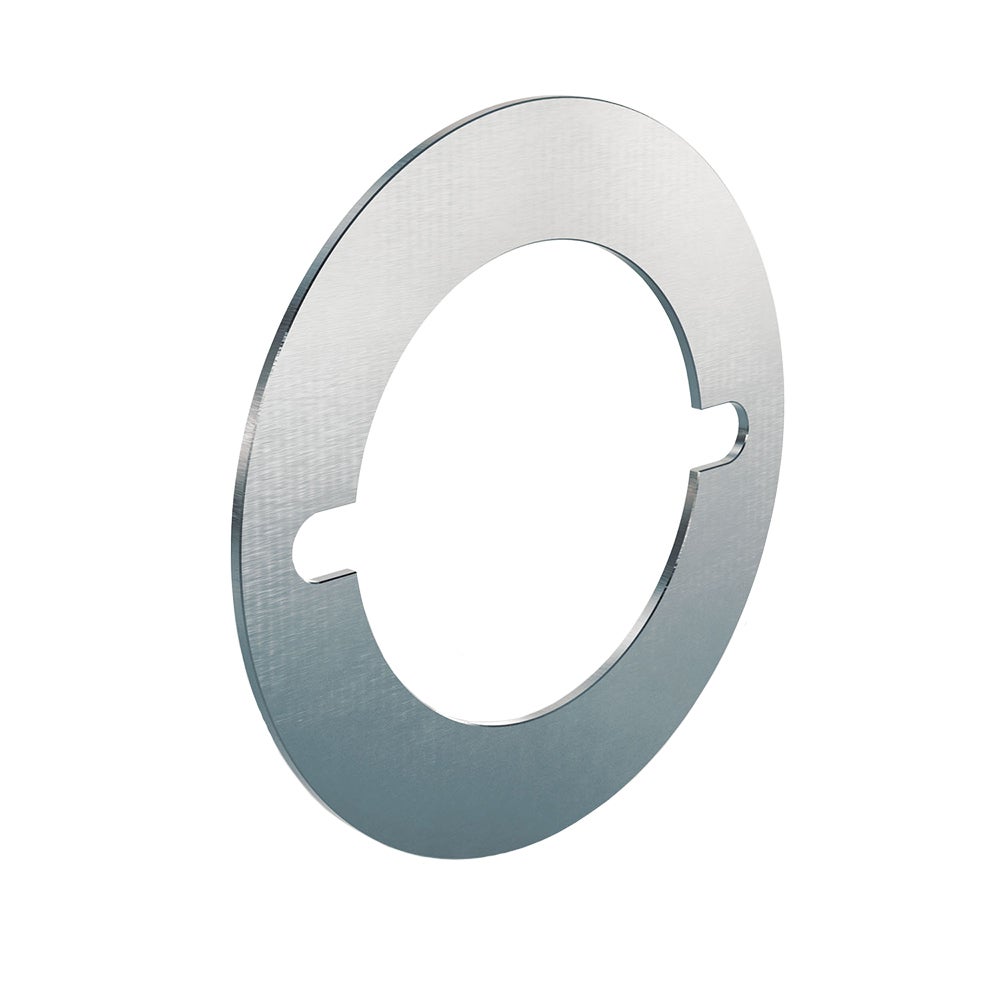

  • Distance Ring
    For adjustment of the axial clearance of Stainless Roller TR---.0390
  • STANDARD

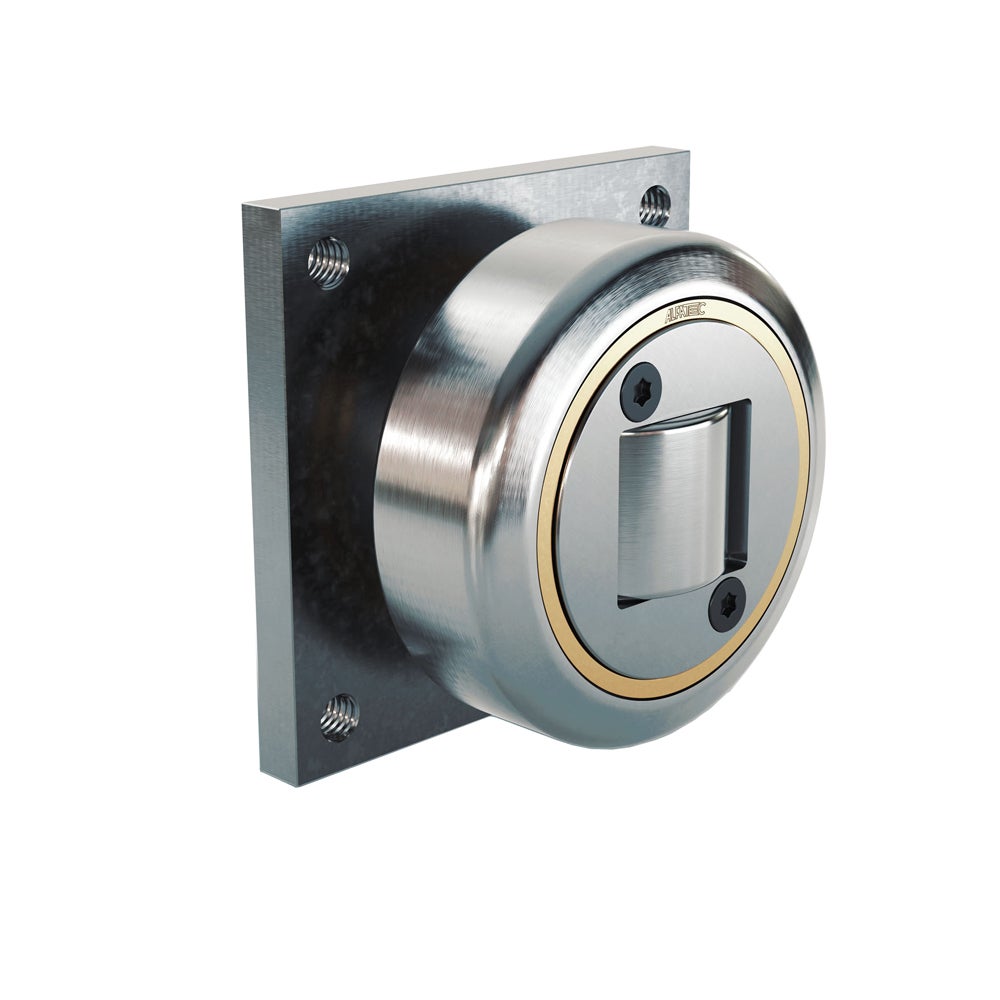

  • BQ---.4000
    Stainless Fixing Element Square - welded w. the combined roller

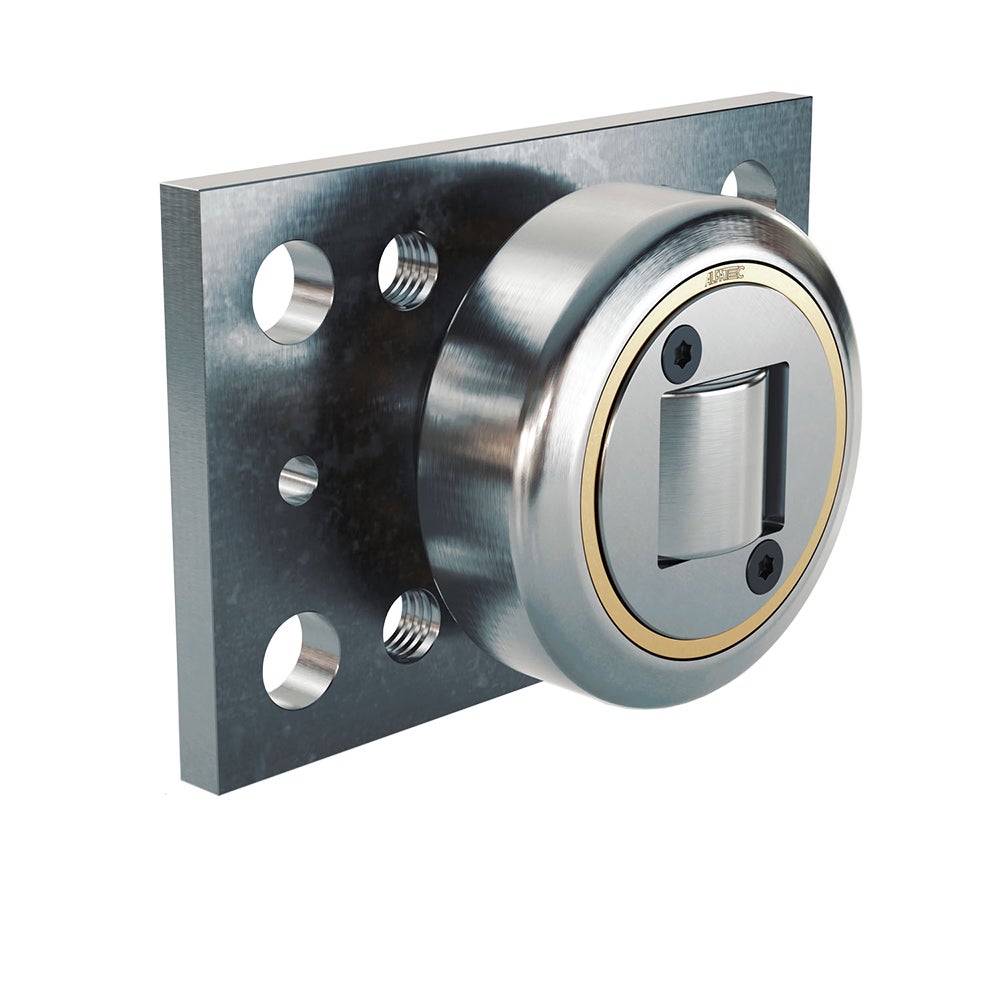

  • BR---.4100
    Stainless Fixing Element Rectangular- welded w. the combined roller

  • PAS ---.0360
    Roller combined fixed with oilamide sliding block for profile UP---.0730

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0200
    Standard Roller Fixed, for profile UP---.0700/0730

  • TR---.0300
    Standard Roller, adj. of the axial clearance, for profile UP---.0700

  • TR---.0360
    Standard Roller with Oilamide Sliding Block, for profile UP---.0700

  • XTR---.0200
    Heavy Roller Fixed, up to 60% higher load capacity, for profile XUP---.0700

  • STR---.6200
    Standard Roller with axial bearing, for profile UP---.0700

  • XTR---.0300
    Heavy Roller combined adjustable w. insert washer, for profile XUP---.0700

  • XSTR---.6200
    Heavy Roller axis, extra sustainable, for profile XUP---.0700
