SSG

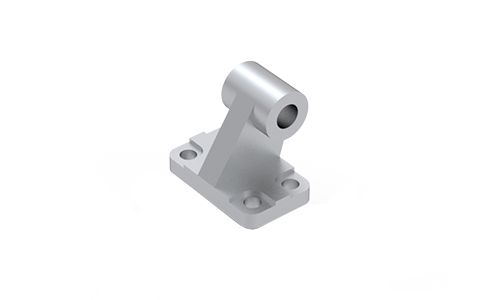

Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
LG
Dimensions in mm.
Read more
Product Information
Material: Aluminium or stainless steel AISI 304
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | PNCE 32 | Aluminium | FPNCE | 0.06 | ||||
|
|
|
2 | PNCE 32 | Stainless steel AISI 304 | FPNCE | 0.16 | ||||
|
|
|
2 | PNCE 40 | Aluminium | FPNCE | 0.14 | ||||
|
|
|
2 | PNCE 40 | Stainless steel AISI 304 | FPNCE | 0.24 | ||||
|
|
|
2 | PNCE 50 | Aluminium | 9200 | 0.14 | ||||
|
|
|
2 | PNCE 50 | Stainless steel AISI 304 | 9200 | 0.42 | ||||
|
|
|
2 | PNCE 63 | Aluminium | 15300 | 0.2 | ||||
|
|
|
2 | PNCE 63 | Stainless steel AISI 304 | 15300 | 0.53 | ||||
|
|
|
2 | PNCE 80 | Aluminium | 19200 | 0.39 | ||||
|
|
|
2 | PNCE 80 | Stainless steel AISI 304 | 19200 | 0.98 | ||||
|
|
|
2 | PNCE 100 | Aluminium | FPNCE | 0.55 | ||||
|
|
|
2 | PNCE 100 | Stainless steel AISI 304 | FPNCE | 1.48 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | D1 | D2 | R1 | R2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
51 | 38 | 26 | 32 | 24 | 10 | 6.4 | 18 | 31 | 21 | Ø 10 (H9) | Ø 6.6 (H13) | 10 | 5.5 | ||||
|
|
|
51 | 38 | 26 | 32 | 24 | 10 | 6.4 | 18 | 31 | 21 | Ø 10 (H9) | Ø 6.6 (H13) | 10 | 5.5 | ||||
|
|
|
54 | 41 | 28 | 36 | 26 | 15 | 8.4 | 22 | 35 | 24 | Ø 12 (H9) | Ø 6.6 (H13) | 11 | 5.5 | ||||
|
|
|
54 | 41 | 28 | 36 | 26 | 15 | 8.4 | 22 | 35 | 24 | Ø 12 (H9) | Ø 6.6 (H13) | 11 | 5.5 | ||||
|
|
|
65 | 50 | 32 | 45 | 33 | 16 | 10.4 | 30 | 45 | 33 | Ø 12 (H9) | Ø 9 (H13) | 13 | 7.5 | ||||
|
|
|
65 | 50 | 32 | 45 | 33 | 16 | 10.4 | 30 | 45 | 33 | Ø 12 (H9) | Ø 9 (H13) | 13 | 7.5 | ||||
|
|
|
67 | 52 | 40 | 50 | 36 | 16 | 12.4 | 35 | 50 | 37 | Ø 16 (H9) | Ø 9 (H13) | 15 | 7.5 | ||||
|
|
|
67 | 52 | 40 | 50 | 36 | 16 | 12.4 | 35 | 50 | 37 | Ø 16 (H9) | Ø 9 (H13) | 15 | 7.5 | ||||
|
|
|
86 | 66 | 50 | 63 | 49 | 20 | 11.5 | 40 | 60 | 47 | Ø 16 (H9) | Ø 11 (H13) | 15 | 9 | ||||
|
|
|
86 | 66 | 50 | 63 | 49 | 20 | 11.5 | 40 | 60 | 47 | Ø 16 (H9) | Ø 11 (H13) | 15 | 9 | ||||
|
|
|
96 | 76 | 60 | 71 | 54 | 20 | 14.5 | 50 | 70 | 55 | Ø 20 (H9) | Ø 11 (H13) | 19 | 9 | ||||
|
|
|
96 | 76 | 60 | 71 | 54 | 20 | 14.5 | 50 | 70 | 55 | Ø 20 (H9) | Ø 11 (H13) | 19 | 9 |
-
-
