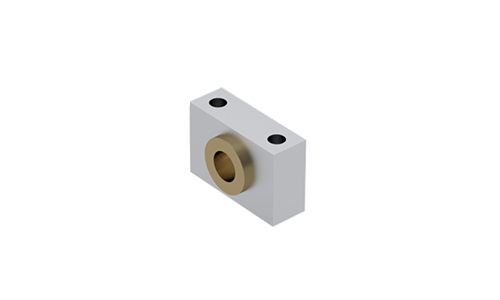

LZ
Set contains 2 pcs.
Dimensions in mm.
Read more
Dimensions in mm.
Product Information
Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | LZ 32 | PNCE 32 | F PNCE | 0.1 | ||||
|
|
|
2 | LZ 40 | PNCE 40 | F PNCE | 0.15 | ||||
|
|
|
2 | LZ 50 | PNCE 50 | 9200 | 0.15 | ||||
|
|
|
2 | LZ 63 | PNCE 63 | 12800 | 0.25 | ||||
|
|
|
2 | LZ 80 | PNCE 80 | 12800 | 0.25 | ||||
|
|
|
2 | LZ 100 | PNCE 100 | 20000 | 0.4 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D1 | D2 | D3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
46 | 32 (±0.2) | 18 | 15 | 10.5 | 30 | 15 (±0.1) | 7 (±0.5) | 12 (F7) | Ø 6.6 (H13) | Ø 11 (H13) | ||||
|
|
|
55 | 36 (±0.2) | 21 | 18 | 12 | 36 | 18 (±0.1) | 9 (±0.5) | 16 (F7) | Ø 9 (H13) | Ø 15 (H13) | ||||
|
|
|
55 | 36 (±0.2) | 21 | 18 | 12 | 36 | 18 (±0.1) | 9 (±0.5) | 16 (F7) | Ø 9 (H13) | Ø 15 (H13) | ||||
|
|
|
65 | 42 (±0.2) | 23 | 20 | 13 | 40 | 20 (±0.1) | 11 (±0.5) | 20 (F7) | Ø 11 (H13) | Ø 18 (H13) | ||||
|
|
|
65 | 42 (±0.2) | 23 | 20 | 13 | 40 | 20 (±0.1) | 11 (±0.5) | 20 (F7) | Ø 11 (H13) | Ø 18 (H13) | ||||
|
|
|
75 | 50 (±0.2) | 28.5 | 25 | 16 | 50 | 25 (±0.1) | 13 (±0.5) | 25 (F7) | Ø 14 (H13) | Ø 20 (H13) |
-
-
