SSG

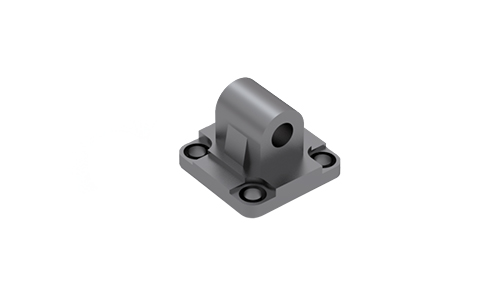

Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
SGL
Dimensions in mm.
Read more
Product Information
Material: Aluminium or stainless steel AISI 304
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | SGL 32 | PNCE 32 | Aluminium | F PNCE | 0.08 | ||||
|
|
|
2 | SGL 32 CR | PNCE 32 | Stainless steel AISI 304 | F PNCE | 0.21 | ||||
|
|
|
2 | SGL 40 | PNCE 40 | Aluminium | F PNCE | 0.11 | ||||
|
|
|
2 | SGL 40 CR | PNCE 40 | Stainless steel AISI 304 | F PNCE | 0.3 | ||||
|
|
|
2 | SGL 50 | PNCE 50 | Aluminium | 9200 | 0.18 | ||||
|
|
|
2 | SGL 50 CR | PNCE 50 | Stainless steel AISI 304 | 9200 | 0.43 | ||||
|
|
|
2 | SGL 63 | PNCE 63 | Aluminium | 14300 | 0.27 | ||||
|
|
|
2 | SGL 63 CR | PNCE 63 | Stainless steel AISI 304 | 14300 | 0.74 | ||||
|
|
|
2 | SGL 80 | PNCE 80 | Aluminium | 19200 | 0.47 | ||||
|
|
|
2 | SGL 80 CR | PNCE 80 | Stainless steel AISI 304 | 19200 | 1.31 | ||||
|
|
|
2 | SGL 100 | PNCE 100 | Aluminium | 27100 | 0.79 | ||||
|
|
|
2 | SGL 100 CR | PNCE 100 | Stainless steel AISI 304 | 27100 | 2.21 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | R1 | R2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
45 | 32.5 | 26 | 22 (±0.2) | 13 | 5 | 5.5 | Ø 10 (H9) | Ø 6.6 (H13) | Ø 30 (H11) | 10 | 5.5 | ||||
|
|
|
45 | 32.5 | 26 | 22 (±0.2) | 13 | 5 | 5.5 | Ø 10 (H9) | Ø 6.6 (H13) | Ø 30 (H11) | 10 | 5.5 | ||||
|
|
|
52 | 38 | 28 | 25 (±0.2) | 16 | 5 | 5.5 | Ø 12 (H9) | Ø 6.6 (H13) | Ø 35 (H11) | 12 | 5.5 | ||||
|
|
|
52 | 38 | 28 | 25 (±0.2) | 16 | 5 | 5.5 | Ø 12 (H9) | Ø 6.6 (H13) | Ø 35 (H11) | 12 | 5.5 | ||||
|
|
|
65 | 46.5 | 32 | 27 (±0.2) | 16 | 5 | 6.5 | Ø 12 (H9) | Ø 9 (H13) | Ø 40 (H11) | 12 | 7.5 | ||||
|
|
|
65 | 46.5 | 32 | 27 (±0.2) | 16 | 5 | 6.5 | Ø 12 (H9) | Ø 9 (H13) | Ø 40 (H11) | 12 | 7.5 | ||||
|
|
|
75 | 56.5 | 40 | 32 (±0.2) | 21 | 5 | 6.5 | Ø 16 (H9) | Ø 9 (H13) | Ø 45 (H11) | 16 | 7.5 | ||||
|
|
|
75 | 56.5 | 40 | 32 (±0.2) | 21 | 5 | 6.5 | Ø 16 (H9) | Ø 9 (H13) | Ø 45 (H11) | 16 | 7.5 | ||||
|
|
|
93 | 72 | 50 | 36 (±0.2) | 22 | 5 | 10 | Ø 16 (H9) | Ø 11 (H13) | Ø 45 (H11) | 16 | 9 | ||||
|
|
|
93 | 72 | 50 | 36 (±0.2) | 22 | 5 | 10 | Ø 16 (H9) | Ø 11 (H13) | Ø 45 (H11) | 16 | 9 | ||||
|
|
|
110 | 89 | 60 | 41 (±0.2) | 27 | 5 | 10 | Ø 20 (H9) | Ø 11 (H13) | Ø 55 (H11) | 20 | 9 | ||||
|
|
|
110 | 89 | 60 | 41 (±0.2) | 27 | 5 | 10 | Ø 20 (H9) | Ø 11 (H13) | Ø 55 (H11) | 20 | 9 |
-
-
