SSG

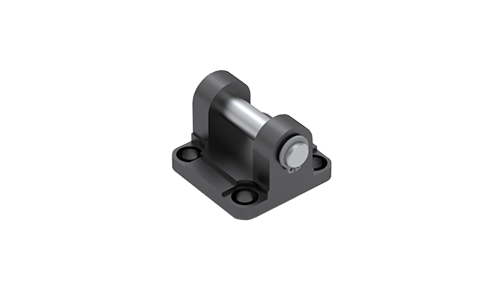

Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
SBG
Dimensions in mm.
Read more
Product Information
Material: Aluminium or stainless steel AISI 304
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Type | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | SBG 32 MSD | PNCE 32 | Motor side drive mounting | Aluminium | F PNCE | 0.11 | ||||
|
|
|
2 | SBG 32 MSD CR | PNCE 32 | Motor side drive mounting | Stainless steel AISI 304 | F PNCE | 0.2 | ||||
|
|
|
2 | SBG 40 MSD | PNCE 40 | Motor side drive mounting | Aluminium | F PNCE | 0.18 | ||||
|
|
|
2 | SBG 40 MSD CR | PNCE 40 | Motor side drive mounting | Stainless steel AISI 304 | F PNCE | 0.31 | ||||
|
|
|
2 | SBG 50 MSD | PNCE 50 | Motor side drive mounting | Aluminium | 8000 | 0.23 | ||||
|
|
|
2 | SBG 50 MSD CR | PNCE 50 | Motor side drive mounting | Stainless steel AISI 304 | 8000 | 0.45 | ||||
|
|
|
2 | SBG 63 MSD | PNCE 63 | Motor side drive mounting | Aluminium | 11000 | 0.36 | ||||
|
|
|
2 | SBG 63 MSD CR | PNCE 63 | Motor side drive mounting | Stainless steel AISI 304 | 11000 | 0.7 | ||||
|
|
|
2 | SBG 80 MSD | PNCE 80 | Motor side drive mounting | Aluminium | 15360 | 0.61 | ||||
|
|
|
2 | SBG 80 MSD CR | PNCE 80 | Motor side drive mounting | Stainless steel AISI 304 | 15360 | 1.42 | ||||
|
|
|
2 | SBG 100 MSD | PNCE 100 | Motor side drive mounting | Aluminium | 24000 | 0.98 | ||||
|
|
|
2 | SBG 100 MSD CR | PNCE 100 | Motor side drive mounting | Stainless steel AISI 304 | 24000 | 2.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D1 | D2 | D3 | D4 | R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
45 | 32.5 | 26 | 22 (±0.2) | 13 | 5 | 5.5 | 45 | Ø 10 (e8) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 10 | ||||
|
|
|
45 | 32.5 | 26 | 22 (±0.2) | 13 | 5 | 5.5 | 45 | Ø 10 (e8) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 10 | ||||
|
|
|
52 | 38 | 28 | 25 (±0.2) | 16 | 5 | 5.5 | 52 | Ø 12 (e8) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 12 | ||||
|
|
|
52 | 38 | 28 | 25 (±0.2) | 16 | 5 | 5.5 | 52 | Ø 12 (e8) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 12 | ||||
|
|
|
65 | 46.5 | 32 | 27 (±0.2) | 16 | 5 | 6.5 | 60 | Ø 12 (e8) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 12 | ||||
|
|
|
65 | 46.5 | 32 | 27 (±0.2) | 16 | 5 | 6.5 | 60 | Ø 12 (e8) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 12 | ||||
|
|
|
75 | 56.5 | 40 | 32 (±0.2) | 21 | 5 | 6.5 | 70 | Ø 16 (e8) | Ø 9 (H13) | Ø 45 (H11) | Ø 15 (H13) | 16 | ||||
|
|
|
75 | 56.5 | 40 | 32 (±0.2) | 21 | 5 | 6.5 | 70 | Ø 16 (e8) | Ø 9 (H13) | Ø 45 (H11) | Ø 15 (H13) | 16 | ||||
|
|
|
93 | 72 | 50 | 36 (±0.2) | 22 | 5 | 10 | 90 | Ø 16 (e8) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 16 | ||||
|
|
|
93 | 72 | 50 | 36 (±0.2) | 22 | 5 | 10 | 90 | Ø 16 (e8) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 16 | ||||
|
|
|
110 | 89 | 60 | 41 (±0.2) | 27 | 5 | 10 | 110 | Ø 20 (e8) | Ø 11 (H13) | Ø 55 (H11) | Ø 18 (H13) | 20 | ||||
|
|
|
110 | 89 | 60 | 41 (±0.2) | 27 | 5 | 10 | 110 | Ø 20 (e8) | Ø 11 (H13) | Ø 55 (H11) | Ø 18 (H13) | 20 |
-
-
