SSG

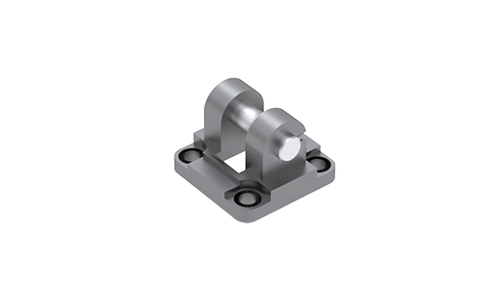

Mounting attachment accessory SSG, aluminium or stainless steel AISI 316
SGN
Dimensions in mm.
Read more
Product Information
Material: Aluminium or stainless steel AISI 316
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Type | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | SGN 32 | PNCE 32 | Front cap mounting | Aluminium | F PNCE | 0.1 | ||||
|
|
|
2 | SGN 32 CR | PNCE 32 | Front cap mounting | Stainless steel AISI 316 | F PNCE | 0.2 | ||||
|
|
|
2 | SGN 32 MSD | PNCE 32 | Motor side drive mounting | Aluminium | F PNCE | 0.1 | ||||
|
|
|
2 | SGN 32 MSD CR | PNCE 32 | Motor side drive mounting | Stainless steel AISI 316 | F PNCE | 0.2 | ||||
|
|
|
2 | SGN 40 | PNCE 40 | Front cap mounting | Aluminium | 5700 | 0.14 | ||||
|
|
|
2 | SGN 40 CR | PNCE 40 | Front cap mounting | Stainless steel AISI 316 | 5700 | 0.3 | ||||
|
|
|
2 | SGN 40 MSD | PNCE 40 | Motor side drive mounting | Aluminium | 5700 | 0.14 | ||||
|
|
|
2 | SGN 40 MSD CR | PNCE 40 | Motor side drive mounting | Stainless steel AISI 316 | 5700 | 0.3 | ||||
|
|
|
2 | SGN 50 | PNCE 50 | Front cap mounting | Aluminium | 7600 | 0.26 | ||||
|
|
|
2 | SGN 50 CR | PNCE 50 | Front cap mounting | Stainless steel AISI 316 | 7600 | 0.48 | ||||
|
|
|
2 | SGN 50 MSD | PNCE 50 | Motor side drive mounting | Aluminium | 7600 | 0.26 | ||||
|
|
|
2 | SGN 50 MSD CR | PNCE 50 | Motor side drive mounting | Stainless steel AISI 316 | 7600 | 0.48 | ||||
|
|
|
2 | SGN 63 | PNCE 63 | Front cap mounting | Aluminium | 9600 | 0.35 | ||||
|
|
|
2 | SGN 63 CR | PNCE 63 | Front cap mounting | Stainless steel AISI 316 | 9600 | 0.7 | ||||
|
|
|
2 | SGN 63 MSD | PNCE 63 | Motor side drive mounting | Aluminium | 9600 | 0.35 | ||||
|
|
|
2 | SGN 63 MSD CR | PNCE 63 | Motor side drive mounting | Stainless steel AISI 316 | 9600 | 0.7 | ||||
|
|
|
2 | SGN 80 | PNCE 80 | Front cap mounting | Aluminium | 16000 | 0.68 | ||||
|
|
|
2 | SGN 80 CR | PNCE 80 | Front cap mounting | Stainless steel AISI 316 | 16000 | 1.49 | ||||
|
|
|
2 | SGN 80 MSD | PNCE 80 | Motor side drive mounting | Aluminium | 16000 | 0.68 | ||||
|
|
|
2 | SGN 80 MSD CR | PNCE 80 | Motor side drive mounting | Stainless steel AISI 316 | 16000 | 1.49 | ||||
|
|
|
2 | SGN 100 | PNCE 100 | Front cap mounting | Aluminium | 20000 | 0.93 | ||||
|
|
|
2 | SGN 100 CR | PNCE 100 | Front cap mounting | Stainless steel AISI 316 | 20000 | 2.16 | ||||
|
|
|
2 | SGN 100 MSD | PNCE 100 | Motor side drive mounting | Aluminium | 20000 | 0.93 | ||||
|
|
|
2 | SGN 100 MSD CR | PNCE 100 | Motor side drive mounting | Stainless steel AISI 316 | 20000 | 2.16 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D1 | D2 | D3 | D4 | R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
45 (±0.5) | 32.5 | 14 | 22 (±0.2) | 13 | 5 | 5.5 | 34 | Ø 10 (f7) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 10 | ||||
|
|
|
45 (±0.5) | 32.5 | 14 | 22 (±0.2) | 12 | 5 | 5.5 | 34 | Ø 10 (f7) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 10 | ||||
|
|
|
45 (±0.5) | 32.5 | 14 | 22 (±0.2) | 13 | 5 | 5.5 | 34 | Ø 10 (f7) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 10 | ||||
|
|
|
45 (±0.5) | 32.5 | 14 | 22 (±0.2) | 12 | 5 | 5.5 | 34 | Ø 10 (f7) | Ø 6.6 (H13) | Ø 30 (H11) | Ø 11 (H13) | 10 | ||||
|
|
|
52 (±0.5) | 38 | 16 | 25 (±0.2) | 16 | 5 | 5.5 | 40 | Ø 12 (f7) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 12 | ||||
|
|
|
55 (±0.5) | 38 | 16 | 25 (±0.2) | 15 | 5 | 5.5 | 40 | Ø 12 (f7) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 12 | ||||
|
|
|
52(±0.5) | 38 | 16 | 25 (±0.2) | 16 | 5 | 5.5 | 40 | Ø 12 (f7) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 12 | ||||
|
|
|
55 (±0.5) | 38 | 16 | 25 (±0.2) | 15 | 5 | 5.5 | 40 | Ø 12 (f7) | Ø 6.6 (H13) | Ø 35 (H11) | Ø 11 (H13) | 12 | ||||
|
|
|
65 (±0.5) | 46.5 | 21 | 27 (±0.2) | 16 | 5 | 6.5 | 45 | Ø 16 (f7) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 12 | ||||
|
|
|
65 (±0.5) | 46.5 | 21 | 27 (±0.2) | 17 | 5 | 6.5 | 45 | Ø 16 (f7) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 12 | ||||
|
|
|
65 (±0.5) | 46.5 | 21 | 27 (±0.2) | 16 | 5 | 6.5 | 45 | Ø 16 (f7) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 12 | ||||
|
|
|
65 (±0.5) | 46.5 | 21 | 27 (±0.2) | 17 | 5 | 6.5 | 45 | Ø 16 (f7) | Ø 9 (H13) | Ø 40 (H11) | Ø 15 (H13) | 12 | ||||
|
|
|
75 (±0.5) | 56.5 | 21 | 32 (±0.2) | 21 | 5 | 6.5 | 51 | Ø 16 (f7) | Ø 9 (H13) | Ø 45 (H11) | 15 (H13) Ø | 16 | ||||
|
|
|
75 (±0.5) | 56.5 | 21 | 32 (±0.2) | 20 | 5 | 6.5 | 51 | Ø 16 (f7) | Ø 9 (H13) | Ø 45 (H11) | 15 (H13) Ø | 16 | ||||
|
|
|
75 (±0.5) | 56.5 | 21 | 32 (±0.2) | 21 | 5 | 6.5 | 51 | Ø 16 (f7) | Ø 9 (H13) | Ø 45 (H11) | 15 (H13) Ø | 16 | ||||
|
|
|
75 (±0.5) | 56.5 | 21 | 32 (±0.2) | 20 | 5 | 6.5 | 51 | Ø 16 (f7) | Ø 9 (H13) | Ø 45 (H11) | 15 (H13) Ø | 16 | ||||
|
|
|
95 (±0.5) | 72 | 25 | 36 (±0.2) | 22 | 5 | 10 | 65 | Ø 20 (f7) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 20 | ||||
|
|
|
95 (±0.5) | 72 | 25 | 36 (±0.2) | 22 | 5 | 10 | 65 | Ø 20 (f7) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 20 | ||||
|
|
|
95 (±0.5) | 72 | 25 | 36 (±0.2) | 22 | 5 | 10 | 65 | Ø 20 (f7) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 20 | ||||
|
|
|
95 (±0.5) | 72 | 25 | 36 (±0.2) | 22 | 5 | 10 | 65 | Ø 20 (f7) | Ø 11 (H13) | Ø 45 (H11) | Ø 18 (H13) | 20 | ||||
|
|
|
115 (±0.5) | 89 | 25 | 41 (±0.2) | 27 | 5 | 10 | 75 | Ø 20 (f7) | Ø 11 (H13) | Ø 55 (H11) | 18 (H13) Ø | 22 | ||||
|
|
|
115 (±0.5) | 89 | 25 | 41 (±0.2) | 25 | 5 | 10 | 75 | Ø 20 (f7) | Ø 11 (H13) | Ø 55 (H11) | 18 (H13) Ø | 22 | ||||
|
|
|
115 (±0.5) | 89 | 25 | 41 (±0.2) | 27 | 5 | 10 | 75 | Ø 20 (f7) | Ø 11 (H13) | Ø 55 (H11) | 18 (H13) Ø | 22 | ||||
|
|
|
115 (±0.5) | 89 | 25 | 41 (±0.2) | 25 | 5 | 10 | 75 | Ø 20 (f7) | Ø 11 (H13) | Ø 55 (H11) | 18 (H13) Ø | 22 |
-
-
